Communications Wiring
The ECLYPSE User Guide provides extensive information and requirements to implement a BACnet IP network. It contains information about network
topology, wire length restrictions, cable type, device IP addressing, radio path planning (when the ECLYPSE Wi-Fi Adapter is connected to the con-
troller), etc. It can be downloaded from our website. For optimal performance, use Distech Controls category 5e network cable or refer to the ECLYPSE
User Guide for cable specifications.
Controllers are uniquely identified on the network by their MAC address. This identifier is printed on a label located on the side of the controller and on its
shipping box. Get a printed copy of the building’s floor plan. During controller installation, peel the MAC address stickers off of the shipping box and put it
on the floor plan where the controller has been installed. This MAC address is used as part of the controller’s factory-default Wi-Fi access point name
and its network hostname.
Bar Code
ID: MAC Address
For example, for a MAC Address of : 76:a5:04:cd:4a:d1
The factory-default name for the Wi-Fi access point is ECLYPSE-CD4AD1
The factory-default hostname is eclypse-cd4ad1.local
Label

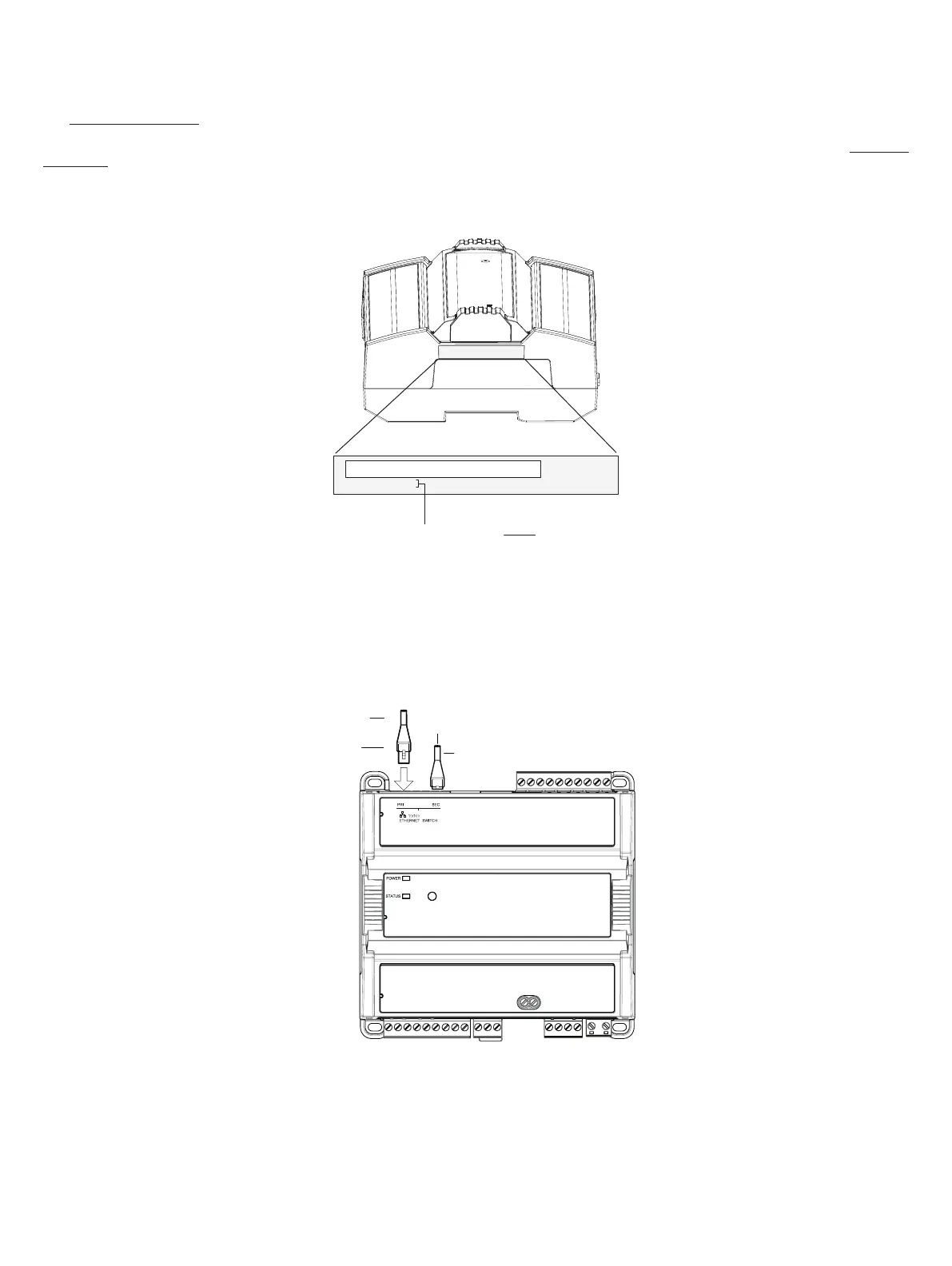

Figure9: MAC Address Label Location
There are two methods to connect to the controller: wired (Ethernet connection) or wireless (when the ECLYPSE Wi-Fi Adapter is connected to the con-
troller).
Wired Connection
Network connections can be daisy-chained.
To Next IP
Device
Cat 5
e
Network
Cable
To Router
/
Previous IP Device
RJ-
45
Connector
Figure10: Communications wiring
Wireless Connection
Once the ECLYPSE Wi-Fi Adapter has been connected to the controller, a Wi-Fi hotspot becomes available that allows you to connect to the controller’s
configuration Web interface with your PC.
On your PC’s wireless networks, look for an access point named
ECLYPSE-XXYYZZ
where
XXYYZZ
are the last 6 hexadecimal characters of the con-
troller’s MAC address (see above). The default password for the wireless network is:
eclypse1234
