Distech Controls ECLYPSE ECY-TU-203 User Manual

4 / 15
145.00
194.85
Front
Profile
5.71
7.67
Front
2.2456.88
Profile
Millimeters [Inches]
1.30
0.31
7.99
Back
5.07128.76
1.3033.04
33.04
5.08129.01
Back
0.31
7.99

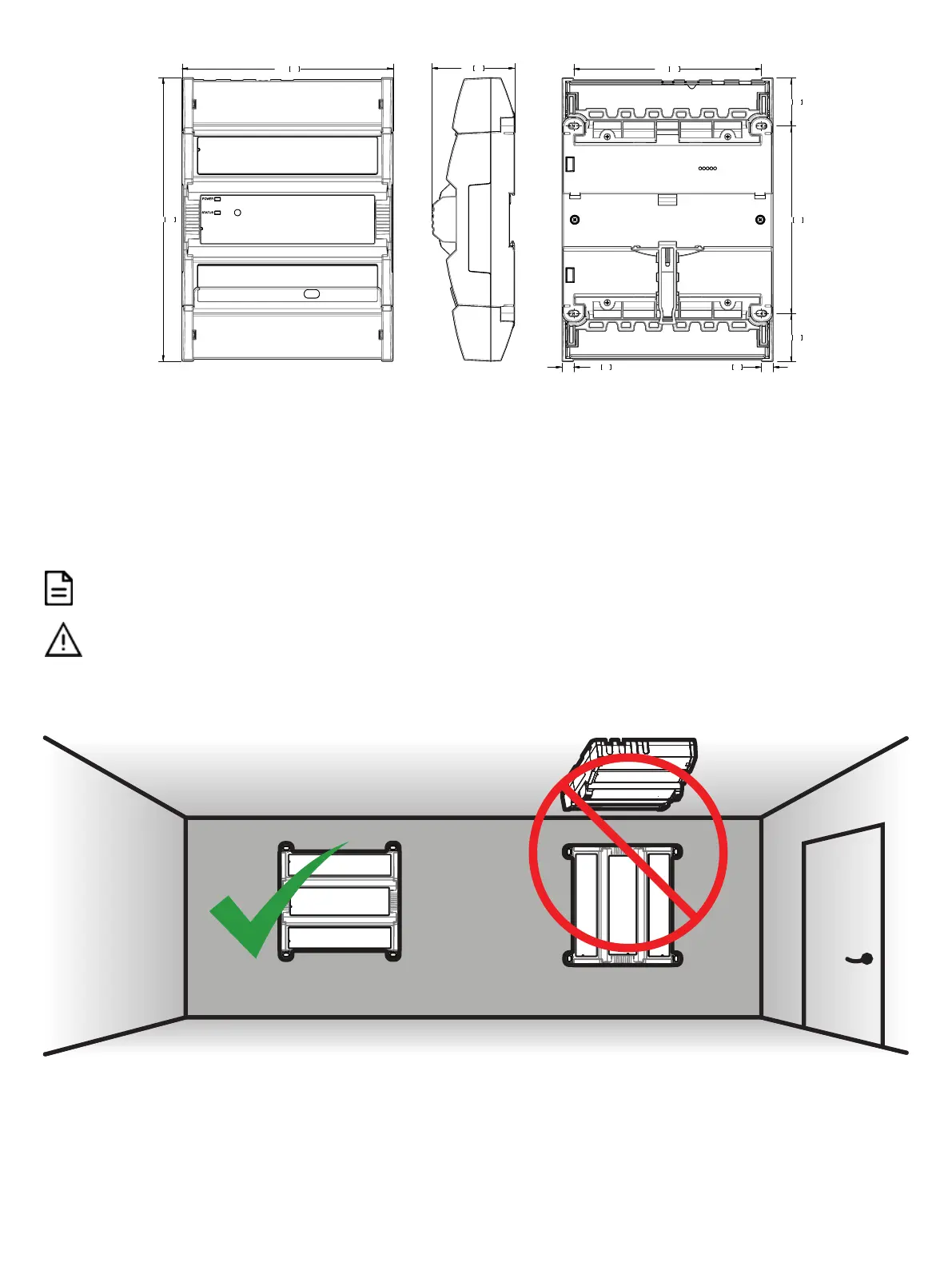

Figure2: Dimensions with terminal covers
Mounting Instructions
The controller can be mounted on a DIN rail for fast installation and easier maintenance. The controller also has four mounting holes to be mounted in a
panel or on a wall.
If the controller is to be installed out of an electrical box, it is a must to use the optional terminal block cover.
Ensure that the mounting surface can support the controller, DIN rail, and any site-supplied enclosure.
The controller must be mounted in a horizontal position as indicated in this guide to ensure proper airflow and
heat dissipation. Any other position may cause excess heat accumulation and may result in a damaged
controller.
Mounting Positions
The controller’s mounting orientation must be horizontal with controller’s back attached to a vertical wall surface.
Figure3: Permitted Mounting Position
