Distech Controls RT Series User Manual

6

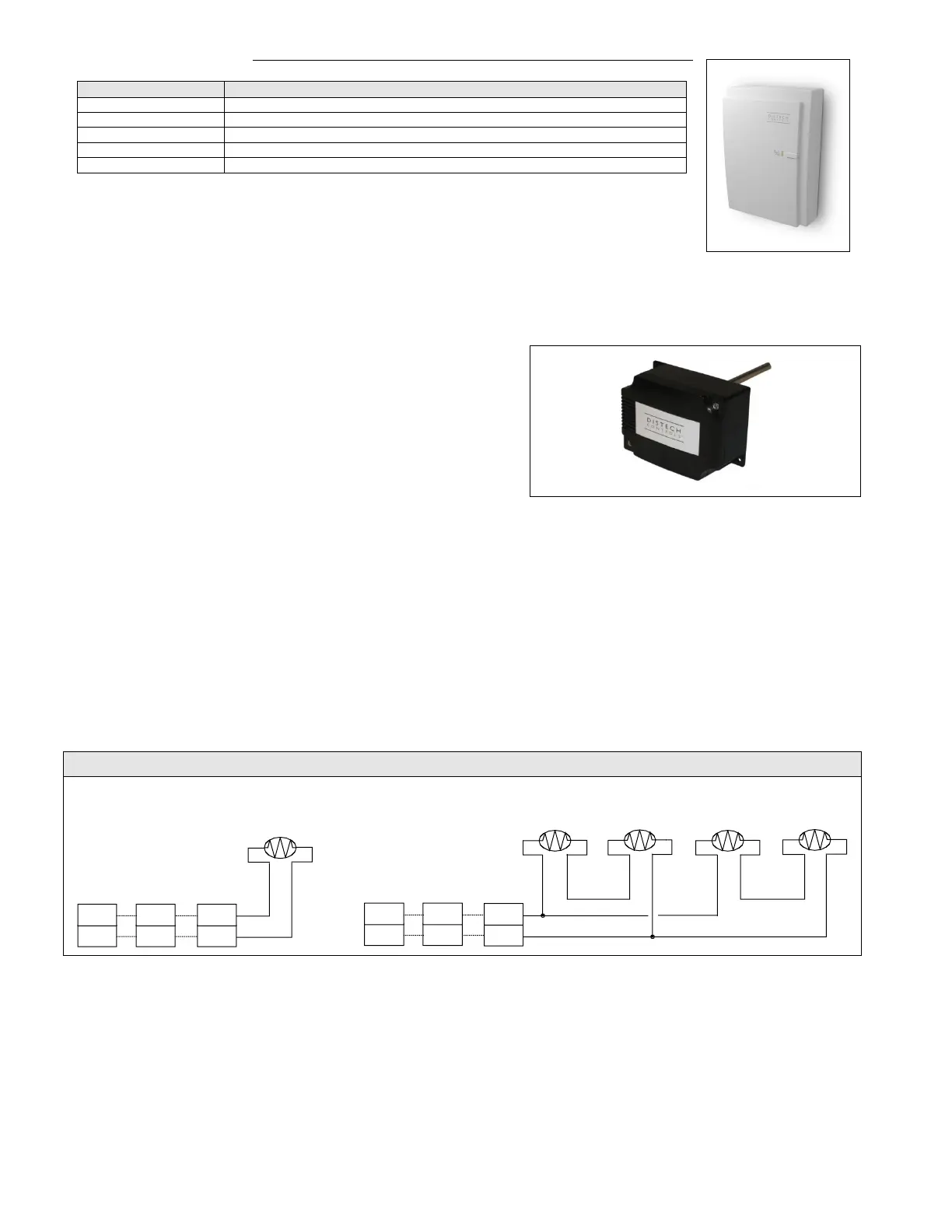

Remote sensor accessories
Model no.
Description
PDITE-SENSORX0
Wall mounted temperature sensor
PDITE-SENSOROX0
Wall mounted temperature sensor w/ override button and occupancy status LED
PDIGR-TE200F Series
Outdoor temperature sensor
PDIGR-TE200D Series
Averaging temperature sensor
PDIGR-TE200B Series
Duct mounted temperature sensor
PDITE-SENSOROX0, remote wall mount temperature sensors use 10K NTC thermistors.
This sensor can be used for:
• Various averaging combinations
• Optional occupancy led
• Optional override key
Fig.8 –
PDITE-SENSOROX0
PDIGR-TE200B SERIES, remote duct mounted temperature sensor.
This sensor can be used for:
• Remote return air temperature sensing with the sensor mounted on
the return air duct.
• Outside air temperature sensing with the sensor installed in the fresh
air plenum.
• Supply air temperature sensor
Fig.9 – PDITE-TE200B Series (shown with standard
ABS enclosure)
PDIGR-TE200D SERIES, remote averaging duct mounted temperature sensor c/w junction box.
This sensor can be used for:
• Remote averaging return air temperature sensing with the sensor mounted on the return air duct.
• Outside air temperature averaging sensing with the sensor installed in the fresh air plenum.
• Mixed air temperature averaging sensor for economizer models with the sensor in the mixing plenum.
PDIGR-TE200F SERIES, outdoor air temperature sensor
This sensor can be used for:
• Outside air temperature sensing with the sensor installed directly exposed to the elements.
• Sensor uses a weather resistant enclosure for outdoor applications
WIRING PDITE-SENSORX0, PDITE-SENSOROX0, PDIGR-TE200B Series, PDIGR-TE200D Series and PDIGR-TE200F Series
Remote wiring 1 sensor Remote wiring 4 sensors
10 K
10 K
10 K
10 K
10 K
Scom
MS
Scom
OS
Scom
RS
or
or
Scom
MS
Scom
OS
Scom
RS
or
or
(
