1330 Operator’s Manual Transport - 43
Freewheel
Freewheel
If trencher must be moved without engine running, this feature allows it to be wheeled manually.
1. Elevate left side of trencher with jackstand or
safety blocks.
2. Remove nut from left wheel hub.

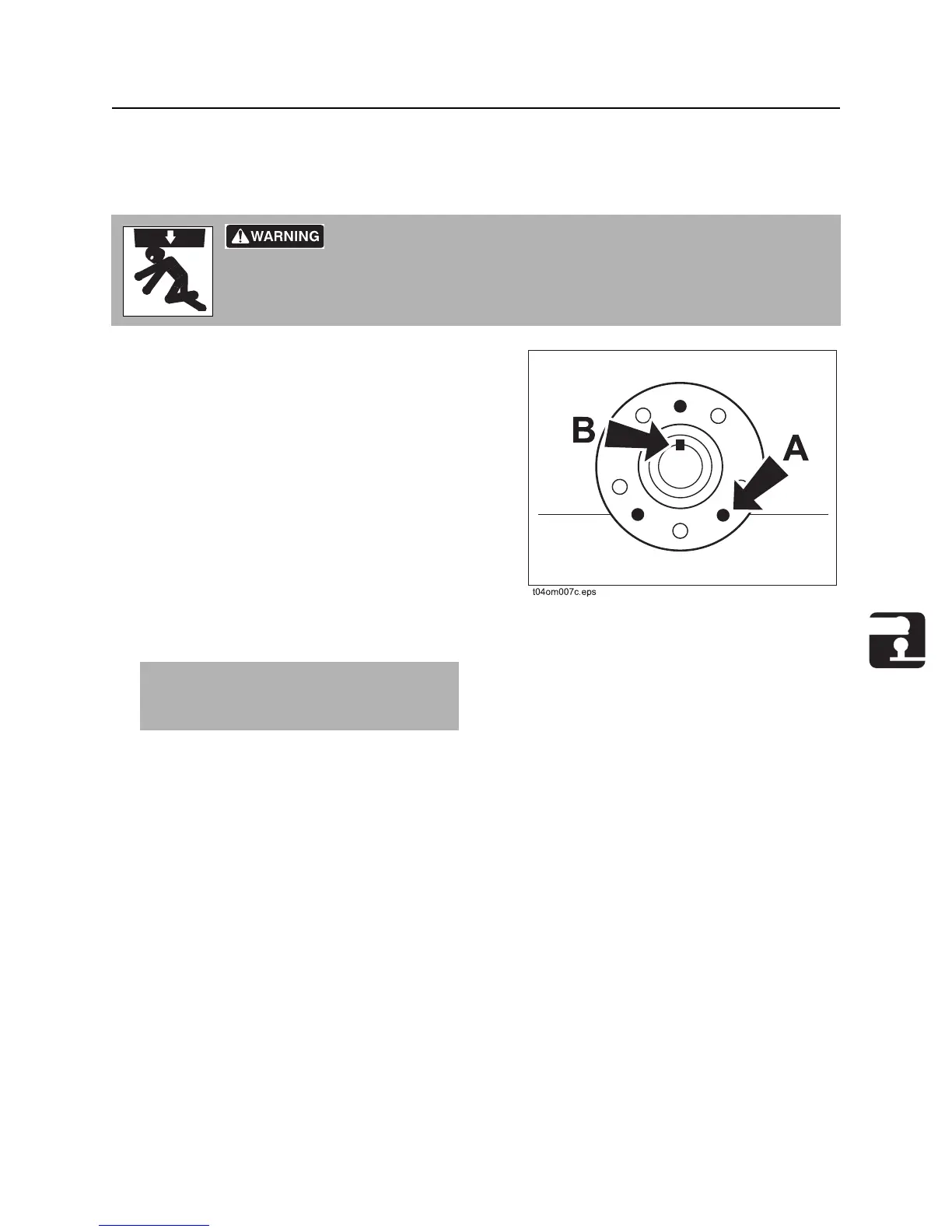

3. Horizontally align two of the three threaded holes
(A) in wheel hub with machine frame, as shown.
4. Insert bolts (supplied in operator’s manual
compartment) into threaded holes and tighten until
wheel is released from axle.
5. Remove key (B) from axle.
6. Replace wheel and hub, and tighten only enough
to keep hub on axle. Overtightening can lock hub
to axle.
7. Wheel trencher to a clear area of the jobsite.
Tow
Under normal conditions, unit should not be towed. If unit breaks down and towing is necessary:
• follow “Freewheel” instructions
• tow for short distances at less than 1 mph (1.6 kph)
• do not tow for more than 100 ft (30 m)
• attach chains to indicated tow points facing towing vehicle
• use no more than 1,300 lb (5800 N) of towing force
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
NOTICE: Do not freewheel the trencher
more than 100 ft (30 m). Damage to wheel
hub or axle will occur.
