1330 Operator’s Manual Specifications - 75
CMW

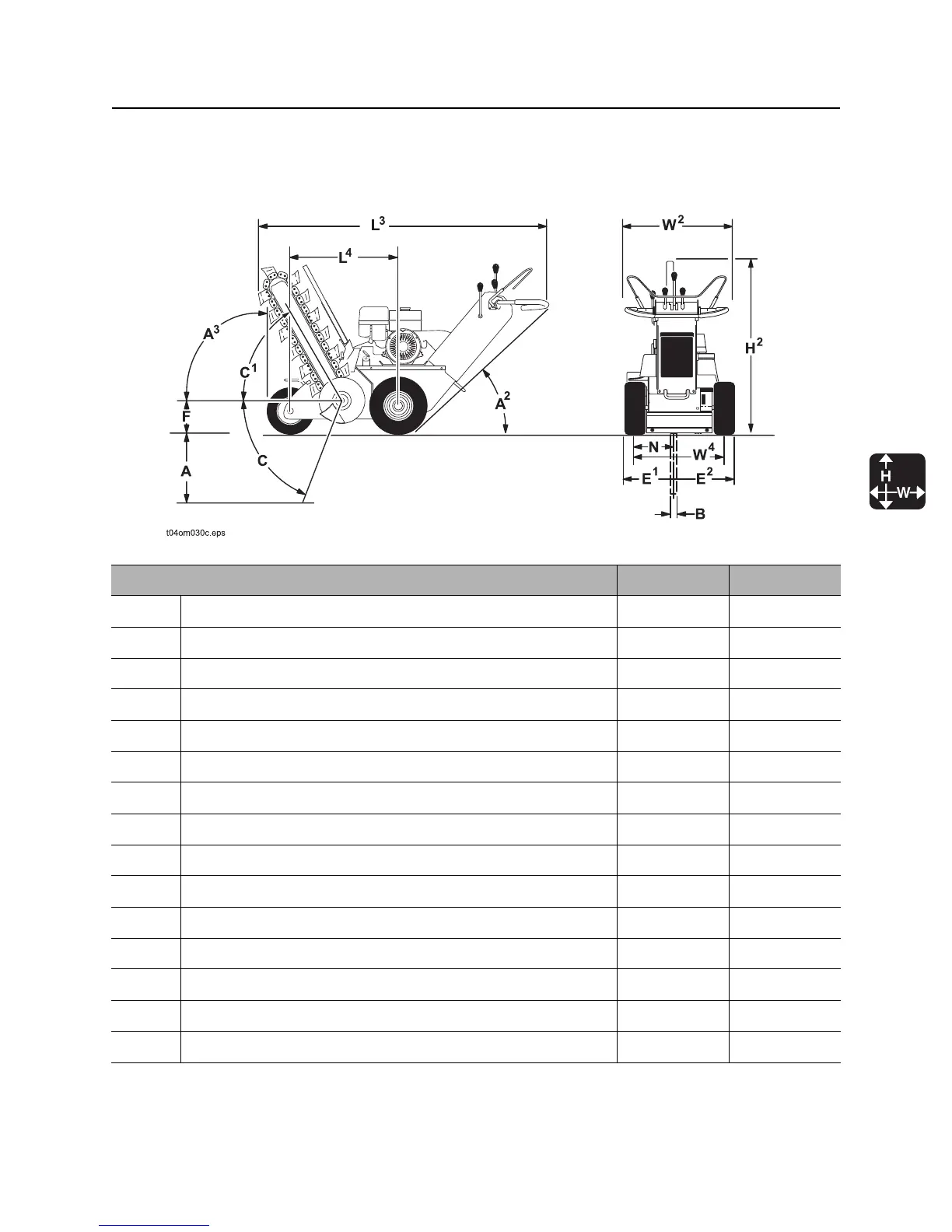

Specifications
Unless otherwise noted, dimensions are based on 16x6.50x8 tires, 6-in (150-mm) pivot, and 24-in (610-mm) boom in transport
position.
Dimensions U.S. Metric
A Trench depth, maximum 36 in 915 mm
B Trench width 4.3 - 6 in 110-150 mm
C Boom travel down 60° 60°
C1 Boom travel up 60° 60°
F Headshaft height, digging chain 8.6 in 220 mm
L3 Length 84 in 2.1 m
W2 Width 33 in 840 mm
H2 Height 47 in 1.2 m
W4 Tread 26 in 660 mm
A2 Angle of departure 35° 35°
L4 Wheelbase 32 in 810 mm
E1 Centerline trench to outside edge of machine, left 15 in 381 mm
E2 Centerline trench to outside edge of machine , right 18 in 457 mm
N Spoil discharge reach 10.6 in 270 mm
A3 Angle of approach 85° 85°
