10
The 1
st
batch of Freestyle V1 VTX, supports 2S-4S, A BEC supporting 2S-6S is included.
The 2
nd
batch and later, supports 2S-6S, and the BEC is not included.
Important Notes:
● Do not directly power this VTX with a 5S/6S battery for the 1
st
batch.
o Use 2S-4S VBAT, or included BEC, or FC with built-in BEC
o The Freestyle VTX consumes up to 15W. If it is connected with FC that has a built-in BEC output,
make sure the BEC can provide enough current. For example, if the BEC provides 10V, it needs a
minimum of 1.5A current output.
● Removing the heat sink is not recommended because it is part of the design.

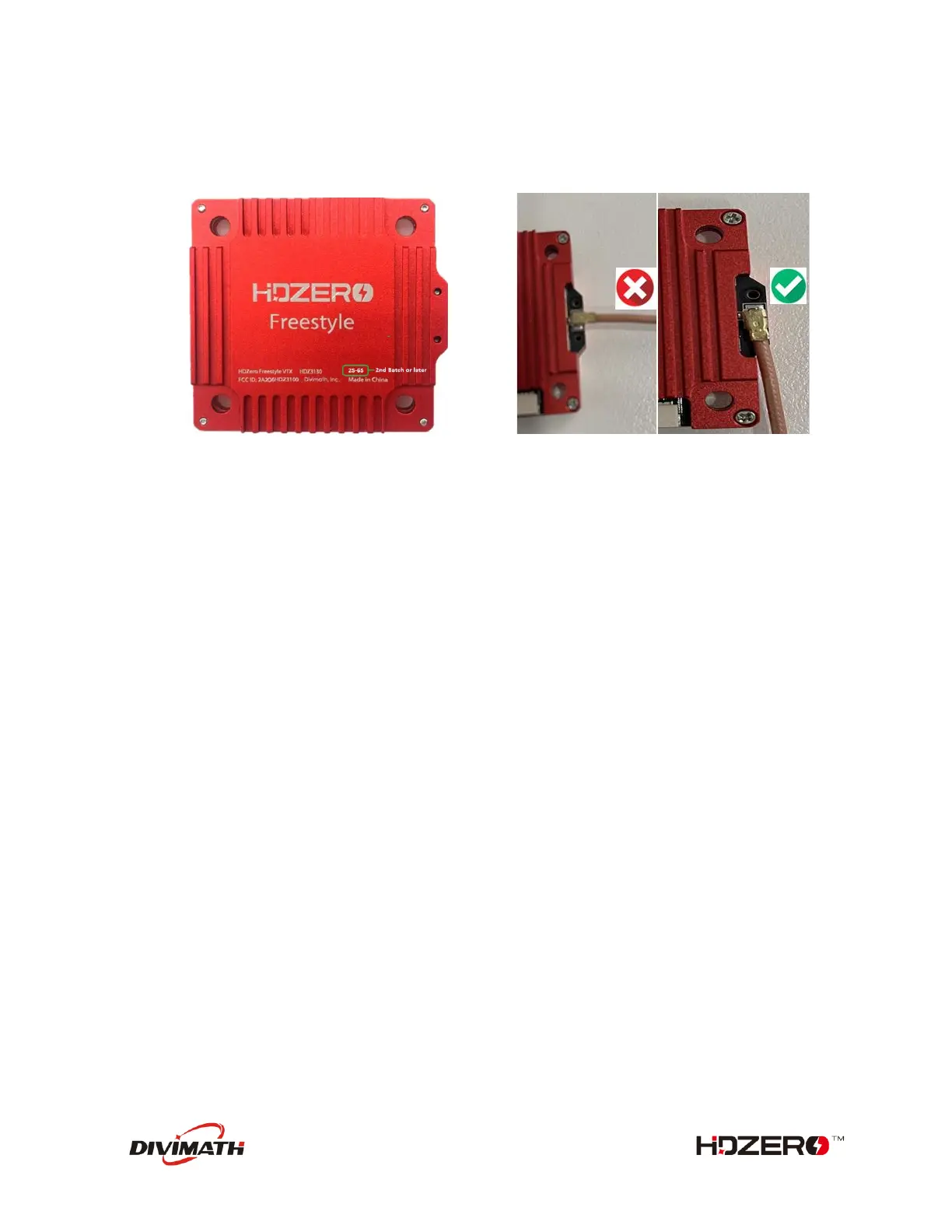

● Rotate the antenna as shown above before detaching it to reduce the risk of peeling off the UFL
connector.
