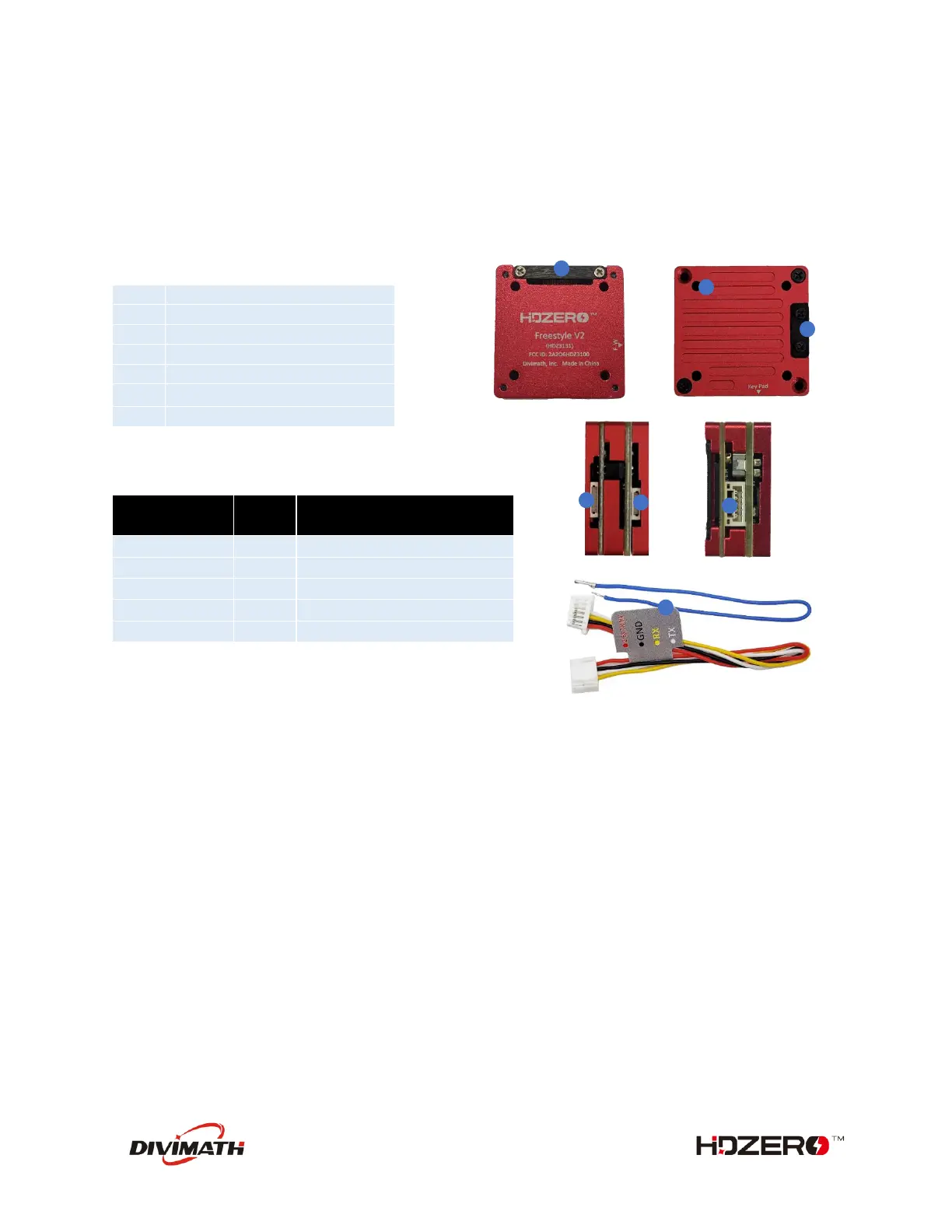

HDZero Freestyle V2 Video Transmitter
The HDZero Freestyle V2 VTX is our 2nd generation 5.8GHz digital video transmitter which can be fitted
into most 3-5-inch HD drones. All sockets are well protected by the CNC case that provides durability, RF
shielding and improved signal integrity. A wire harness is included for solderless connection for power
and MSP UART port. The antenna and MIPI cable are secured by the included retention bar and screws.
1
Secured MIPI Connector
2
M2 Mounting Hole
3
Secured U.FL Connector
4
Keypad Connector
5
FW Update Connector
6
Power(7-25V)/UART Connector
7
Power/UART Harness
Power/UART
Connector
Cable
Color
Connected with
Ground
Black
Ground
Power
Red
Power
RX
Yellow
FC.TX
TX
White
FC.RX
SA
Blue
FC.SA (TX), Optional
1
2
5
6
7
6
3
4
