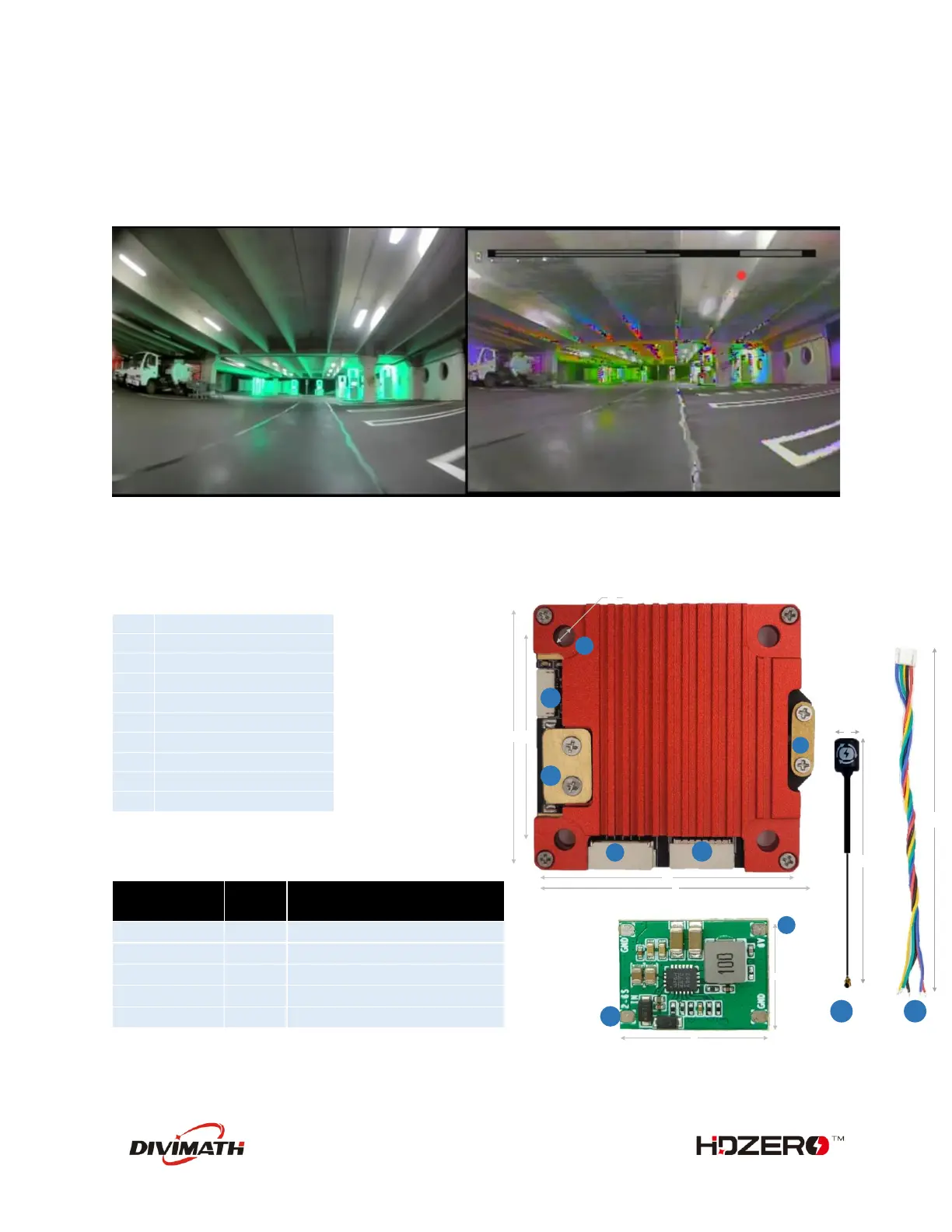

HDZero Freestyle V1 Video Transmitter(EOL)
The HDZero Freestyle V1 VTX offers unprecedented range and performance for the HDZero 5.8GHz
digital FPV system. With its high maximum output power and robust construction, this VTX is perfect for
freestyle and long-range builds.
With a tested maximum range of more than 18 miles, the Freestyle V1 VTX will transmit a digital FPV
feed as far as you’re willing to fly. Not interested in long range? You’ll also see better performance in
urban environments and around obstacles, with none of the color noise or multipath interference issues
of analog video.
1
Secured MIPI Connector
2
Keypad Connector
3
M3 Mounting Hole
4
Secured U.FL Connector
5
FW Update Connector
6
Power/UART Connector
7*
BEC Power in (2S-6S)
8*
BEC Power Out Pad
9
RHCP Antenna
10
Power/UART Harness
*: BEC is included for first Batch only.
*: The 1
st
batch supports 4S MAX.
Power/UART
Connector
Cable
Color
Connected with
Ground
Black
Ground
Power
Red
Power*
RX
Green
FC.TX
TX
Yellow
FC.RX
SA
Blue
FC.SA (TX), Optional
10
105
150
9 10
40
42
40
3.4
1
2
3
4
5
6
30.5
20
14
7
8
