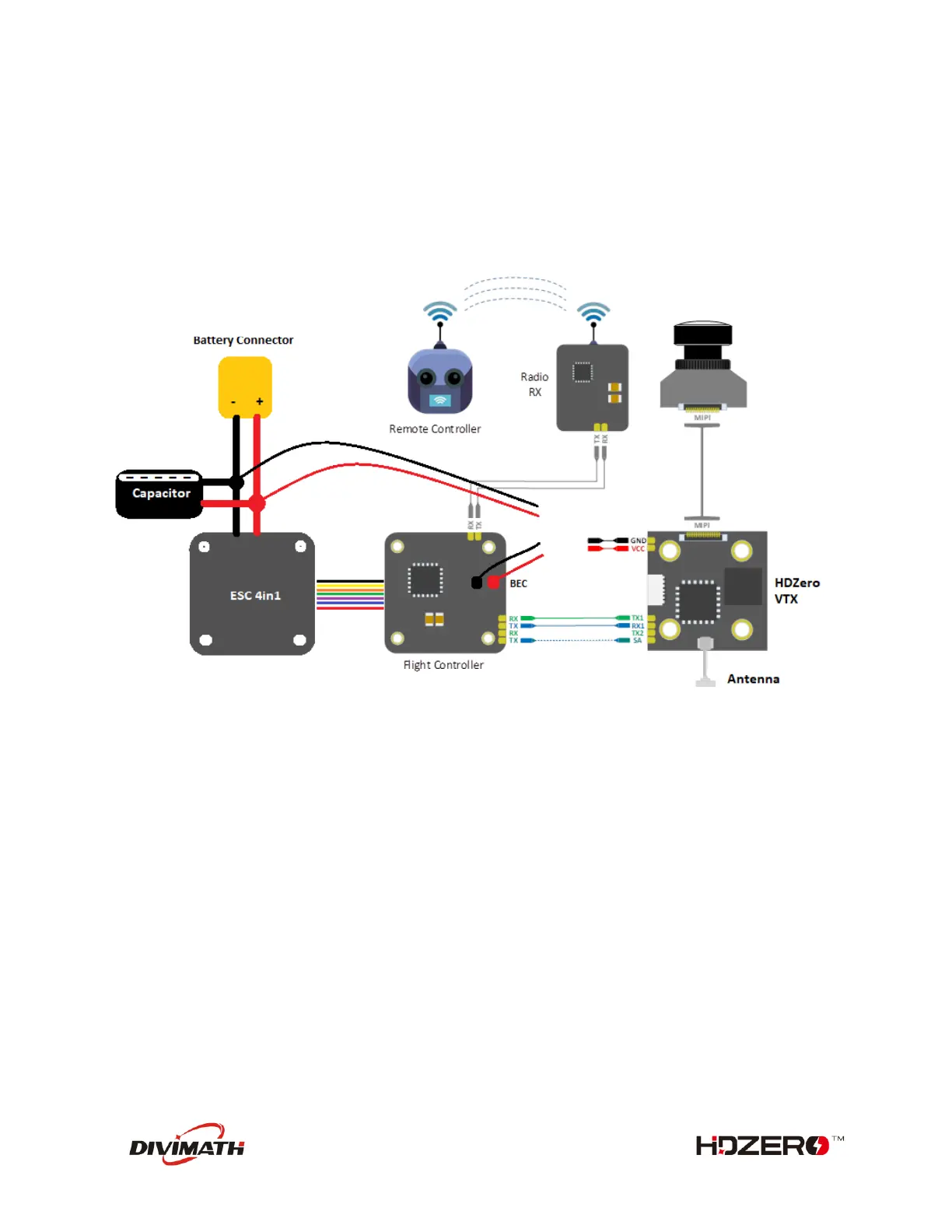

HDZero VTX Installation Guide
Notes:
- VTX can be powered by VBAT or BEC. Check each VTX’s power requirement above;
- Use of capacitor is mandatory for HDZERO VTX;
- One UART is needed for OSD, Camera, VTX menu, MSP VTX;
- Never apply power on VTX without antenna installed and secured;
- Use RHCP antennas to match with SharkByte VRX RHCP patch antennas;
- Some VTXes do not have an SA pin, and they don’t support SmartAudio.
