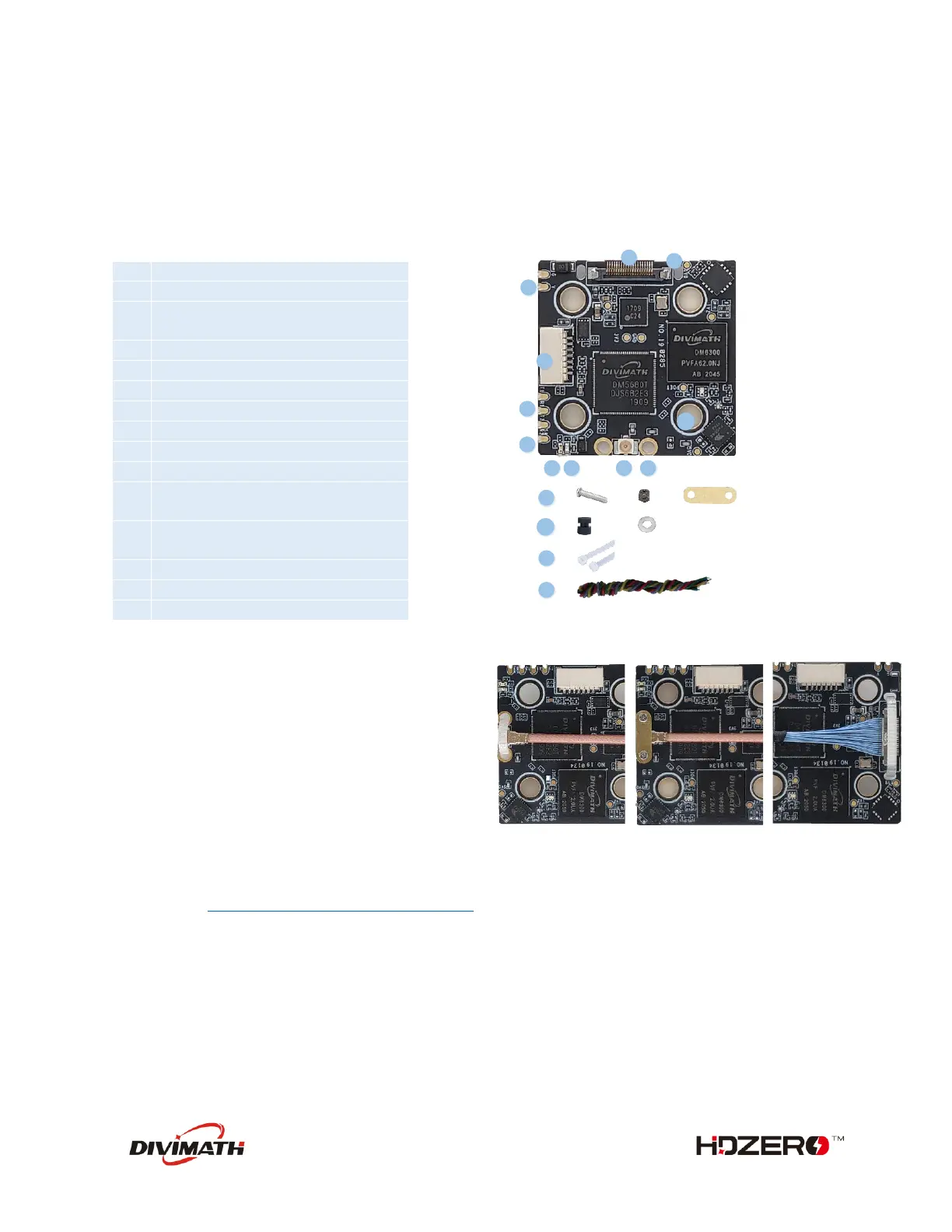

HDZero Race V2 Video Transmitter (EOL)
The HDZero Race VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mW on 5.8GHz. It
works with the Shark Byte RX5.1 goggle module to transmit video, and with a remote controller to wirelessly
control the parameters for the transmitter and camera.
The power input range is 7V – 17V.
1
Power In (G=Ground, V=7-17V)
2
T1/R1 UART Connection to FC
3
T2, Reserved,
R2/SA, SA Pin
4
u.FL Antenna Connector
5
u.FL Antenna Retention Holes
6
MIPI connector
7
MIPI connector retention Holes
8
Firmware Update Connector
9
Power on LED (red)
10
Status LED (blue)
11
u.FL Antenna Retention
Screws/Nut/Plate
12
Rubber Grommet (M4 to M3),
1mm O-Ring
13
Zip ties
14
Connecting wire
15
20x20 M4 mounting holes
Mounting a u.FL antenna or pigtail
There are 2 methods to mount the antenna on VTX:
- Use included retention screws, nuts and plate;
- Use included zip-ties.
Connecting MIPI cable
Use the included zip-tie to secure MIPI cable and
protect MIPI connector.
Notes:
- Read first: General Consideration for VTX Installation
- Make sure to use a wider top plate to fully cover this VTX for protection.
1
2
3
4 5
6
7
8
9
10
11
12
14
13
4x 4x 1x
8x 8x
4x
1x
15
