Chapter 2: Camera Configuration

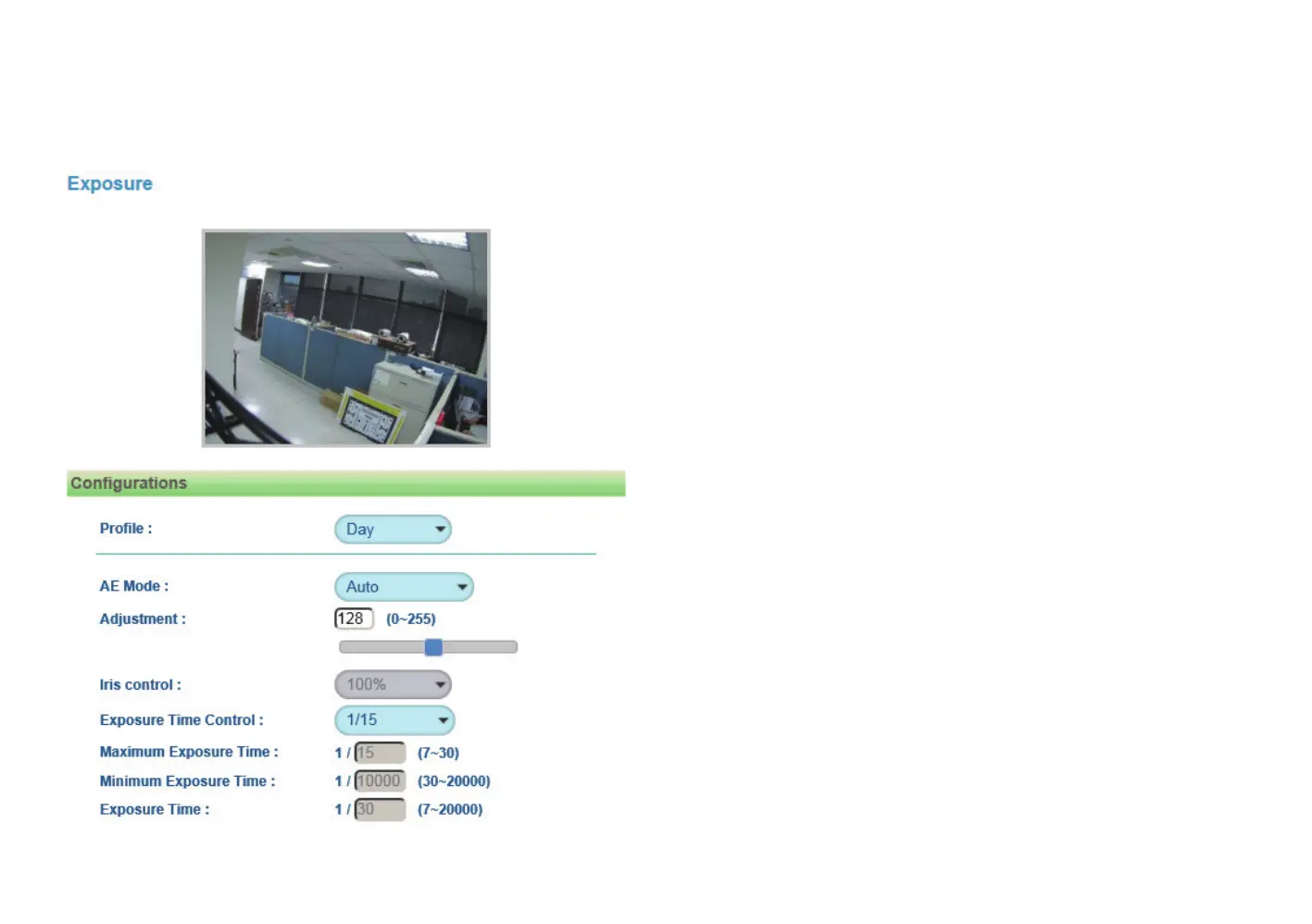

Image - Exposure
Configurations
Assists users to set up one Day profile and one Night profile.
Profile
Selects which profile (Day or Night) to configure.
AE Mode
The available options are Auto, Iris priority, Shutter priority, 50Hz, 60Hz
and Lock.
If Lock is selected, then Exposure Time Control, Gain Control and BLC cannot
be edited. Only Exposure Time can be edited (the range is 1/7~1/20000).
Adjustment
Adjusts the weighting from 0~255. Users can enter the value or adjust it
through the slider bar.
Exposure Time Control
The available options are OFF, 1/30, 1/15, 1/7.5 and User Define.
Select User Define to enter the values of Maximum Exposure Time (the
range is 1/7~1/30) and Minimum Exposure Time (the range is 1/30~1/20000)
manually.
Exposure Time
The range is 1/7~1/20000. It can only be edited when Lock is selected as
the AE Mode.
