33
Idler Weldment
“L” Rod
Idler Shock
Hex Nut
3
4
Tighten or
Loosen
Hex Nut to
achieve
this
42” Zeeter
Mower Deck Serpentine Belt
Electric Clutch - P/N 6109

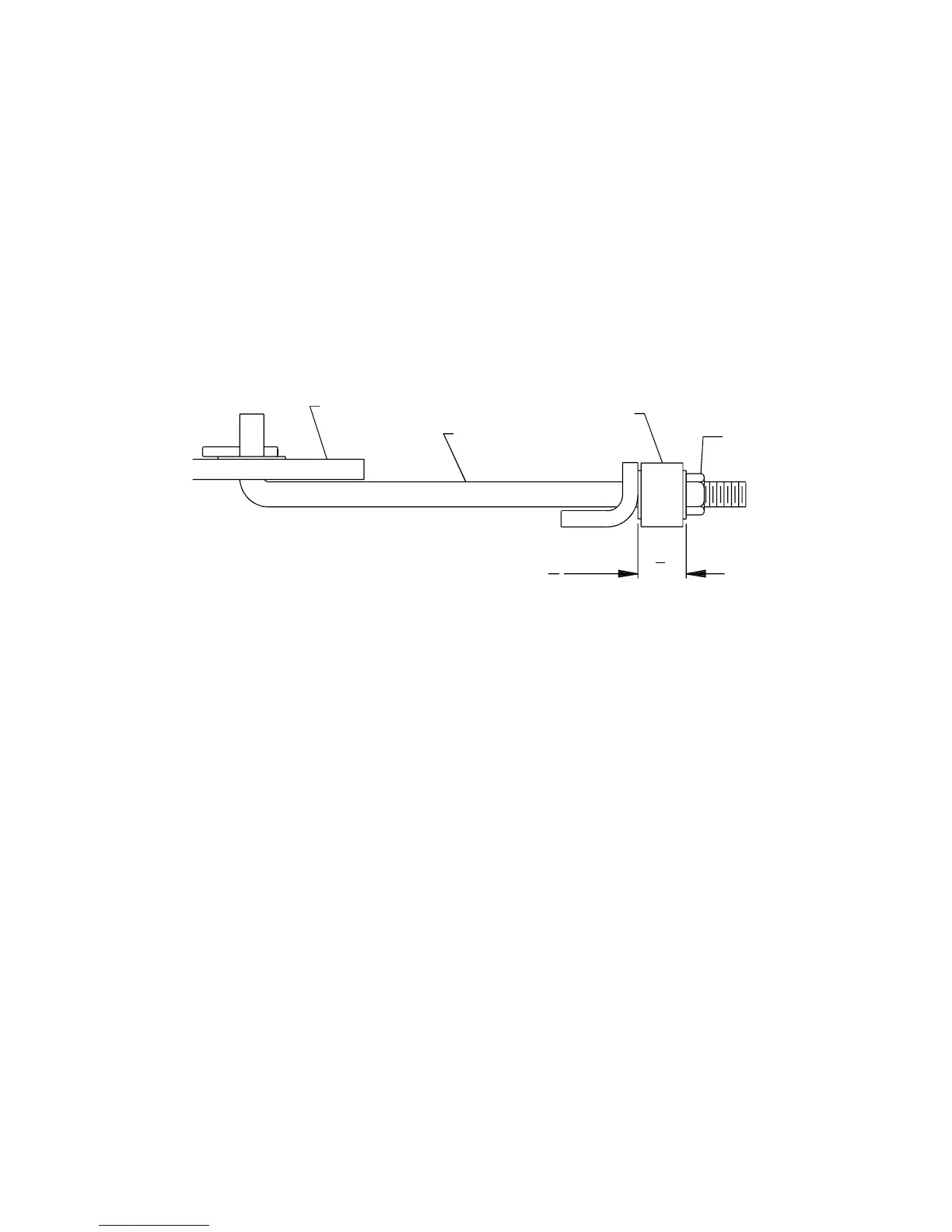

Adjust idler shock mount per diagram.
Engine to Mower Deck Belt - P/N 5861
No adjustment required. Correct belt tension is maintained
through a fixed engine location and a spring loaded idler
system. A pulsing movement of the belt idler will be
observed both during engagement of the electric blade clutch
and actual operation of the mower deck.
Note: Engagement of the electric blade clutch switch may
produce a sharp high pitched chirp or squeal as the belt
tension loading is absorbed by the idler system. This is
normal and not a sign of failure.
