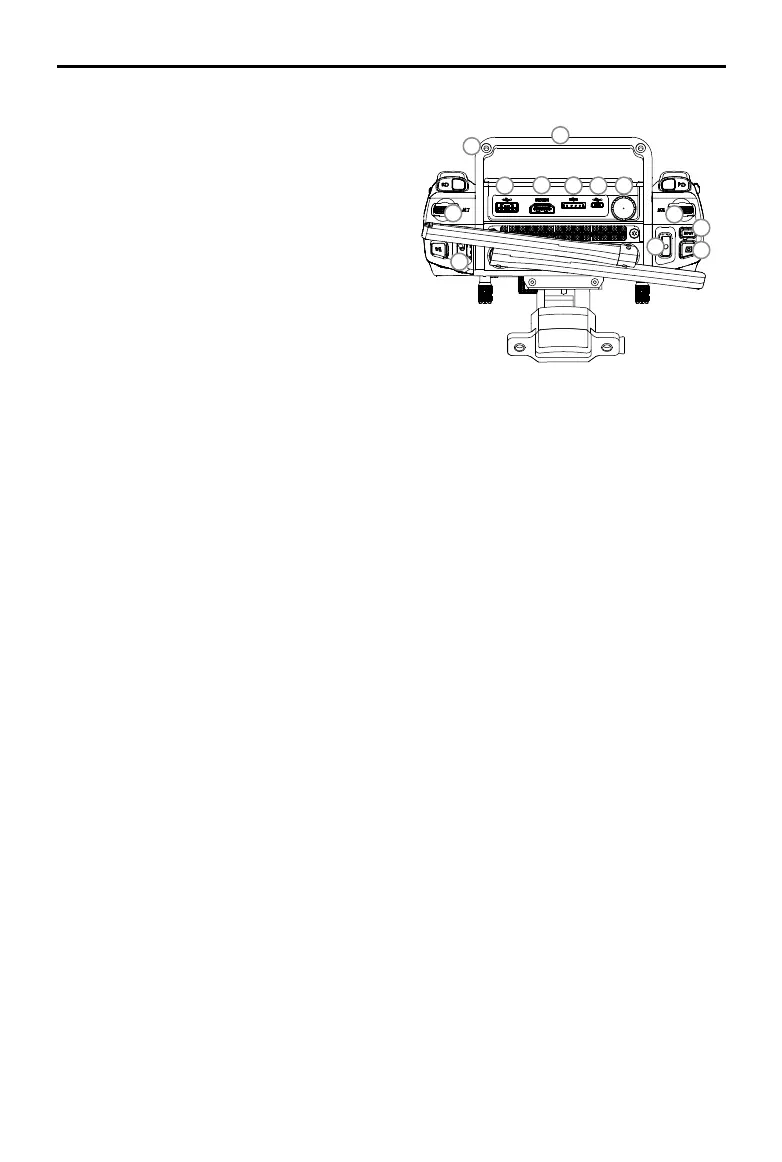

21. Battery Release Button
22. WB37 Intelligent Battery
23. Battery Level LEDs
Display the battery level of the Intelligent
Battery.
24. Battery Level Button
Press to show the battery level.
25. Remote Controller Support Rig
26. Handle Bar
27. Patch Antenna Mounting Holes
Used to mount the Cendence Patch Antenna.
28. Left Dial
Controls gimbal tilt.
29. Flight Mode Switch
 SwitchbetweenP-mode,S-mode,and
A-mode.
30. USB Port
Connection to mobile device for DJI GO 4
appifusedathird-partymobiledevice.
31. HDMI A Port (for Video Output)
HDMI A Port is for video output.
32. CAN Bus Port
Used to connect external devices.
33. Micro USB Port
 Usedtoupdatermware.
1
2
3
4
5
6
9
8
7
11
10
13
12
14
16
15
17
19
18
18
20
21
22
23
24
25
26
27
28
29
30
17
31
3032 33 34
35
36
37
38
17
34. SDI Port (for Video Output)
Used for video output.
35. Right Dial
Used to control gimbal pan.
36. Auto Focus Button
Press to focus automatically.
37. Record Button
Press to start recording video. Press again
to stop recording.
38. Shutter Button
Press to take a photo. Photos can also be
captured during video recording.
