UsingtheWCH2ChargingHub,chargingtimeisapproximately1hourand11minutes(foronebattery).
USBpowersupplyportcanbeusedtochargethemobiledeviceof5V/2A.
Refer to the WCH2 Charging Hub User Guide for more details.

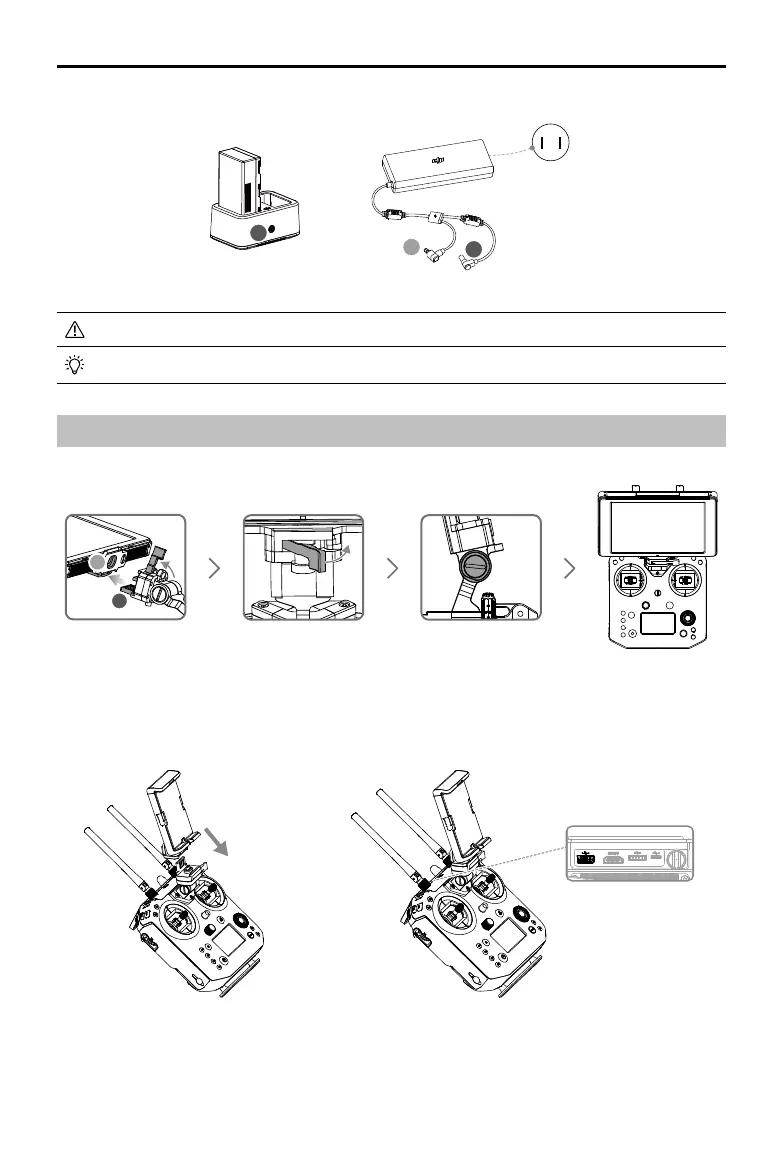

Mounting the Monitor to the Remote Controller
Mounting the DJI CrystalSky Monitor
DJICrystalSky7.85inchisusedasexampleinthisguide.
Ensure that Part B is
unlocked. Install Part B
into Part A.
Lock the Mounting
Bracket.
Lock the Mounting
Bracket.
Use a coin to adjust
the tightness of the
pitch axis.
B
A
Mounting the Third Party Mobile Devices
Forother mobile devices (e.g.iPhones,iPads),theCendenceMobileDeviceHolder and an
appropriateUSBcablearerequired.
B
A
B
Unlock the Mounting Bracket and
mount the Mobile Device Holder.
Thecharginghubblinksgreenwhilechargingandturnssolidgreenwhenchargingisnished.
Power Qutlet
100~240 V
(50Hz/60Hz)
Attach your mobile device, then tighten the clamp to secure it. Connect your mobile device to the
remote controller with a USB cable. Plug one end of the cable into your mobile device, and the
other end into the USB port on the back of the remote controller.
