Powering on the Dock

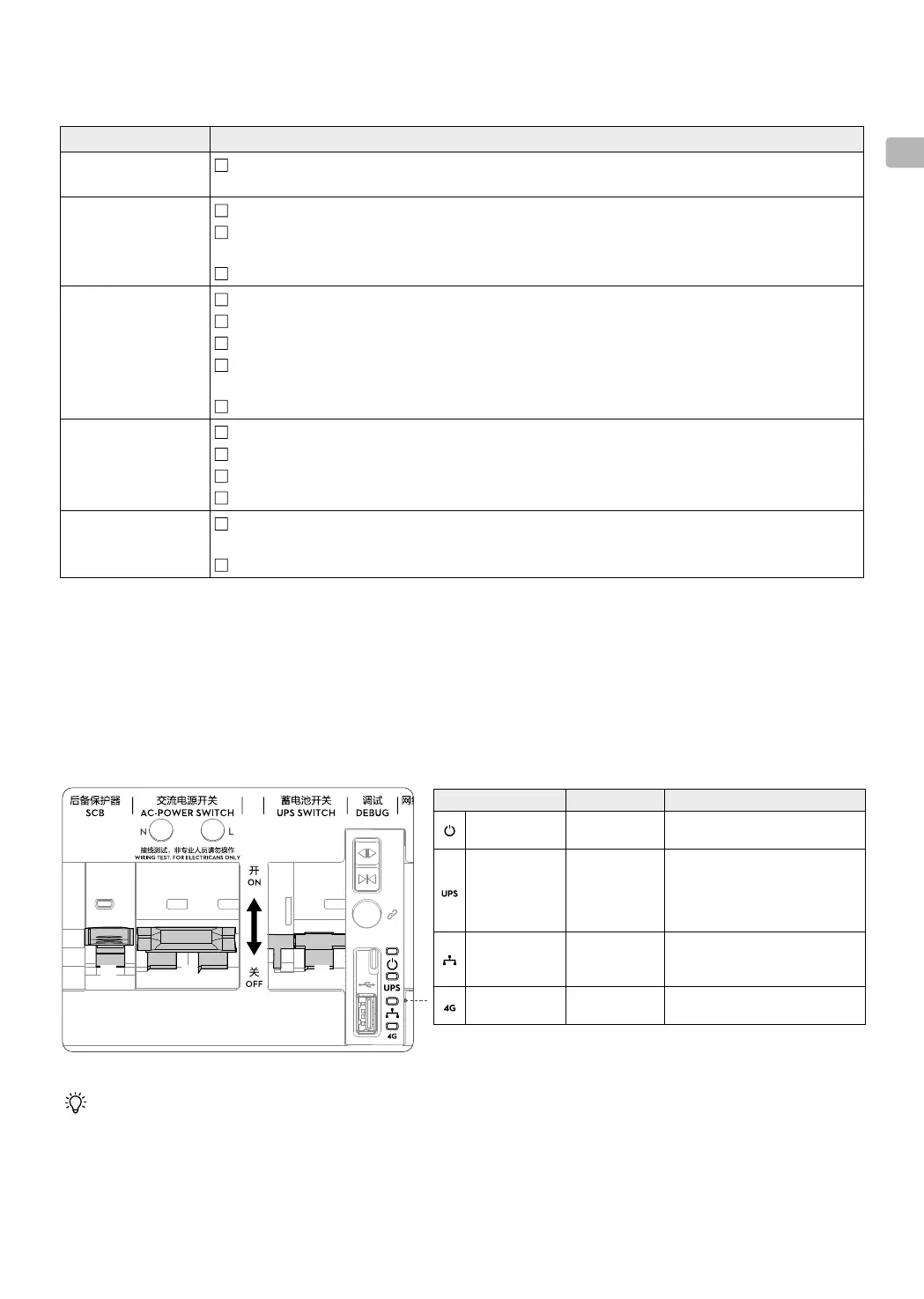

Pre-Powering On Checklist
Checklist Description
Earth Wire The two ends of the earth wire have been properly connected, and the screws have
been tightened securely.
Ethernet Cable All parts of the Ethernet connector have been tightened securely.
A corrugated tubing plug has been properly used to seal the gap between the
corrugated tubing and the Ethernet connector.
The Ethernet connector has been inserted to the dock securely.
Power Cable The wire connection test has been performed and the wire sequence is correct.
The insulation layer of the power cable has been properly covered by the tail nut.
All parts of the power connector have been tightened securely.
A corrugated tubing plug has been properly used to seal the gap between the
corrugated tubing and the power connector.
The power connector has been inserted into the dock securely.
The Dock The dock has been installed and is stable with a tilt angle of less than 3 degrees.
The inside of the dock is clean and tidy, without any dust or dirt, or items left inside.
The emergency stop button of the dock has been properly pulled out and released.
The landing pad surface is clear of any metal objects.
The Surrounding
Environment
The area around the dock has been cleared of packaging materials such as cartons,
foam, and plastic.
No obstacles block the dock covers when they are opened.
Powering On and Checking Operation
1. Make sure the upstream main switch in the user distribution box has been turned on. Turn on the surge
protector circuit breaker (A), AC power switch (B), and backup battery switch (C) in the electrical cabinet in
sequence.
2. Within 30 seconds, the electrical cabinet status indicators should display as follows. Otherwise,
troubleshooting is to be performed.
• Make sure the AC power switch and backup battery switch are both turned on.
Status Indicators Normal States Description
Power
Indicator
Solid red AC power supply is normal.
Backup Battery
Indicator
Solid blue
Backup battery is full or is
supplying power to the dock.
Blinks blue
slowly
Backup battery is charging.
Wired Network
Indicator
Blinks green
quickly
The Ethernet cable is connected
and has data transfer with the
dock.
4G Network
Indicator
Blinks green
quickly
4G network is connected and has
data transfer with the dock.
