dji Goggles User Manual

Installation and Wearing

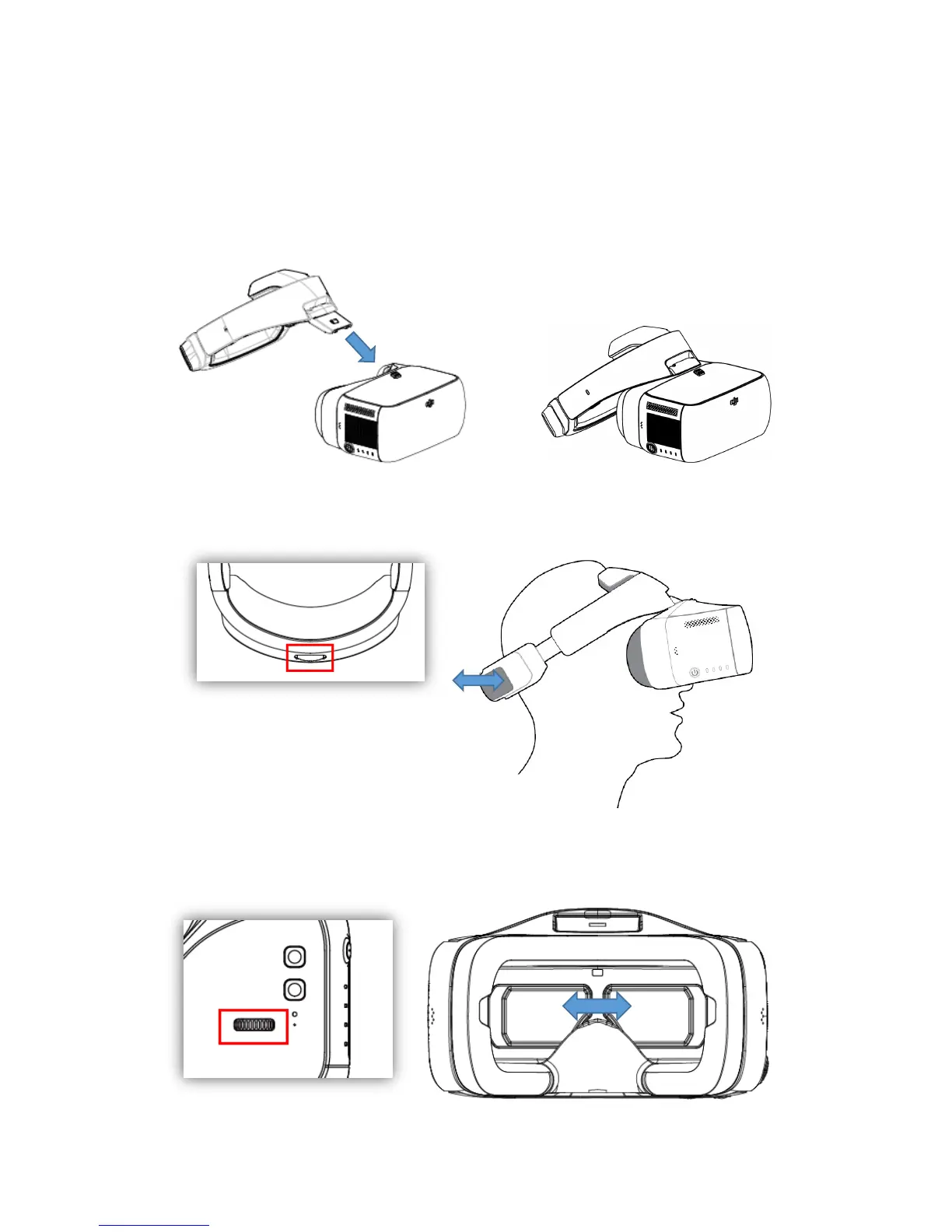

1. Insert the Strap Buckle into the slot above the lenses until you hear a click. Check
that it has been securely fastened.
2. Align the lenses over your eyes and pull the strap down. Adjust the Strap Knob
fit the Goggles snugly and comfortably.
3. Turn the IPD Knob to adjust the distance between the lenses until images are
aligned.

dji Goggles Specifications

Display

screen size	5 inch × 2
screen resolution	3840 × 1080 (single screen: 1920 × 1080)
live view modes	1080p30, 720p60, 720p30

Power

battery capacity	9440 mAh
charger input	100-240 VAC, 50 / 60 Hz, 0.5 A
charger output	5 V 3 A / 9 V 2 A / 12 V 1.5 A

Operating Environment

operating temperature range	32° to 104° F (0° to 40° C)
communication frequency	2.4 GHz

Weight and Dimensions

weight (DJI Goggles Body)	495 g
weight (Headband)	500 g
dimensions (DJI Goggles Body)	195 × 155 × 110 mm
dimensions (Headband folded)	255 × 205 × 92 mm
