6Preparing the Range Extender
The PHANTOM 2 VISION+ range extender is a wireless communication device that operates within the 2.4 GHz
frequency band and is used for extending the effective range of communication between a mobile device
(Smartphone) and the PHANTOM 2 VISION+. In an open unobstructed area, the transmission distance can reach
up to 500 meters, but is usually affected by the surrounding environment, such as trees, buildings and other
sources of the same frequency. Before every flight, it is suggested that you ensure the range extender functions
properly. Otherwise you may experience a communication issue with the mobile device and the PHANTOM 2
VISION+.
Each range extender has a unique MAC address and network name (SSID), details of which are printed on the label
as ‘Phantom_XXXXXX’. The ‘XXXXXX’ represents the last 6 letters or numbers of the MAC address for the range
extender, users can rename the “XXXXXX” part in DJI VISION App.

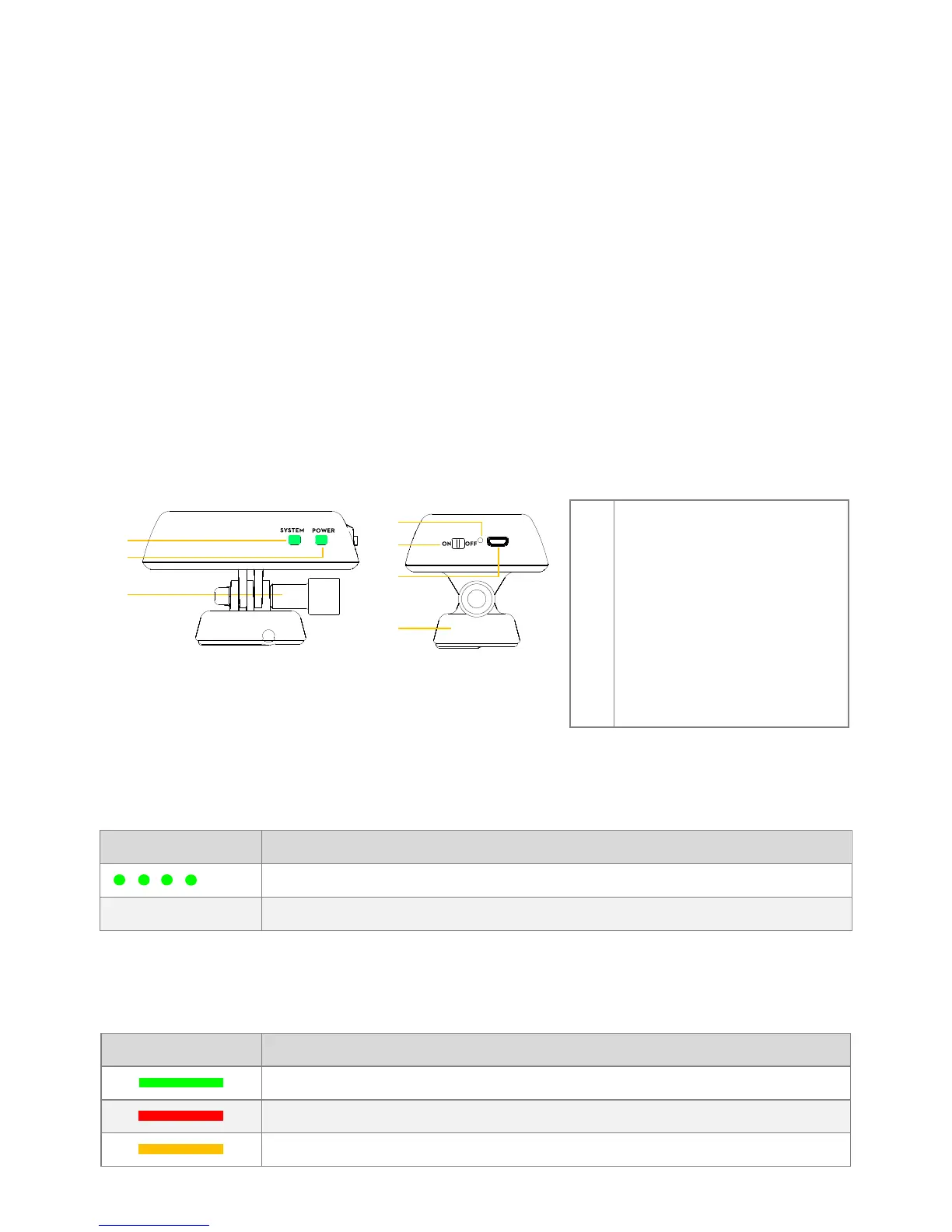

6.1 The Range Extender
[1]
[2]
[3]
[7]
[6]
[5]
[4]
Front View Right View
[1]
[2]
[3]
[4]
[5]
[6]
[7]
SYSTEM Indicator
POWER Indicator
Lock-screw
Reset Button
Power Switch
Charging Port(Micro-USB port)
Mounting Bracket
SYSTEM Indicator
Tells you the Wi-Fistatus of range extender.
SYSTEM Indicator
Description
The Wi-Finetwork is functioning normally.
Off
The Wi-Fi network is functioning abnormally.
Power Indicator (POWER)
Tells you the power status of range extender.
POWER Indicator
Description
The range extender is working normally or completely charged.
Low voltage alert, a re-charge is required.
The range extender is charging
