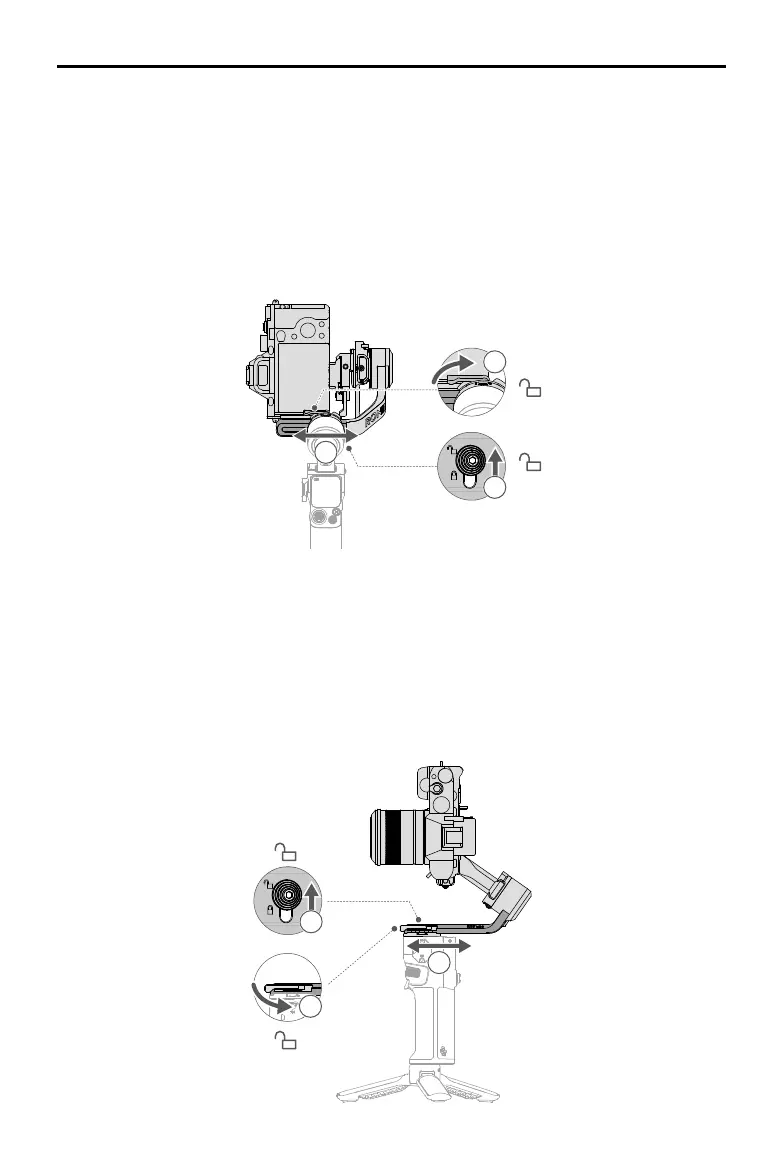

3. Balancing the Roll Axis
a) Unlock the roll axis
①
and loosen the lever on the roll axis
②
.
b) Check the direction in which the roll motor swings. If the camera rotates to the left,
move the camera to the right
③
. If the camera rotates to the right, move the camera to
the left
③
.
c) Tighten the lever on the roll axis. The roll axis is balanced when the vertical arm
maintains perpendicular with a level surface.
d) Toggle the roll lock to the locked position.
4. Balancing the Pan Axis
a) Unlock the pan axis
①
and loosen the lever on the pan axis
②
.
b) While holding the grip, tilt the gimbal forward and rotate the pan arm until it is parallel
with a level surface. Check the movement of the pan axis. If the camera lens rotates to
the left, move the camera to the right
③
. If the camera lens rotates to the right, move
the camera to the left
③
.
c) Tighten the lever on the pan axis. The pan axis is balanced when the pan arm maintains
parallel with a level surface while the grip is tilted.
3
1
2
1
2
3
