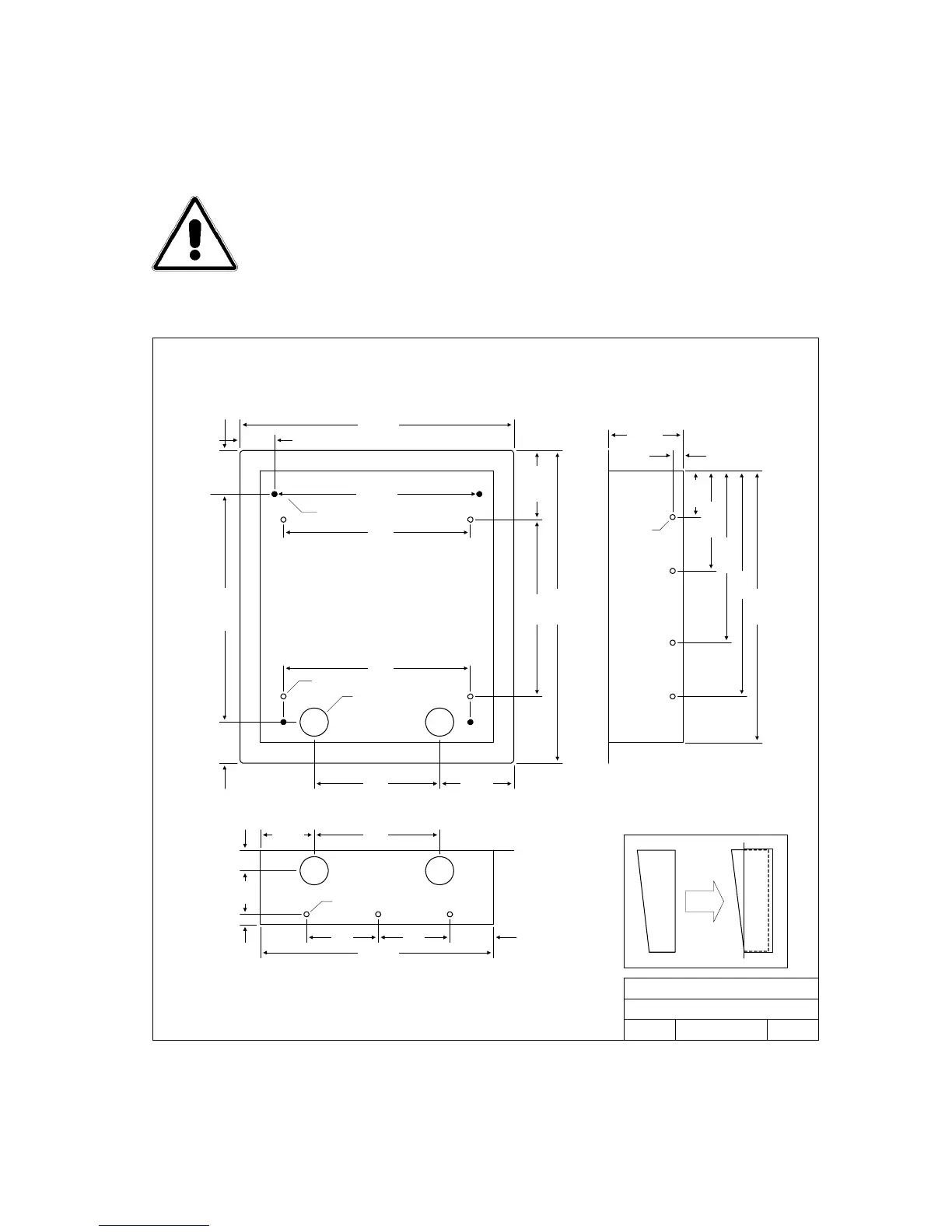

DKS 1803 - 1.3 Surface Mount with Recess Box

1.3 Surface Mount 1803 and 1810 Units with Recess Box
Surface mount units can be semi-flush mounted into a wall or pilaster by using the optional recess-
mounting box (p/n 1803-150). Be sure the unit is mounted securely and is not subject to vibration
from closing doors or gates.
WARNING
! If this entry system is used to control a vehicular gate with an
automatic gate operator, the entry system must be mounted a minimum of
ten (10) feet away from the gate and gate operator, or in such a way that a
person cannot operate the entry system and touch the gate or gate operator
at the same time.
2.687 6.0
1.125.437 2.063
3.5
11.375
3.5 2.187
.25 DIA
10.125
13.375
2.187
3.375
10-24 x 1.25 STUD (4 PL)
1.625
15.25
8.5
10.875
1.375 DIA
.25 DIA
2.187
6.0 3.687
.437
3.625
.25 DIA
2.25
4.875
8.375
11.0
13.25
Standard Surface Mount Recess Mounting Box
Surface Mount Entry System
Recess Mount Box
DOORKING, INC., INGLEWOOD, CA 90301
Date: Dwg. No.
Surface Mount Recess Mounting Box
Rev.
Title:
10/05
B
M1800-065-2
9.0
9.0
1800-060-S-3-14 Page 13
