DMN BL200 - Construction; General Assembly and Parts List AL-HT Execution 600C

DMN-WESTINGHOUSE AL-BL Rotary Valves
Code: AL-E.B.01.B 11-2012
29
3.3.3 Construction
3.3.3.1 General assembly and parts list type AL HT execution 600C

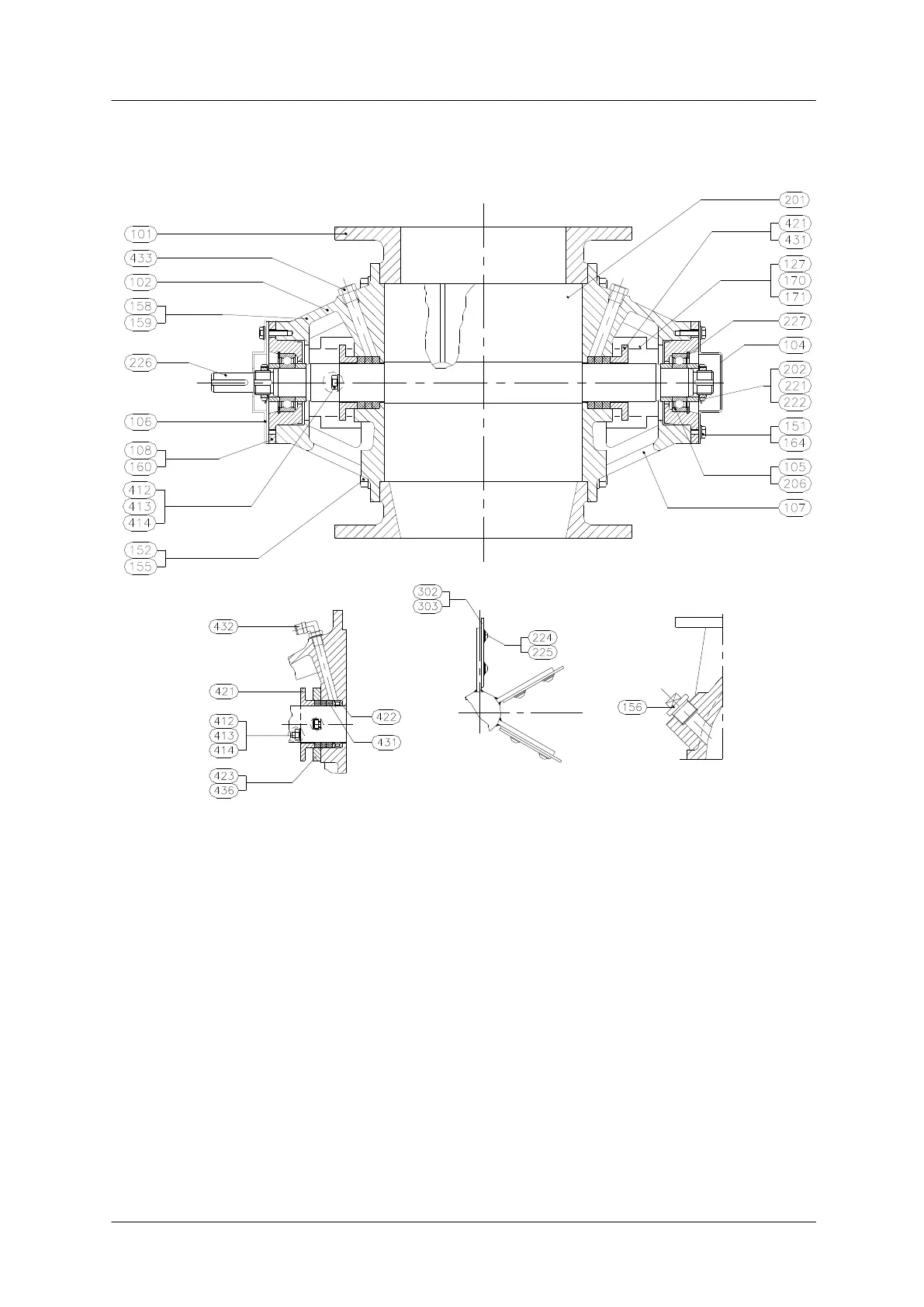

Fig. 3.3.3.1 AL HT execution 600°C.
101 Body
102 End cover
104 Bearing cover
105 Ball-bearing HT
106 Bearing cover
107 End cover
108 Bearing house
127 Shaft protection
151 Bolt
152 Bolt
155 Washer
156 Plug
158 Name plate
159 Arrow
160 Countersunk screw
164 Washer
201 Rotor
202 Support ring
206 Shim
221 Safety ring
222 Locknut
224 Head screw
225 Washer
226 Key
227 Circlip
302 Rotor blade
303 Scraper blade
412 Stud
413 Nut
414 Washer
421 Gland follower
422 Lantern ring
423 Extension piece
431 Gland packing
432 Coupling
433 Plug
436 Cylinder bolt
