DMN BL300 - Al-BL HT Execution 250C

DMN-WESTINGHOUSE AL-BL Rotary Valves
Code: AL-E.B.01.B 11-2012
25
3.2 Al-BL HT execution 250C

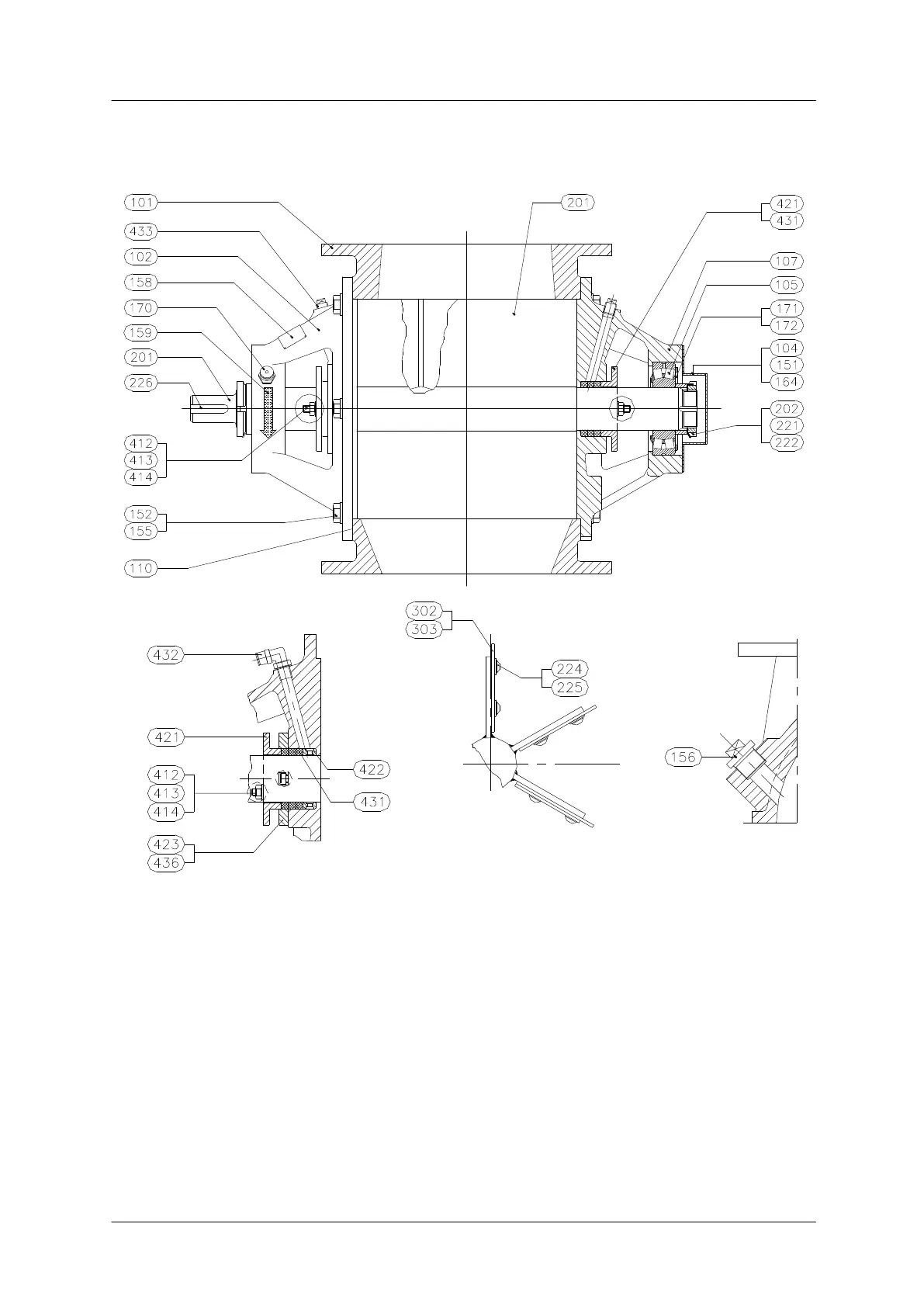

General assembly and parts list type AL-BL HT execution 250°C.
Fig. 3.2.1 AL-AXL-AML HT execution 250°C.
101 Body
102 End cover
104 Cover
105 Spherical roller bearing
107 Cover
151 Bolt
152 Bolt
155 Washer
156 Plug
158 Name plate
159 Arrow
170 Grease nipple
171 Nilos ring
172 Nilos ring
201 Rotor
202 Spacer ring
221 Safety ring
222 Locknut
224 Head screw
225 Washer
226 Key
302 Rotor blade
303 Scraper blade
412 Stud
413 Nut
414 Washer
421 Seal follower
422 Lantern ring
431 Gland packing
432 Coupling
433 Plug
436 Cylinder bolt
