DMN-WESTINGHOUSE AL-BL Rotary Valves
Code: AL-E.B.01.B 11-2012
48
- Pulsating air execution

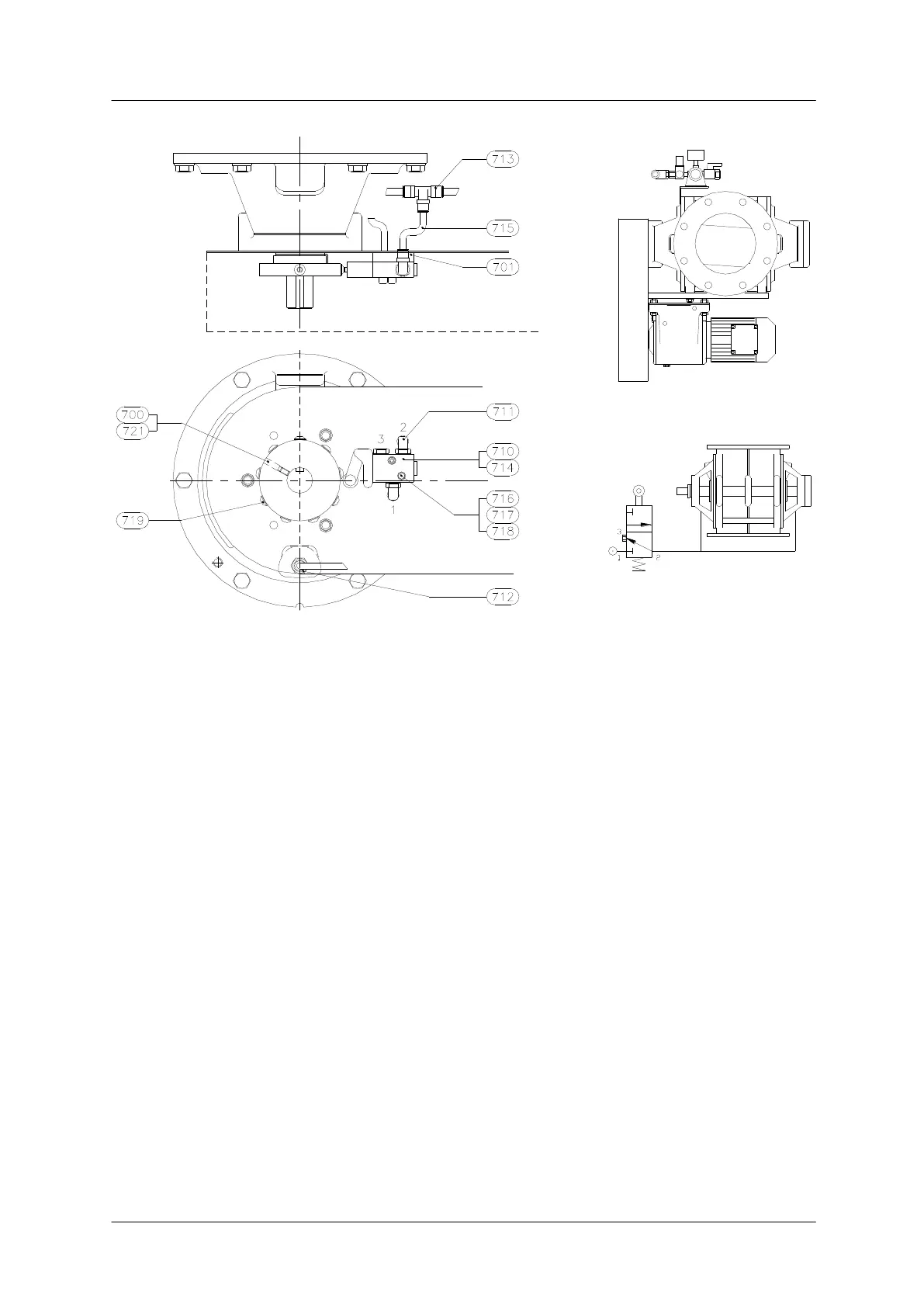

Fig. 3.7.2 Pulsating air injection.
700 Cam disc 715 Tube Ø8
701 Shim 716 Bolt
710 Solenoid 717 Washer
711 Coupling 1/8” 718 Nut
712 Coupling 1/4” 719 Bolt
713 T-coupling 721 Cyl. Adjusting screw
714 Plug 1/8”
Technical data
Valve mechanical : Norgren type S/666
Connection : 1/4” Tube Ø8mm
Operating pressure : 2 up to 10 Bar
Operating temperature : -5°C up to +80°C
Air consumption : 15-20 m3/H at 6 Bar
