DMN BL300 - Zero Speed Indication

DMN-WESTINGHOUSE AL-BL Rotary Valves
Code: AL-E.B.01.B 11-2012
50
- Zero speed indication

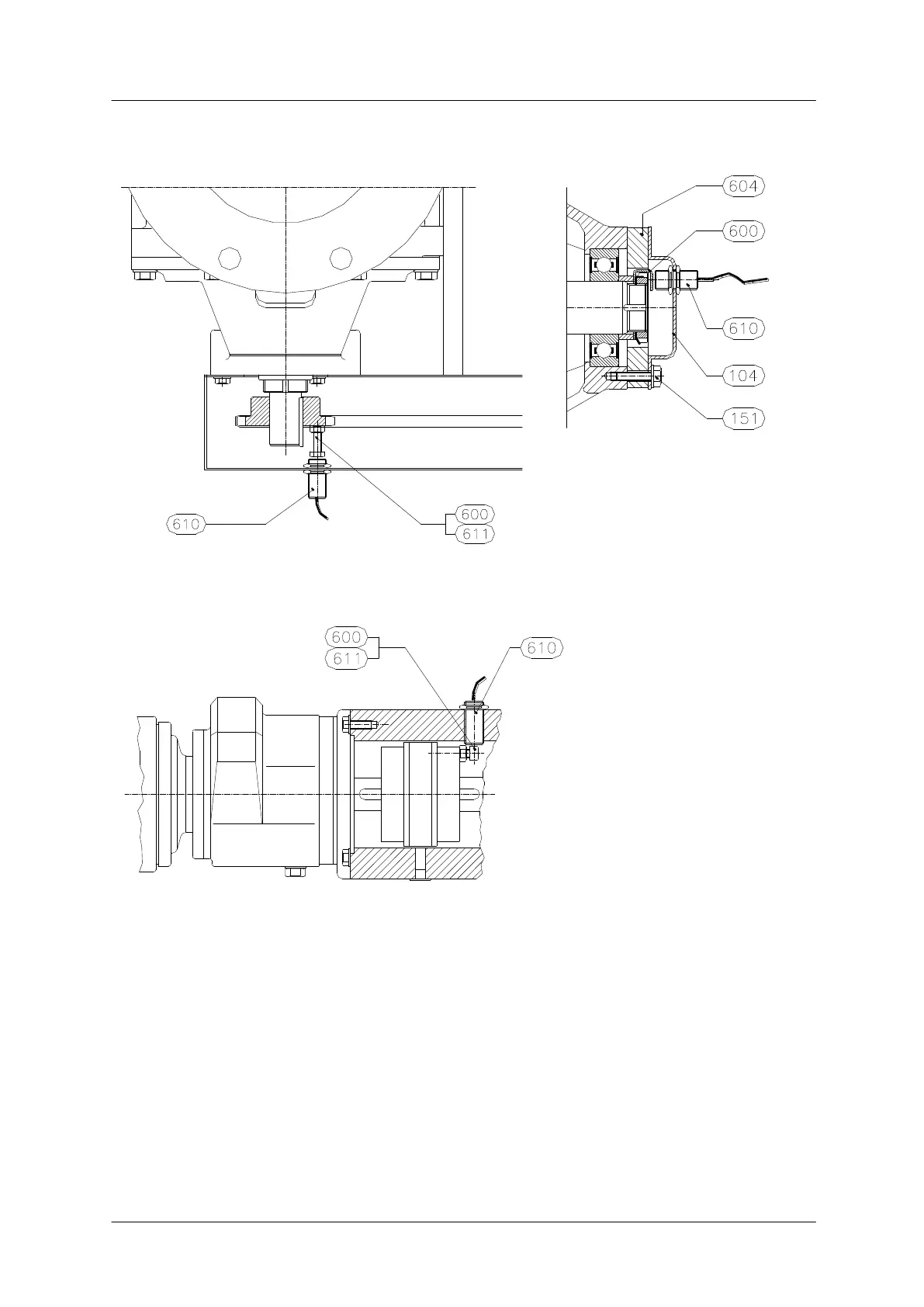

Fig. 3.7.4 Drive side.
Fig. 3.7.5 Non drive side.
Fig. 3.7.6 Direct drive.
104 Bearing cover
151 Bolt
600 Impulssender
604 Cover plate
610 Proximity switch
611 Nut
