DMN BL300 - Inlet Restrictor Drop out Box Air Vent Box

DMN-WESTINGHOUSE AL-BL Rotary Valves
Code: AL-E.B.01.B 11-2012
51
- Inlet restrictor Drop out box Air vent box

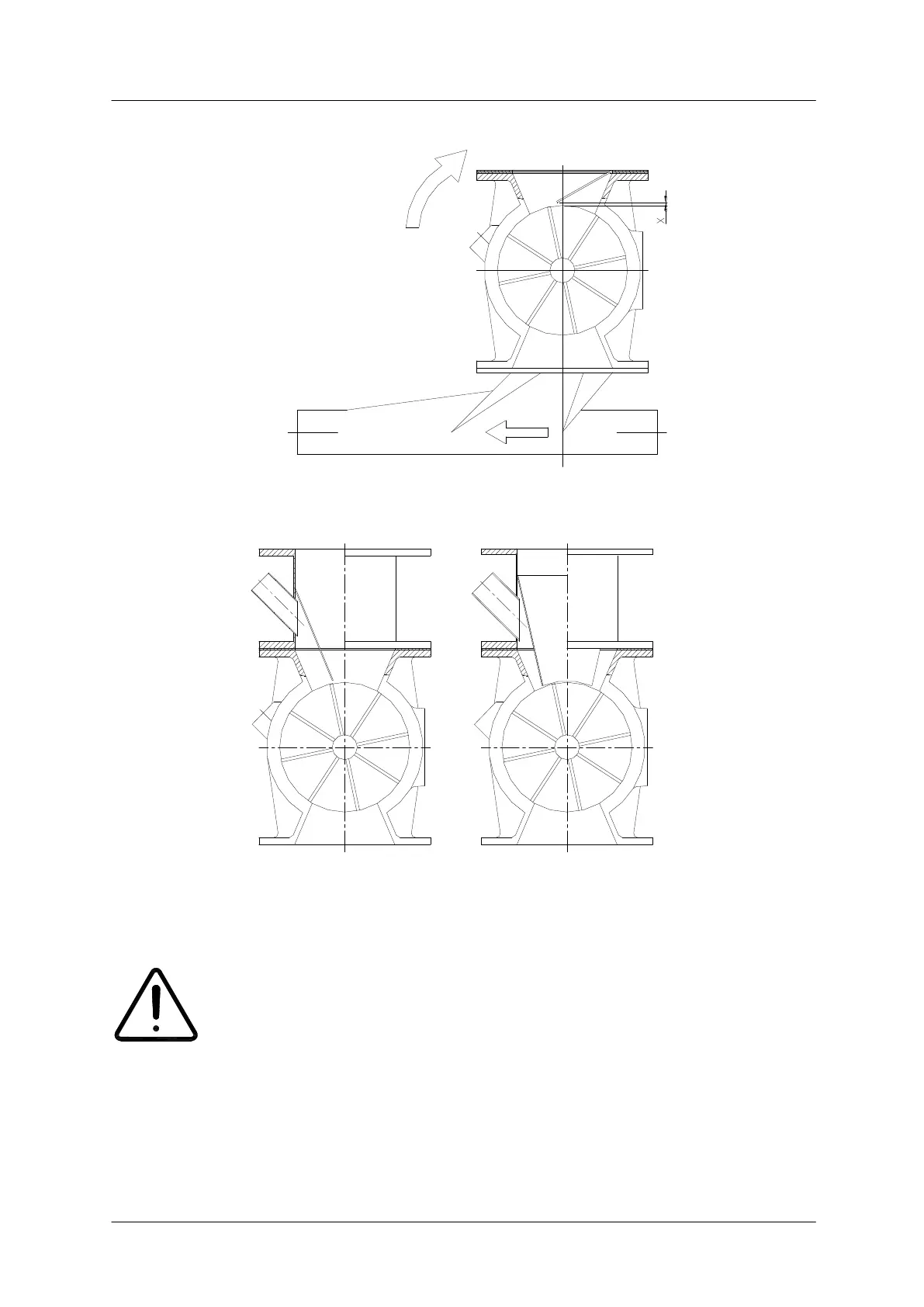

Fig. 3.7.7 Inlet restrictor and Drop out box
Fig. 3.7.8 Vent box (one side) Vent box (all around)
Installation procedure
Please respect safety instructions.
- Check rotating direction.
- Check clearance between rotor and inlet restrictor / vent box.
Clearance must be 1.5 x particle size.
- Check Air flow direction drop out box.
