re-assemble
the
oil
pump,
ensuring
free
rotation
oi
the
gears,
se-
cure
the
bolts
by
unbending
the
lock
washer
onto
the
bolt
edge,
in-
stal
l
the
oil
pump
gear
and
lock
it
by a
cotter
pin;
press
the
bearing
into
the
fr
ont
body,
using
a
mandrel
OP-1260;
press
the
bearing
outer
race
togetb~r
wit
h ro
ll
ers
into
the
crank-
case,
using
a
mandre
l TIP-1260;
\',
in
sta
ll
the
locking
ring,
oil
slinger
and
spring
washer" in the
crankcase
and
press
in
the
crankshaft
gland;

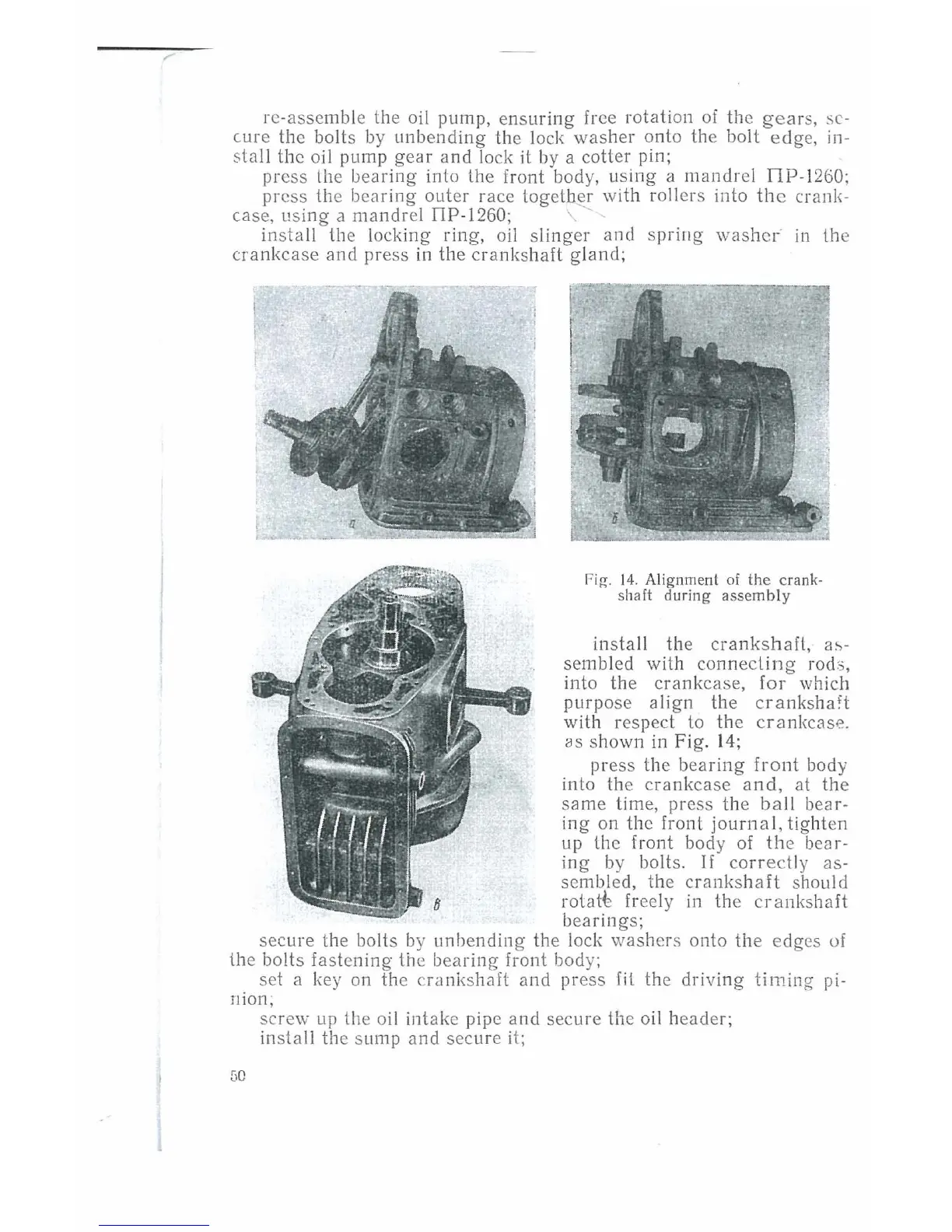

Fig. 14. Alignment of the crank-
shaft
during
assembly
install
the
crankshaft,
a~
sembled
with
connecting
rods,
into
the
crankcase,
for
which
purpose
align
the
crankshaft
with
respect
to
the
crankcase.
as
shown
in
Fig.
14;
press
the
bearing
front
body
into the
crankcase
and,
at
the
same
time,
press
the
ball
bear-
ing
on
the
front
journal,
tig
ht
en
up
the
front
body of
the
bear-
ing
by bolts. If
corr
ect
ly
as
-
sembled,
the
crankshaft
should
rotatt
freely in
the
crankshaft
bearings;
secure
the
bo
lts by
unbending
the
lock
washers
onto
the
edges of
the
bolts
fastening
the
bearing
front
body;
set
a key
on
the
cra
nk
shaft
and
pr
ess
fit
the
driving
timing
pi-
nion;
screw
up the oil
intake
pipe a
nd
secure
the
oil
header;
in
stal
l
the
s ump
and
secure
it;
