M4000 Insulation Analyzer User Guide
72A-1230 Rev. F 4-29
July 22, 2005
At the conclusion of the Calibration Verification, a summary table like that
shown in Figure 4.8 will be displayed.

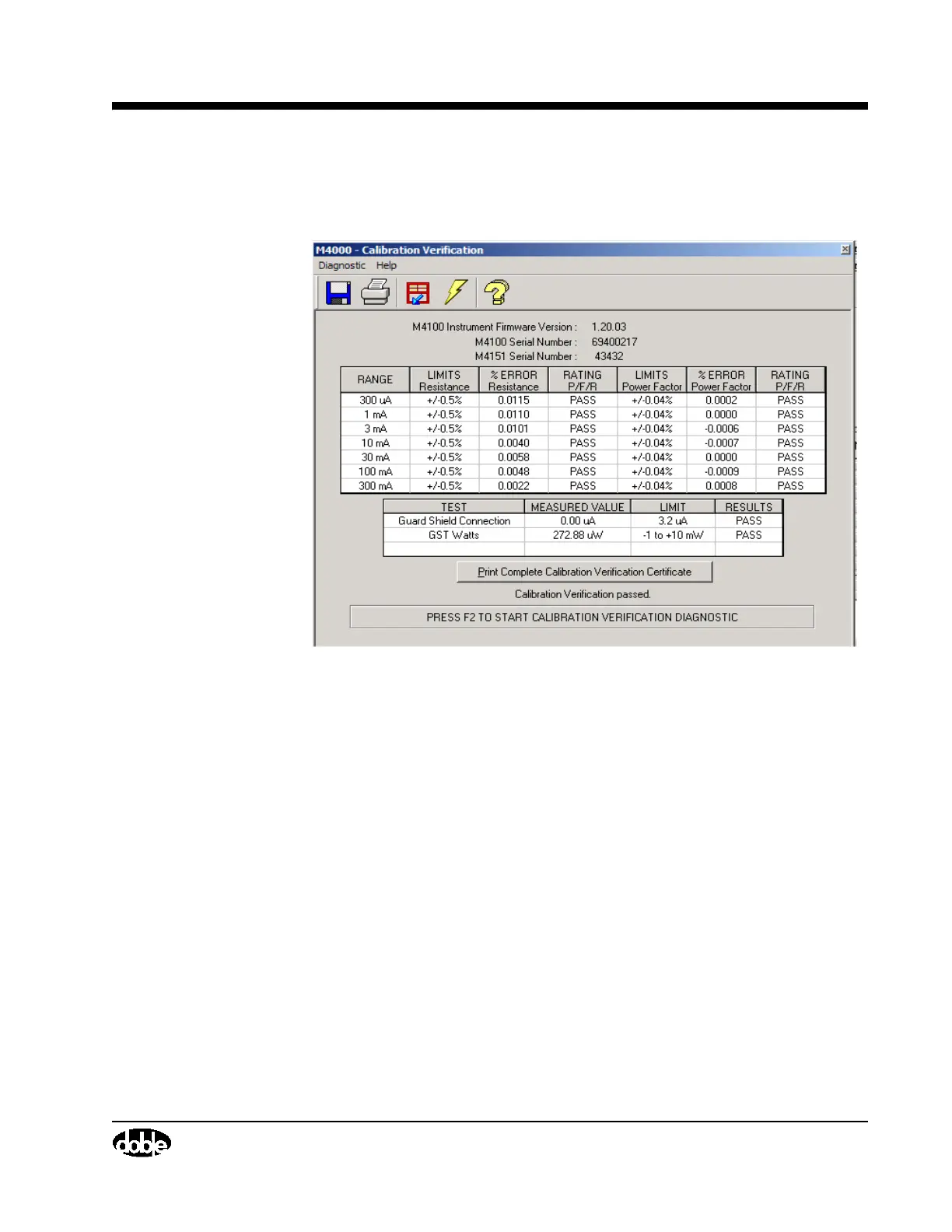

Figure 4.8 Calibration Verification Results
The summary table can be printed or saved as a text file. Both options are
available on the File pull-down menu.
Calver.log File Upon completion of the Calibration Verification, the M4000 software creates
a file named Calver.log and stores it in the DTA directory. This file
summarizes information on test aborts and test failures. An example of such a
file is shown in Figure 4.9.
