The Three Zone Basic Temperature Control lower panel
controls rear HVAC operations.
The primary control for the rear blower is on the front
climate control unit located on the instrument panel.

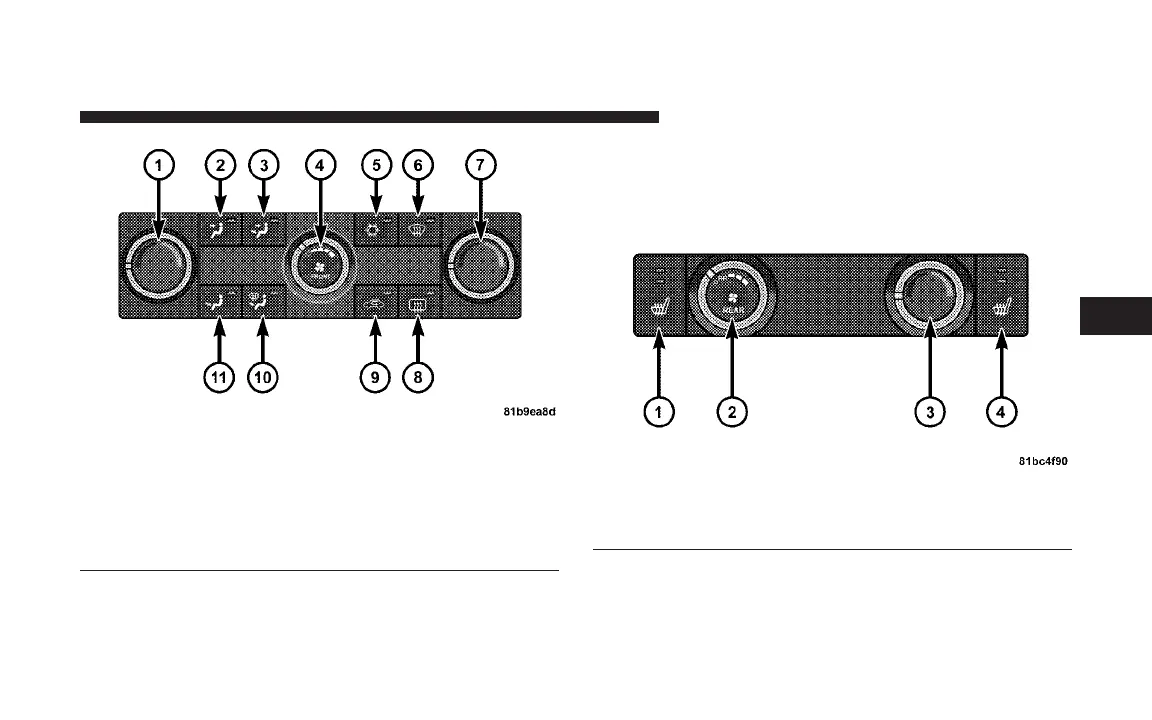

Top Panel Controls
1 - Left Front Temp Control 7 - Right Front Temp Control
2 - Panel Mode 8 - Rear Window Defrost
3 - Bi-Level Mode 9 - Recirculation Mode
4 - Front Blower 10 - Mix Mode
5 - Air Conditioning Mode 11 - Floor Mode
6 - Windshield Defrost
Bottom Panel Controls
1 - Left Front Heated Seat 3 - Rear Temp Control
2 - Rear Blower 4 - Right Front Heated Seat
UNDERSTANDING YOUR INSTRUMENT PANEL 289
