The front climate control unit has five positions, “OFF”,
“REAR”, and a range of blower speeds. Only when the
primary control for the rear blower is in the “REAR”
position do the second seat occupants have control of the
rear blower speed.
Manual Rear Zone Climate Control — If Equipped
The Manual Rear Zone Climate Control system has floor
air outlets to the rear of the right side sliding door and
overhead outlets at each outboard rear seating position.
The unit provides warm or cool air through the floor and
upper outlets.
The rear blower and temperature controls for the rear
seat passengers are located in the headliner near the
center of the vehicle.
Rear Blower Control
The primary control for the rear blower is on the front
climate control unit located on the instrument panel.

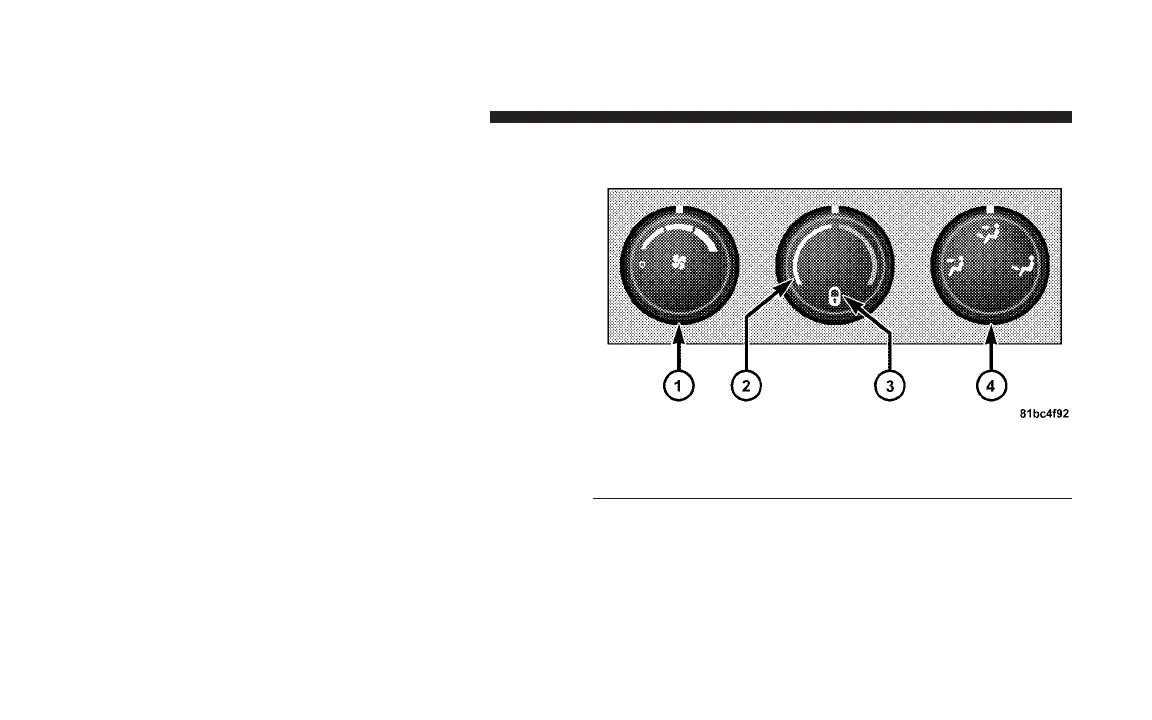

Rear HVAC Manual Controls
1 - Blower Control 3 - Rear HVAC Lock
2 - Temperature Control 4 - Mode Control
290 UNDERSTANDING YOUR INSTRUMENT PANEL
