Occupants in the vehicle select AUTO mode operation
and a comfort temperature setting, using rotary knobs
on the control unit.
•
The system provides set-and-forget operation for op-
timum comfort and convenience.
•
The system can be controlled manually if desired.
•
SYNC feature links the controls for all three zones,
allowing one comfort setting for the cabin, if desired.
The Infrared Three-Zone Automatic Temperature Control
(ATC) System automatically maintains the interior com-
fort level desired by the driver and all passengers. This is
accomplished by an infrared sensor, located in the for-
ward overhead console. Based on the sensor input, the
system automatically adjusts the air temperature, the air
flow volume, and amount of outside air recirculation.
This maintains a comfortable temperature even under
changing conditions.

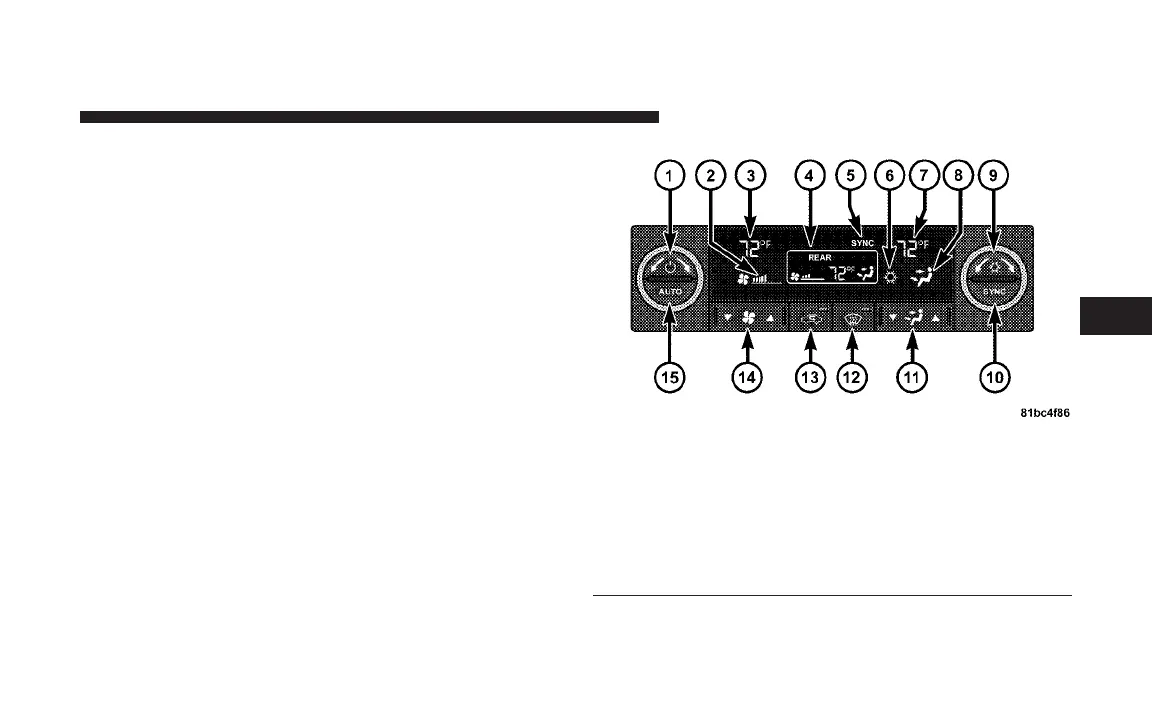

Front Top Panel ATC
1 - Left Front Temp Power On/Off 9 - Right Front Temp A/C On/Off
2 - Current Blower Speed 10 - Sync Three Zones
3 - Current Left Front Temperature 11 - Mode Select
4 - Rear Blower Speed, Temp, Mode 12 - Windshield Defrost
5 - Sync (On when lit) 13 - Recirculation
6 - A/C (On when lit) 14 - Blower Speed Selects
7 - Current Right Front Temperature 15 - Auto Temperature Control
8 - Current Mode Selection
UNDERSTANDING YOUR INSTRUMENT PANEL 293
4
