Dolby Laboratories DP600 - Figure 3-15 Remove Failed Power Supply; Figure 3-16 Install New Power Supply

Replacing a DP600 Power Supply
Dolby
®
DP600 Program Optimizer Manual 59
Figure3‐15 

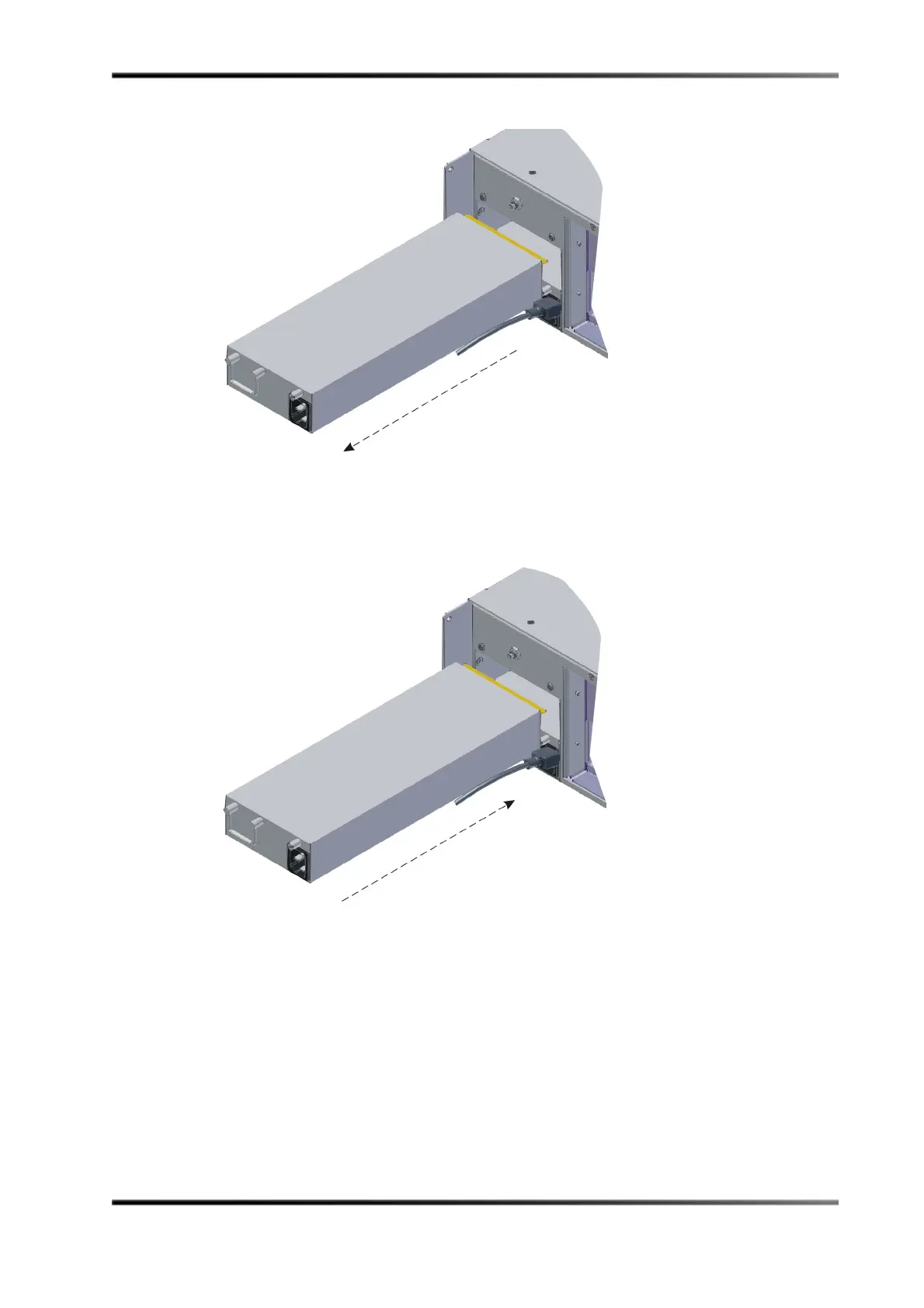

Figure 3-15 Remove Failed Power Supply
4. Positionthereplacementunitsquarelywithinitsslotandpushitalongthe guiding
surfaceuntilitsnapsintoplace,asshowninFigure 3‐16.
Figure3‐16 
Figure 3-16 Install New Power Supply
