Dolmar 109 - Carburettor; Carburettor (Tillotson) Pump Side; Carburettor (Walbro) Pump Side; Removing the Injection Valve

DOLMAR GmbH
7
8
9
6
12
12
9
11
10
6
6
S
7
8

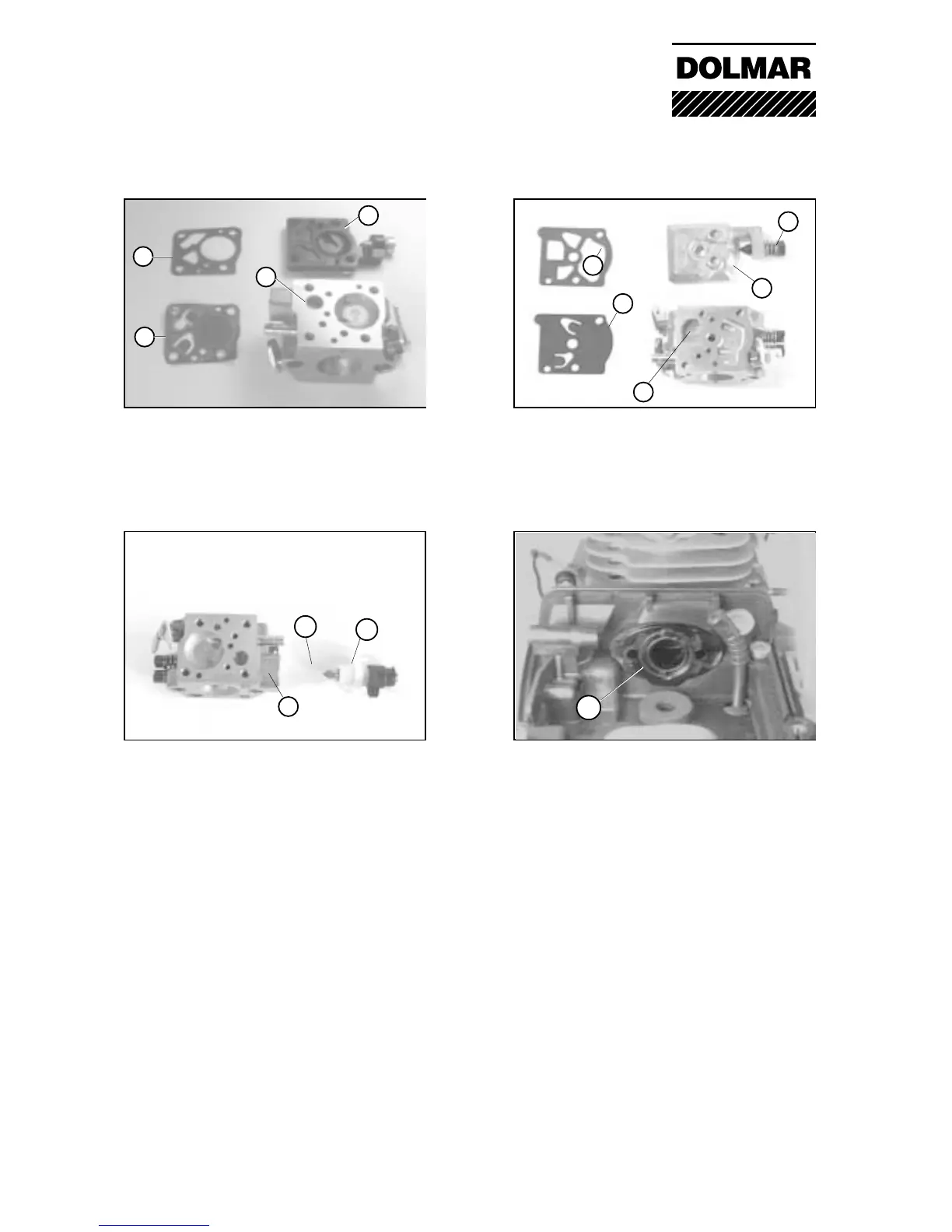

06-04 Carburettor (Tillotson) pump side
Unscrew cover (6). Remove seal (7) and
diaphragm (8). Carefully remove the fuel filter
(9) for cleaning.
06-04 Carburettor (Walbro) pump side
Unscrew cover (5) with idling adjustment
screw ("S"). Remove seal (6) and diaphragm
(7). Carefully remove the fuel filter (8) for
cleaning.
06-05 Removing the injection valve
Unscrew attachment screw (9) and remove
the valve assembly (10) from the carburettor
body. Use new valve, if the needle tip (11) is
worn.
06-08 Removing the intermediate flange
The intermediate flange (12) can be taken out
after the carburettor has been removed.
06 Carburettor
