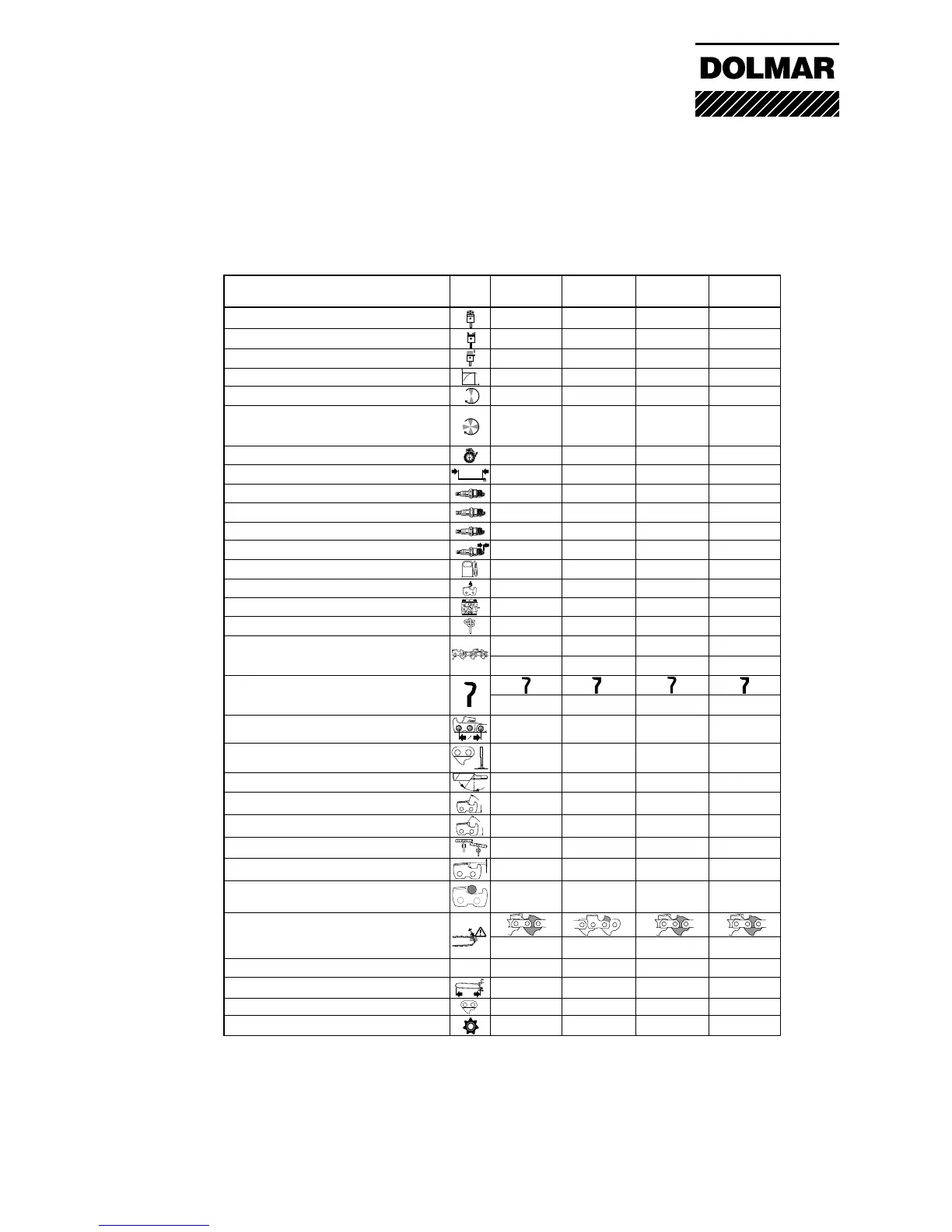

Dolmar 109 - Technical Data

- Bumper Depth Gauge Bumper Bumper
Drive Link Drive Link Drive Link
Type Spur (fixed) Rim (loose) Spur (fixed) Rim (loose)
Cutting length cm 38 33/38 38 45
Drive Link count 56 56/64 56 64
Sprocket Z 7877
Model 109 110i 115i
Displacement cm
3
43 43 52 52
Bore mm 40 40 44 44
Stroke mm 34 34 34 34
Rating kW 2,0 2,3 2,4 2,7
Idling 1/min 2500 2500 2500 2500
Allowed max. engine speed
with bar and chain 1/min 12500 13200 12500 13000
(* with speed limitation)
Gap Flywheel / Coil mm 0,2-0,3 0,2-0,3 0,2-0,3 0,2-0,3
High tension wire length mm 180 180 180 180
Spark plug NGK BPMR-7A BPMR-7A BPMR-7A BPMR-7A
BOSCH WSR-6F WSR-6F WSR-6F WSR-6F
CHAMPION
Elektrode gap mm 0,5 0,5 0,5 0,5
Fuel tank capacity Ltr. 0,56 0,56 0,56 0,56
Oil tank capacity Ltr. 0,28 0,28 0,28 0,28
Carb. adjustment L / H 1/1 1/ 1 1/8 1/1 1/ 1 1/8
Starter rope ø / length mm 3,5 / 980 3,5 / 980 3,5 / 980 3,5 / 980
Saw chain Model 093 084 093 099
Normal profil Low profil Normal profil Low profil
Cutter type
Semi chisel Chisel Semi chisel Chisel
Gauge inch 3/8 .325 3/8 3/8
mm (9,52) (8,2) (9,52) (9,52)
Drive link inch 0.58 0.58 0.58 0.58
mm (1,5) (1,5) (1,5) (1,5)
Filling Angle 35° 30° 35° 25°
Side Angle 85° 75° 85° 60°
Cutting Angle 60° 60° 60° 60°
File Guide Angle 90° 10° 90° 90°
Depth Gage Setting mm 0,65 0,65 0,65 0,65
File ø mm 5,5 4,5 5,5 5,5
Technical data
Kick back reduction
r.p.m.
H
Max.
L
H
S
1
2
90°
10°
r.p.m.
L
From 1/2 Cutter mm 4,8 4,0 4,8 4,8
3
DOLMAR GmbH
111/111i
