DOLMAR GmbH
9
1
3
2
4
3
5
4
S
N
2
9
8
7
10
04 Ignition system

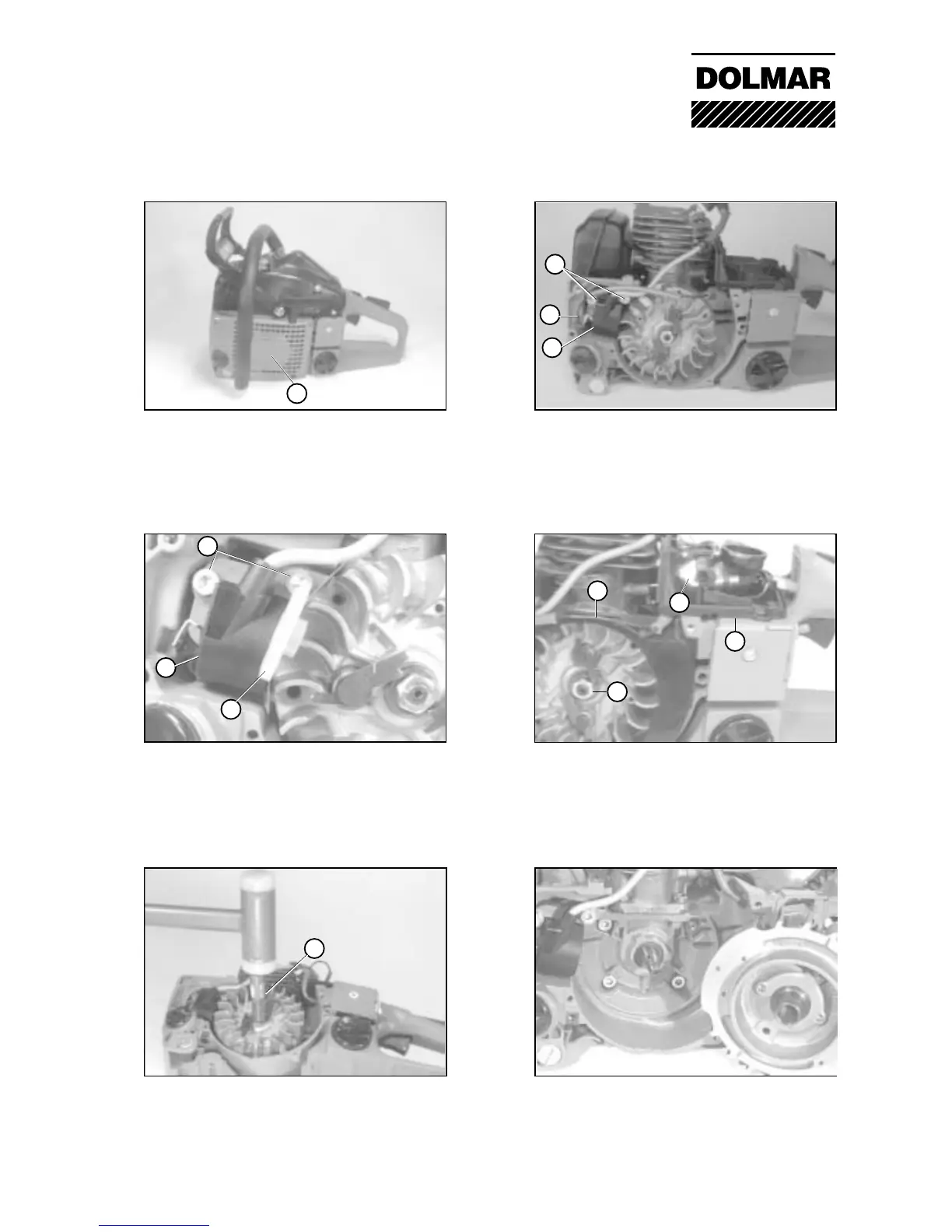

04-04 Removing the ignition armature and
the flywheel
For the removal of the ignition armature
unscrew the cover (07-01) and the starting
assembly (1).
04-04 Removing ignition armature/flywheel
Withdraw short-circuiting cable (2) from the
armature and unscrew screws (3). When
replacing, remove ignition cable from the
ignition armature (4). Screw new ignition cable
forcefully into the ignition armature.
04-04 Installing the ignition armature
Install the ignition armature and secure in
place using screws (3). For setting the air gap,
fit gauge (5), no. 944 500 890, between fly-
wheel and armature. Turn the N/S marking of
the flywheel towards the ignition armature.
04-04 Replacing the short-circuiting cable
For the removal of the short-circuiting cable
(2) it is necessary to remove carburettor (7)
and bottom part (8). When installing the cable,
ensure that it is not caught when fitting the
bottom part.
04-04 Withdrawing the flywheel
Unscrew nut (9). Screw the punch (10),
944 500 880, on the crankshaft and remove
the flywheel by striking a jarring blow.
04-04 Installing the flywheel
Ensure that the cone on the flywheel and on
the crankshaft is free from grease.
Tighten the nut using a torque of 25 Nm (refer
to table 995 709 180).
