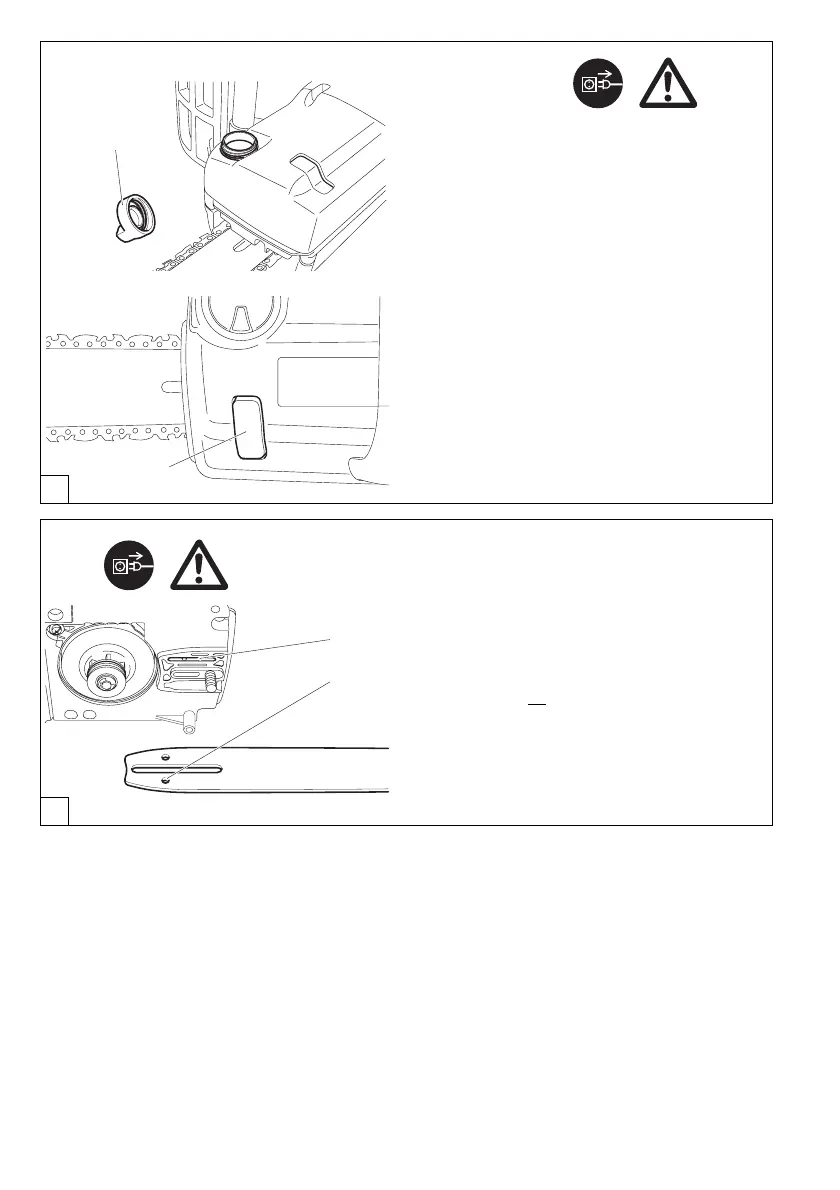

ReÞ lling the oil tank
Only if the motor is switched off and the power supply plug
is pulled out!
- Thoroughly clean the oil tank around the cap to prevent dirt
from entering the tank.
- Unscrew the tank cap (1) and Þ ll in chain oil until it is on a
level with the bottom edge of the Þ ller socket.
- Tightly screw on the tank cap.
- Thoroughly remove any oil that has overß own.
Important!
Before operating the saw for the Þ rst time, the oil feed system
must be completely Þ lled, until the chain oil lubricates the chain
and guide bar.
This procedure can take up to two minutes.
- The oil level can be controlled in the sight glass (2).
In order to ensure sufÞ cient lubrication of the saw chain there
must always be enough oil in the tank.
1
D
4
3
Lubricating the saw chain
Only if the motor is switched off and the power supply plug
is pulled out!
To guarantee a troublefree operation of the oil pump the oil guide
groove (3) as well as the oil inlet bore in the guide bar (4) must
be cleaned in regular intervals.
Note:
After the saw has been turned off it is normal for residual chain
oil to drip from the oil feed system, the guide bar and the chain
for a time. This does not constitute a defect!
Place the saw on a suitable surface.
