Dolmar ES-2140 A - Technical Data; Denomination of Components

9
ES-2130 A ES-2135 A ES-2140 A ES-2145 A
Power consumption Watt 2000
Nominal voltage V 230 - 240 ~
Mains frequency Hz 50 - 60
Nominal current A 8,8
Fuse, electric circuit A 16
Cable length cm 30 / 500
Chain type 092
Chain pitch inch 3/8"
Length of a cut cm 30 35 40 45
Max. chain speed m/s 13,3
Sound power level
L
WA av
dB (A) 101,8
per EN 60745-2-13
Sound pressure level L
pA av
dB (A) 90,8
at the workplace per EN 60745-2-13
Vibration acceleration
a
h,w av
per EN 60745-2-13
- Tubular handle m/s
2
4,7
- Rear handle m/s
2
5,6
Oil pump
automatic
Oil tank capacity ml 140
Power transmission direct
Overload protection electrical
Chain brake manually actuated
Run-out brake electrical
Weight
(without bar/chain) kg 4,4
Weight
(with bar/chain) kg 5,0 5,1 5,2 5,3
Radio interference suppression / EMC Per EMC Directive 2004/108/EG
Protective case class II (double protective insulation)
Extension cable DIN 57282/ HO 7RN-F
(not included) L= 30 m max., 3x1,5 mm
2

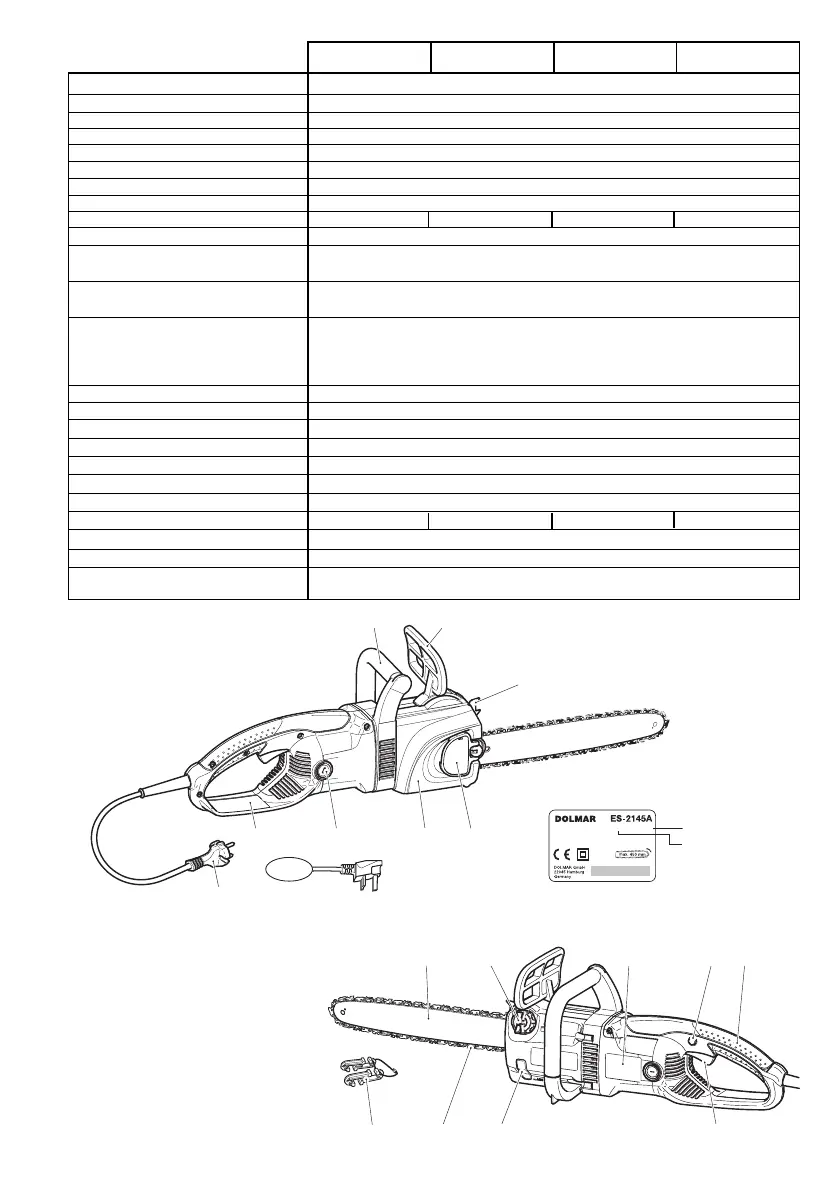

Figure: IdentiÞ cation plate ES-2145A
Indicate when ordering spare parts!
Technical data
1
9 10 11 12 13
2
3
45
14151617
67
8
Typ 226 XXX XXX XXX
230-240 V~ 50-60 Hz 8.8 A 2000 W
2008 123456
Denomination of components
1 Tubular handle
2 Hand guard (release for chain brake)
3 Spike bar
4 Sprocket guard quick tightener
5 Sprocket guard, chain brake
6 Carbon brush cover
7 Back hand guard
8 Power cord with plug
9 Guide bar
10 Oil tank cap
11 IdentiÞ cation plate
12 Locking button
13 Rear handle
14 Power switch
15 Sightglass for oil level
16 Saw chain
17 Cord grip for electric cord (pull relief)
Serial number
Year of manufacture
GB
