Dolmar MS290.4U - Mounting the handle; Adjusting the handle;hanger position

9 ENGLISH
NOTICE: Note the direction of the grip. The
screw holes will not be aligned if the grip is not
inserted in the correct direction.
NOTICE: Do not twist the throttle cable or bend
it in a small radius. Make sure that the throttle
trigger moves freely after installing the grip.

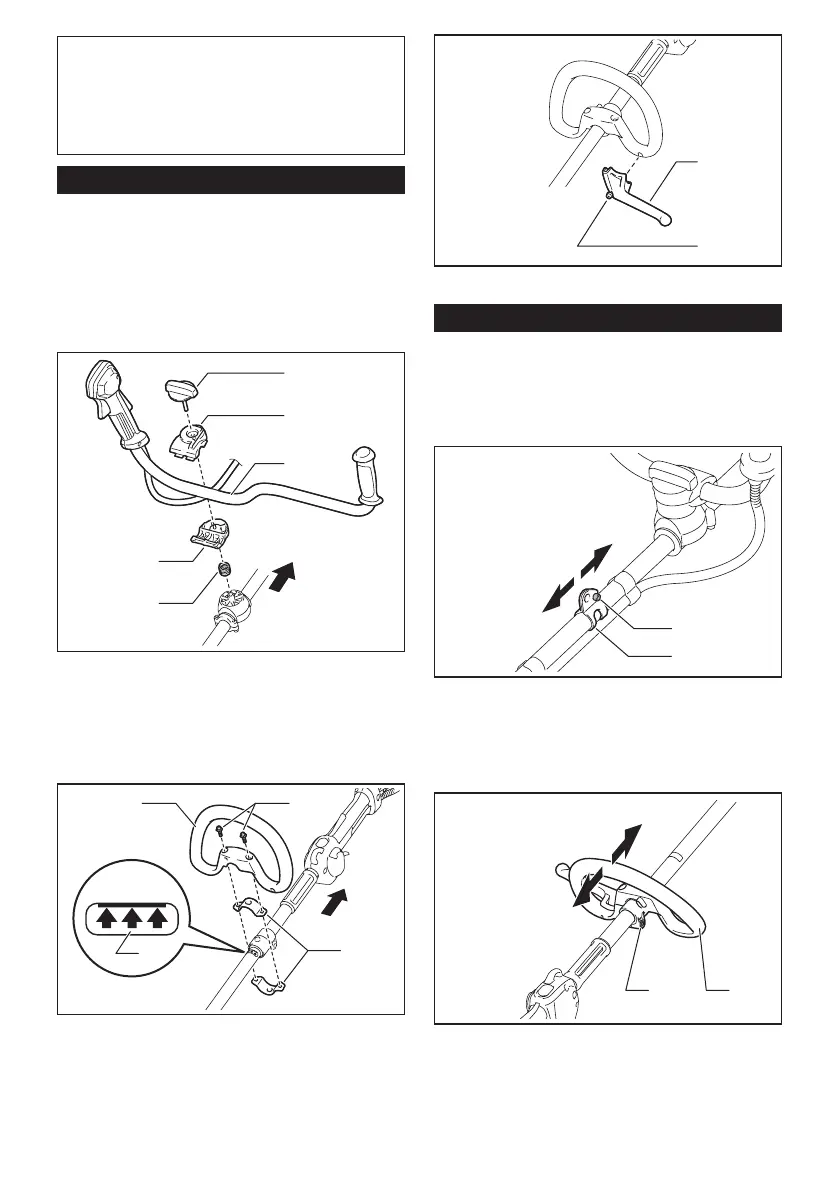

Mounting the handle
For bike handle model
1. Place the mount spring on the base.
2. Place the handle between the handle clamp and
handle holder.
3. Temporarily attach the handle by tightening the
knob,andadjustthehandleposition.
4. Fully tighten the knob.
3
1
4
2
5
6
►1. Knob 2. Handle clamp 3. Handle 4. Handle holder
5. Mount spring 6. Engine side
For loop handle model
Attach the handle using the supplied clamps and bolts.
Make sure that the handle is secured at a position close
totheengine,abovethelimitlinemarker.
3
1 2
4
5
►1. Handle 2. Bolt 3. Clamp 4. Limit line marker
5. Engine side
Attachthebarrier(countryspecic)tothehandleusing
the screw on the barrier.
1
2
►1. Barrier 2. Screw
Adjusting the handle/hanger position
Adjustthehandleandhangerpositiontoobtaincom-
fortable handling of the tool.
For bike handle model
Loosen the bolt on the hanger. Slide the hanger to a
comfortable working position and then tighten the bolt.
1
2
►1. Hex socket head bolt 2. Hanger
For loop handle model
Loosenthehexsocketheadboltonthehandle.Move
the handle to a comfortable working position and then
tighten the bolt.
1 2
►1. Hex socket head bolt 2. Handle
Ifaseparatehangerisprovidedonyourtool(country
specic),adjustitbylooseningthehexsocketheadbolt
onthehanger.Movethehangertoacomfortablework-
ing position and then tighten the bolt.
