Dolmar MS290.4U - ASSEMBLY; Installing the handle

8 ENGLISH
MS290.4LN
1
3
2
11
10
12
13
14
16
15
17
5
6
9
4
8
7

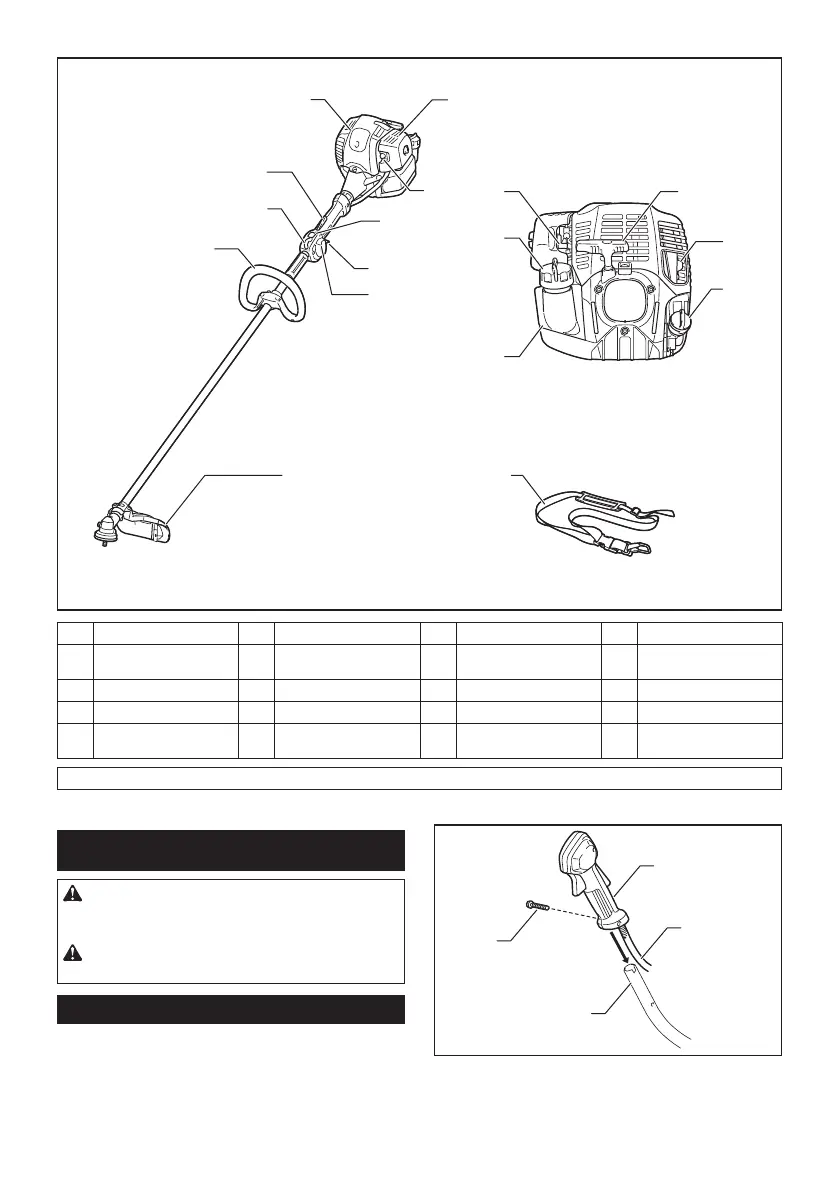

1 Sparkplugcover 2 Aircleanercover 3 Primer pump 4 Stop button
5 Lock-offlever 6 Hanger 7 Throttletriggeradjust-
ment dial
8 Throttle trigger
9 Handle 10 Protector (narrow) 11 Chokelever 12 Fuel tank cap
13 Fuel tank 14 Starter handle 15 Mufer 16 Oil tank cap
17 Shoulder harness (coun-
tryspecic)
- - - - - -
NOTE:Thetypeofcuttingtoolvariesdependingonthecountry.
ASSEMBLY
CAUTION: Before doing any work on the
Petrol Brushcutter, always stop the engine and
pull the spark plug connector off the spark plug.
CAUTION: Start the Petrol Brushcutter only
after assembling it completely.
Installing the handle
For bike handle model only
Insert the shaft of the handle into the grip. Align the
screw hole in the grip with the one in the shaft. Tighten
the screw securely.
1
2
3
4
►1. Grip 2. Screw 3. Handle 4. Throttle cable
