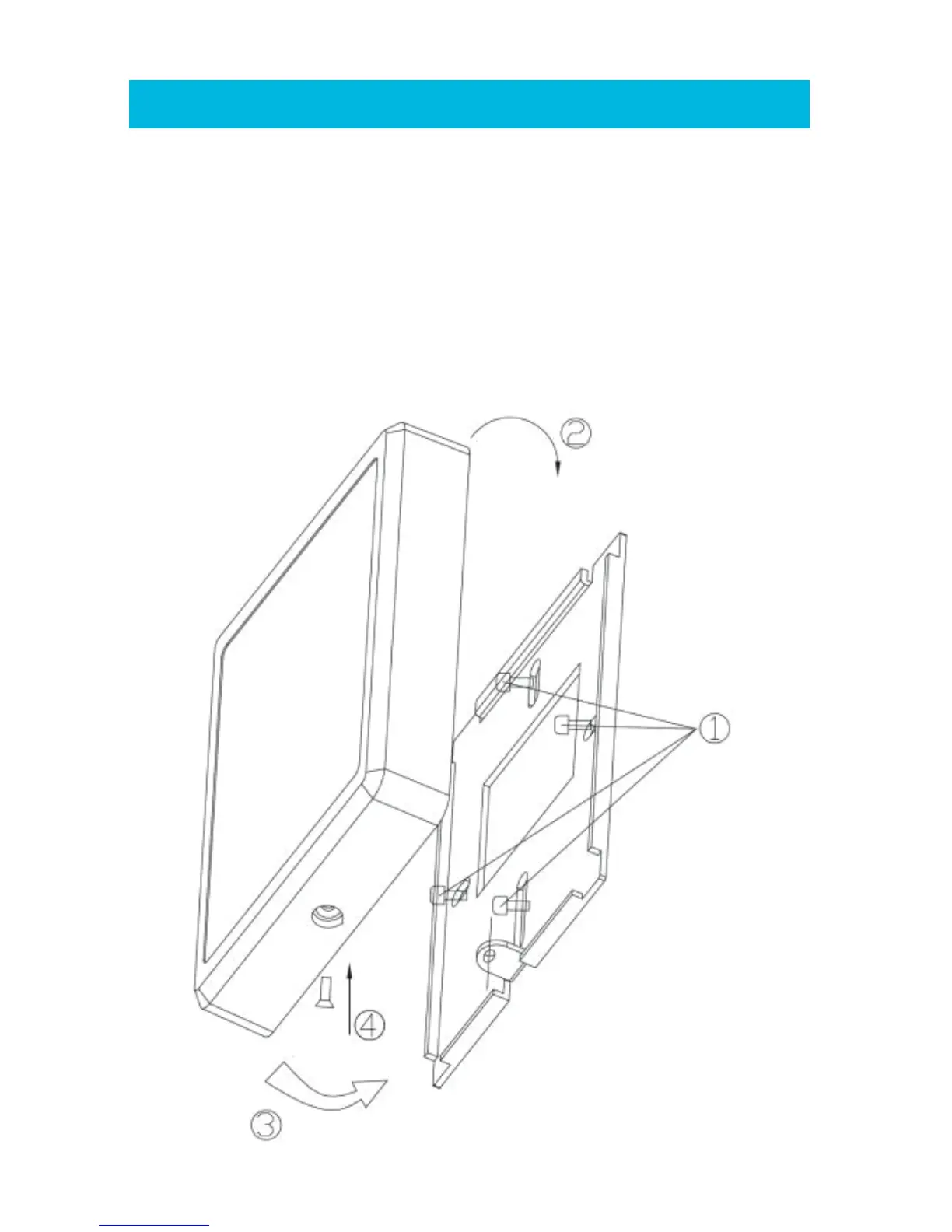

1. Install the metal plate on the wall with two or four screws,
which depends on different kinds of gang box being installed.
2. The cover will clip on the upper edge. Push in the bottom
part as shown in the diagram.
3. Tighten the secure non-dropout screw, which is located
underneath the reader, to fix the reader and the back plate. The
installation is complete.
