17
8. Dishwasher Installation
1) Instruction before installation
◎ Confirm the place to be installed
◎ Confirm the electric specifications [380V, 3ph, 4wired]
◎ Confirm watering pressure, over 1.2kg/㎠
◎ Confirm the ventilation
◎ Position the drainage

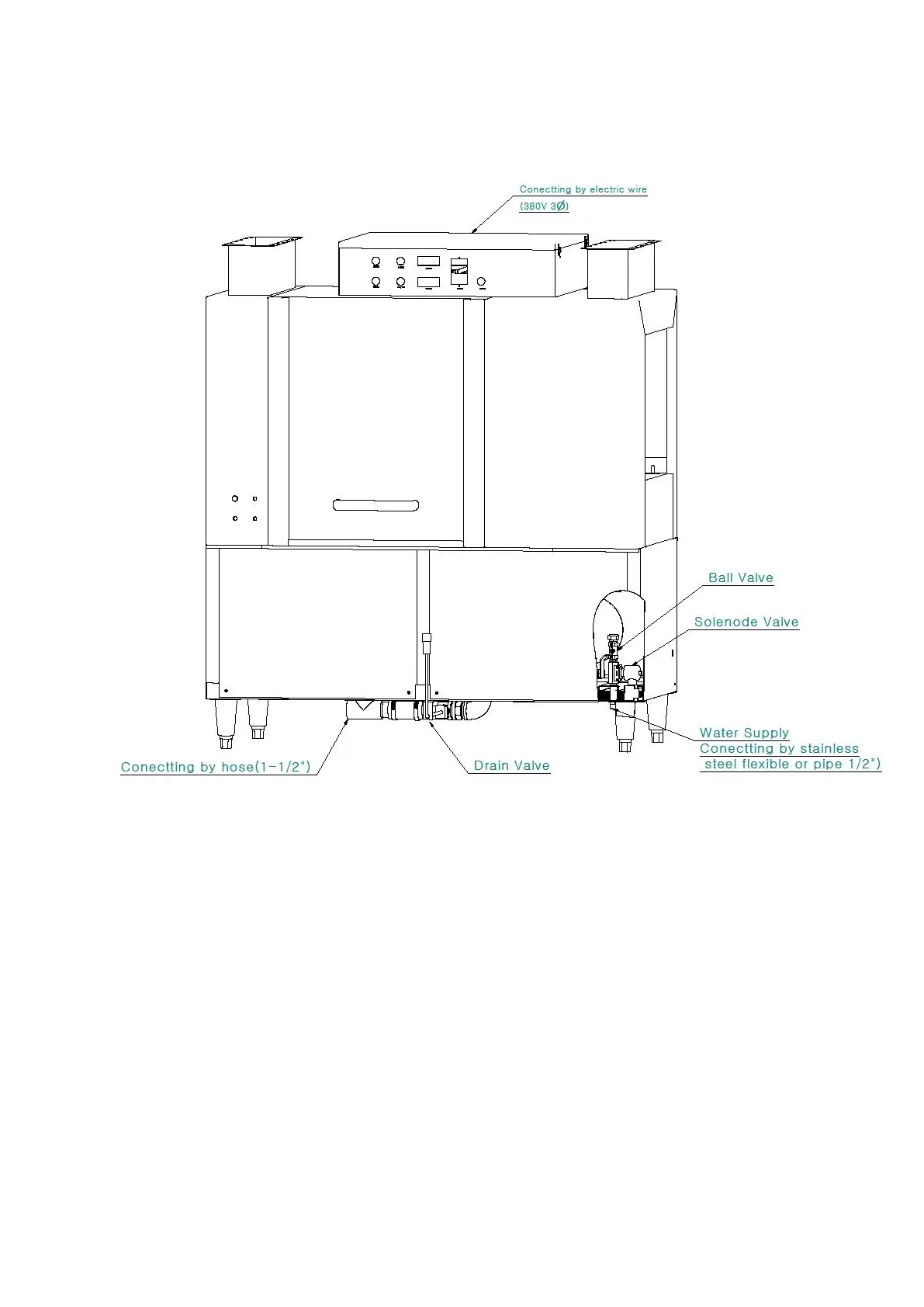

2) How to install the dishwasher
◎ Level the dishwasher in using adjustable feet
◎ Connect the cable to terminal bloc in order
◎ Be sure to confirm the elec. spec's, 380V, 3Ph, 4wired
◎ Connect the rinse aid hose to check valve
