DOM ELS Access Manager V8 - LED Indicators ELS Devices V8

Description
22

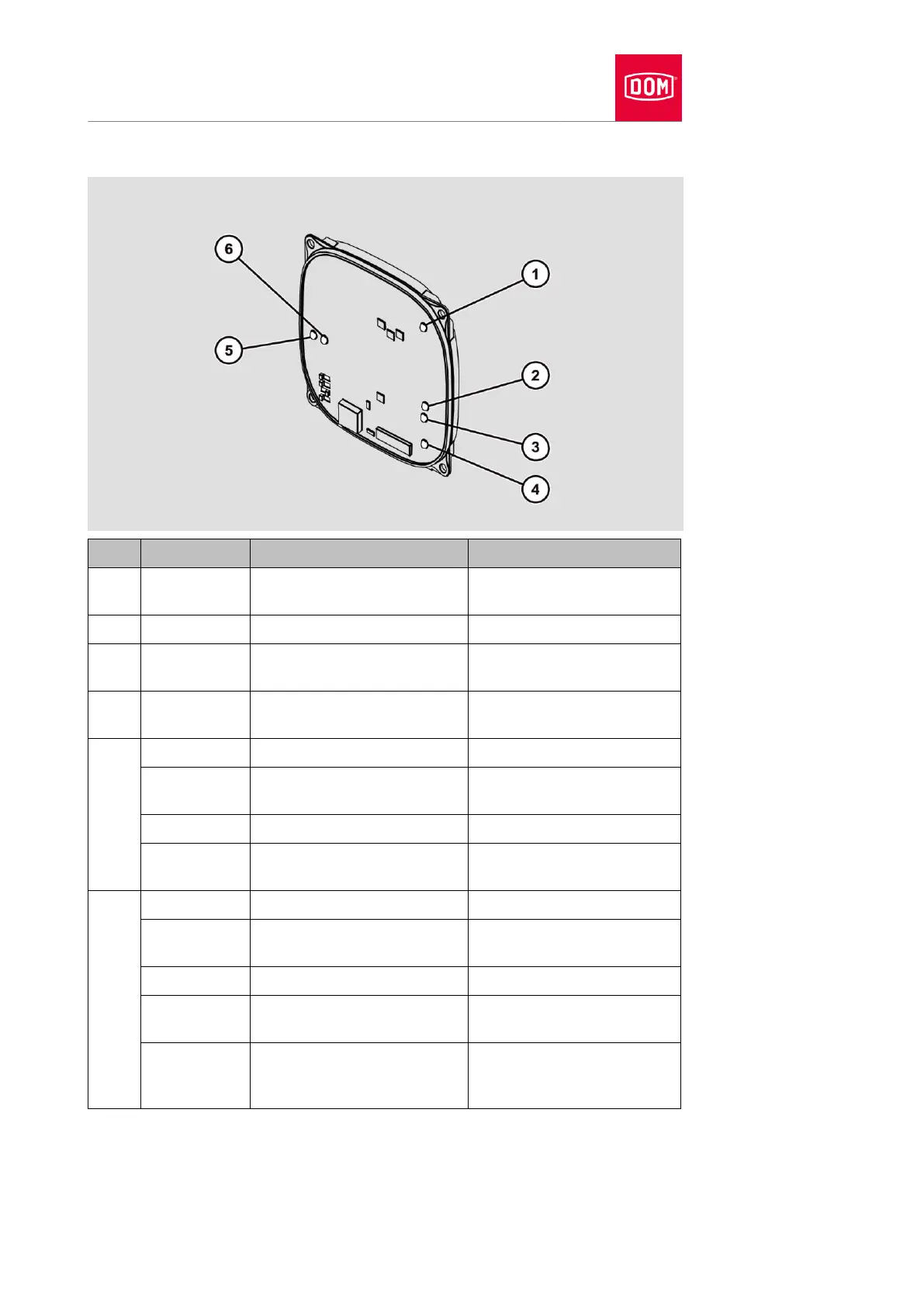

LED indicators ELS devices V8
LED
Colour
RF Net Manager function
Access Manager function
1
Multicoloured
Signalling in accordance with
access control
Signalling in accordance
with access control
2
Orange
Ready for operation
Ready for operation
3
Green
Ethernet connected,
connection available
Ethernet connected,
connection available
4
Multicoloured
Signalling in accordance with
access control
Signalling in accordance
with access control
5
Red
Ethernet, data sent
–
Green
Ethernet ready to receive
(standby)
Connection to reader 3
Off
Ethernet, data received
No connection to reader 3
Flashing red
Ethernet not configured or
not connected
–
6
Red
Wireless, data sent
Connection to reader 1
Green
Wireless ready to receive
(standby)
Connection to reader 2
White
Wireless, data received
–
Yellow
Wireless, data received
Connection to reader 1 and
2
Off
Wireless is configured, for a
longer period: Wireless is
defective or deactivated.
No connection to reader 1
and 2
