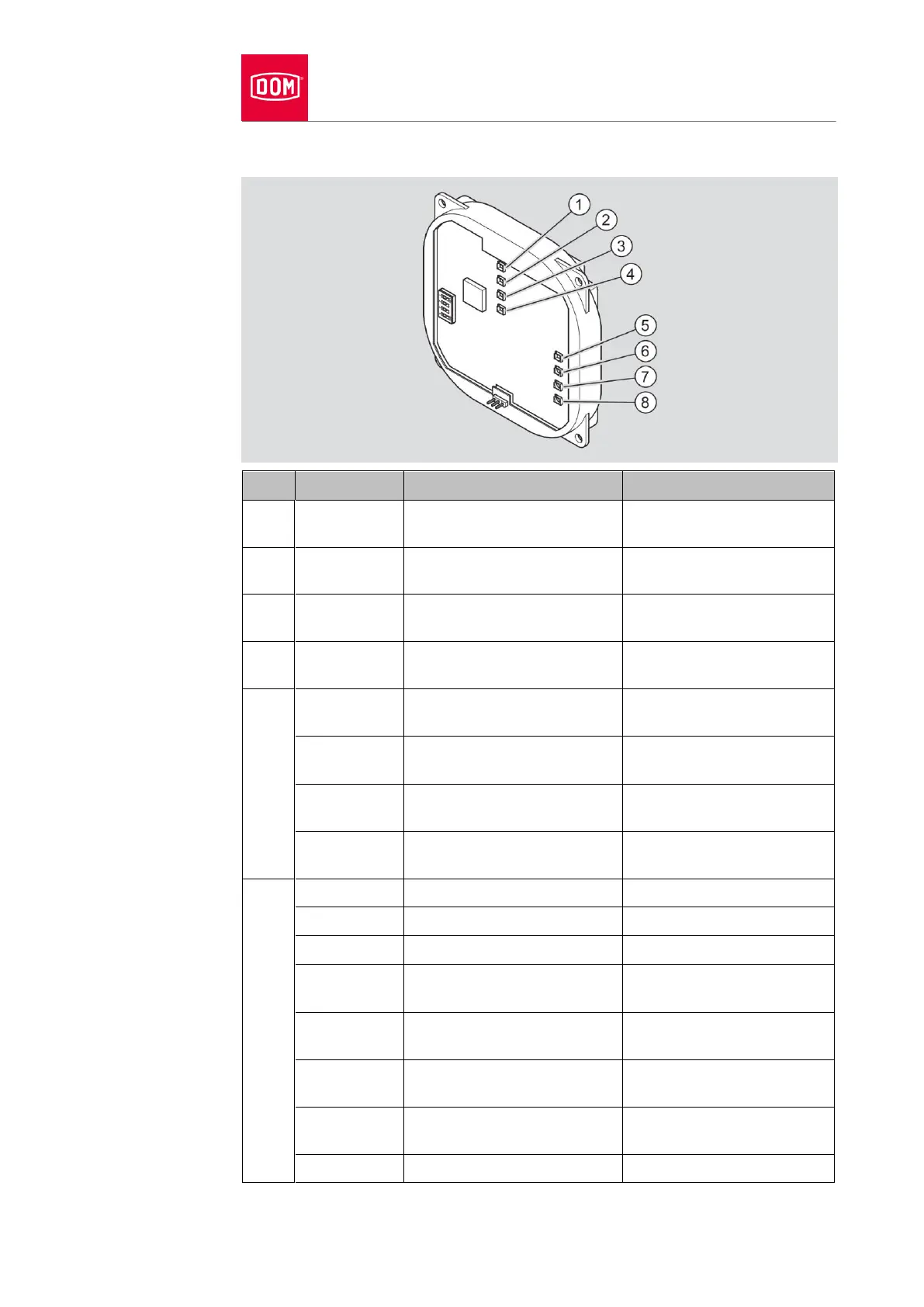

LED indicators ENiQ devices V2
23
LED indicators ENiQ devices V2
LED
Colour
RF Net Manager function
Access Manager function
1
Multicoloured
Signalling in accordance with
access control
Signalling in accordance
with access control
2
Multicoloured
Signalling in accordance with
access control
Signalling in accordance
with access control
3
Multicoloured
Signalling in accordance with
access control
Signalling in accordance
with access control
4
Multicoloured
Signalling in accordance with
access control
Signalling in accordance
with access control
5
Blue
Device transmits advertising.
Device transmits
advertising.
Green
Device is connected via BLE.
Device is connected via
BLE.
White
Device receives data via
BLE.
Device receives data via
BLE.
Off
BLE interface
deactivated/not to be used
BLE interface
deactivated/not to be used
6
Red
–
Connection to reader 1
Green
–
Connection to reader 2
Blue
–
Connection to reader 3
Yellow
–
Connection to reader 1 and
2
Violet
–
Connection to reader 1 and
3
Turquoise
–
Connection to reader 2 and
3
White
–
Connection to reader 1, 2
and 3
Off
–
No connection to readers
