Installing an external reader and connecting it to Access Manager
(control unit)
75
Connecting Siedle and RITTO PORTIER to the Access Manager or Access Manager
Terminal (control unit)

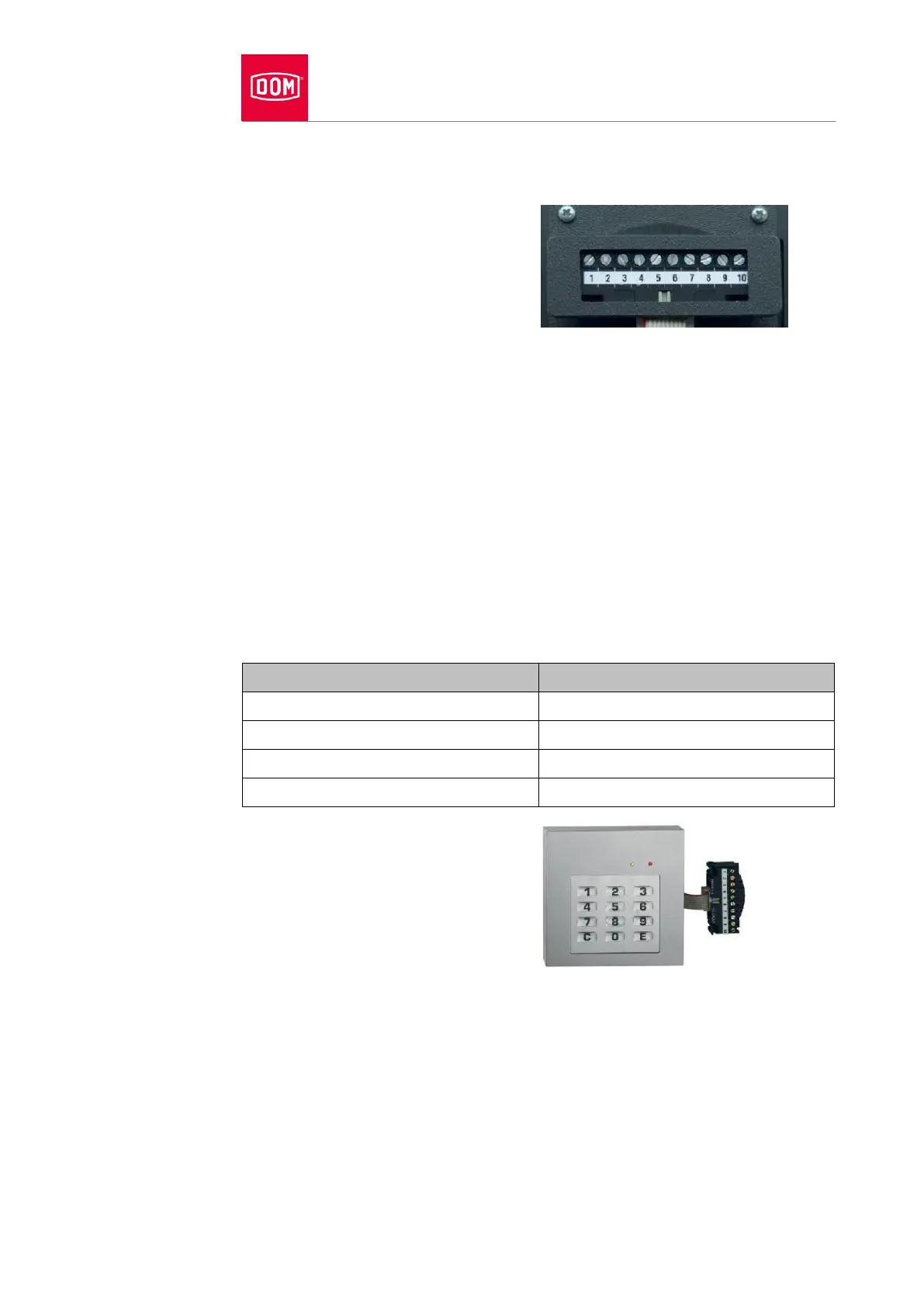

The 10-pole connecting terminal for
the readers of the following ENiQ
®
Module Reader variants:
 Siedle (for installation in a Siedle
Vario 611 system)
 Baudisch (for installation in a
Baudisch system)
 Behnke (for installation in a
Behnke system)
 ELCOM (for installation in an
ELCOM system)
 RITTO ACERO (for installation in
a RITTO ACERO system)
 RITTO PORTIER (for installation
in a RITTO PORTIER system)
These readers are connected to the ENiQ Module Reader/Module Reader
Terminal via the following terminals:
External reader
Control unit (ACM/ACM-T)
Terminal 1 / +Ub
Terminal 7 / 12–24 V
Terminal 2 / GND
Terminal 8 / GND
Terminal 3 / Data “A”
Terminal 18 / RxD / A
Terminal 4 / Data “B”
Terminal 19 / TxD / B
 Fit the connection cable from the
reader module onto the
connecting terminal.
