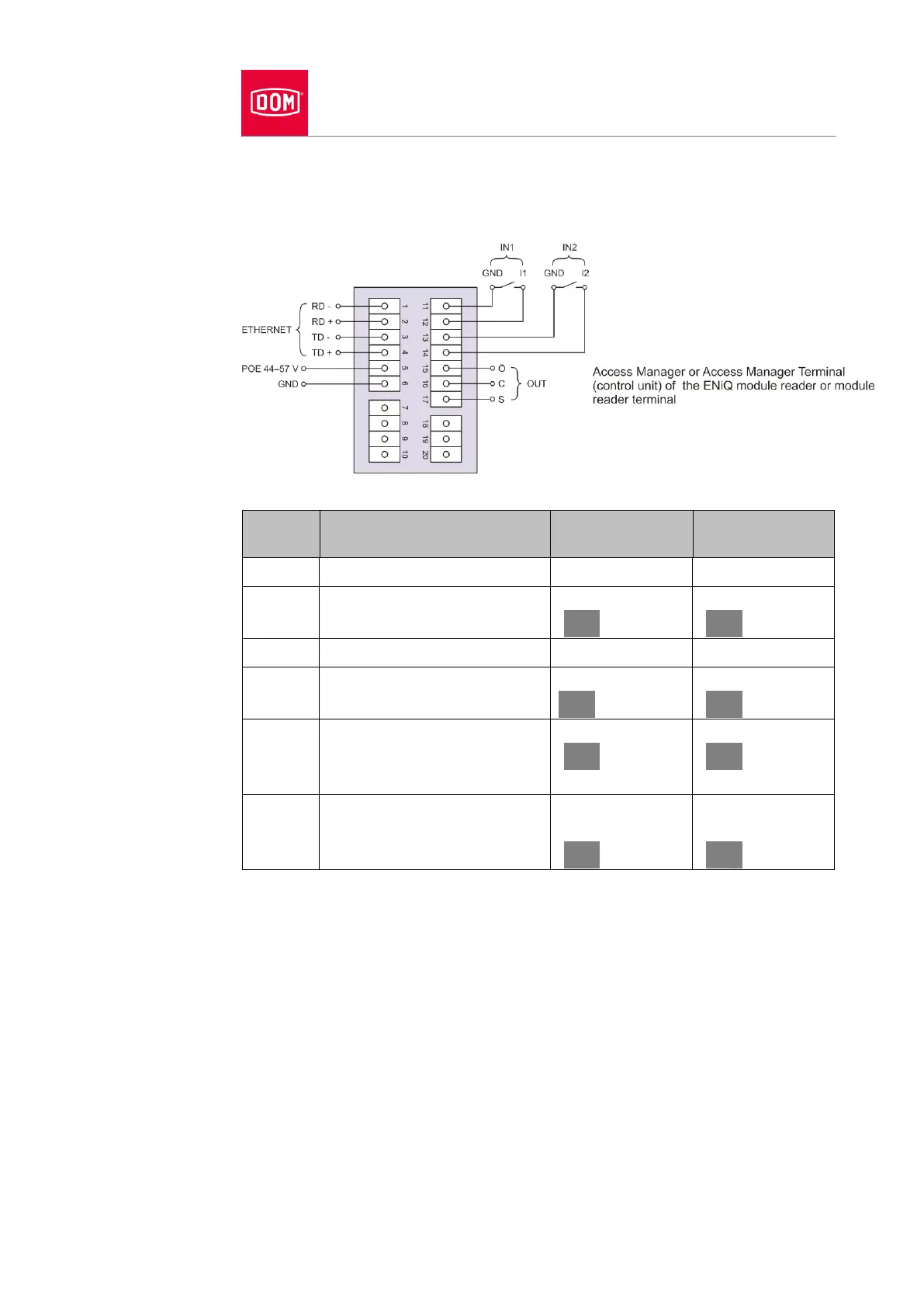

Connecting the Access Manager or Access Manager Terminal
(control unit) of the ENiQ module reader or module reader terminal
to the network and the power supply
91
When using PoE via a “Mid-Span Device” (PoE injector) it is also necessary to
connect wires 7 and 8 of the Ethernet cable to terminal 5 of the DOM device
and wires 4 and 5 of the Ethernet cable to terminal 6.
Terminal
Signal
Ethernet standard
EIA/TIA-T568A
Ethernet standard
EIA/TIA-T568B
1
RD–: Ethernet
Wire 6 (orange)
Wire 6 (green)
2
RD+: Ethernet
Wire 3
(white/orange)
Wire 3
(white/green)
3
TD–: Ethernet
Wire 2 (green)
Wire 2 (orange)
4
TD+: Ethernet
Wire 1
white/green)
Wire 1
(white/orange)
5
SPA: Ethernet PoE
Wire 7
(white/brown)
Wire 8 (brown)
Wire 7
(white/brown)
Wire 8 (brown)
6
SPB: Ethernet PoE
Wire 4 (blue)
Wire 5
(white/blue)
Wire 4 (blue)
Wire 5
(white/blue)
