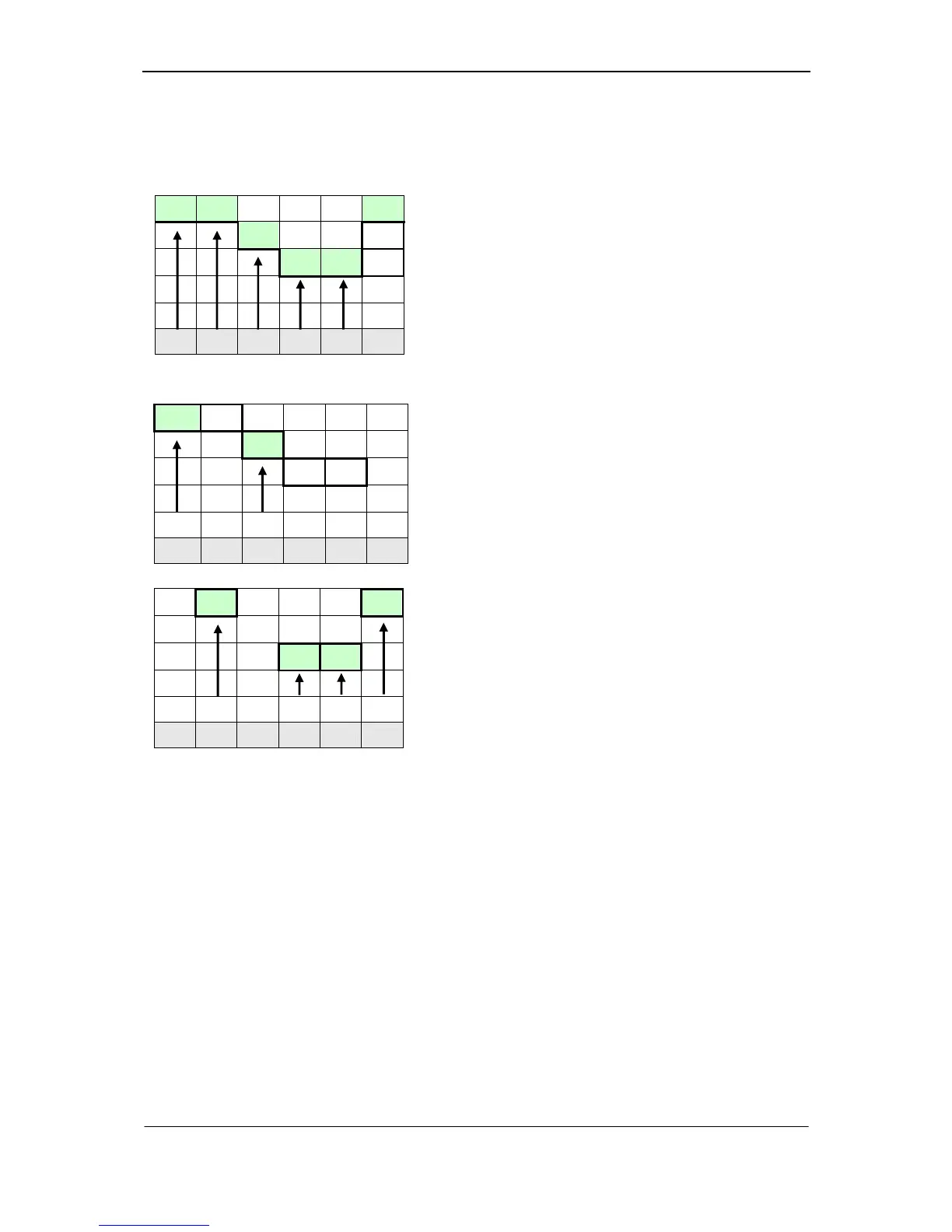

Assembly with masterkey wafers
Body pins
4 5 1 2 3 5
3 4 5
6 7
P1 P2 P3 P4 P5 P6
4 5 1 2 3 5
3 4 5
6 7
FB N FB N N N
P1 P2 P3 P4 P5
P6
4 5 1 2 3 5
3 4 5
6 7
FB N FB N N N
P1
P2
P3
P4 P5 P6
For assembly superstructures with masterkey
wafers the highest plate structure determines the
body pin as stated in the lower cells of the re-
spective columns.
1.) At first the two FB-body pins are inserted at
the positions P1 – P5 with the lowest val-
ues in the lowest cells.
(here: position P1=value 4 and P3=value 3)
2.) N-pins are inserted at the remaining posi-
tions P2, P4, P5 and P6.
