Caution! Material defects caused by improper insertion of the follower! If
the follower is inserted too far/not far enough into the cylinder body the
compression springs might be damaged.
Note! When mounting type KL you must assemble the long side,first.

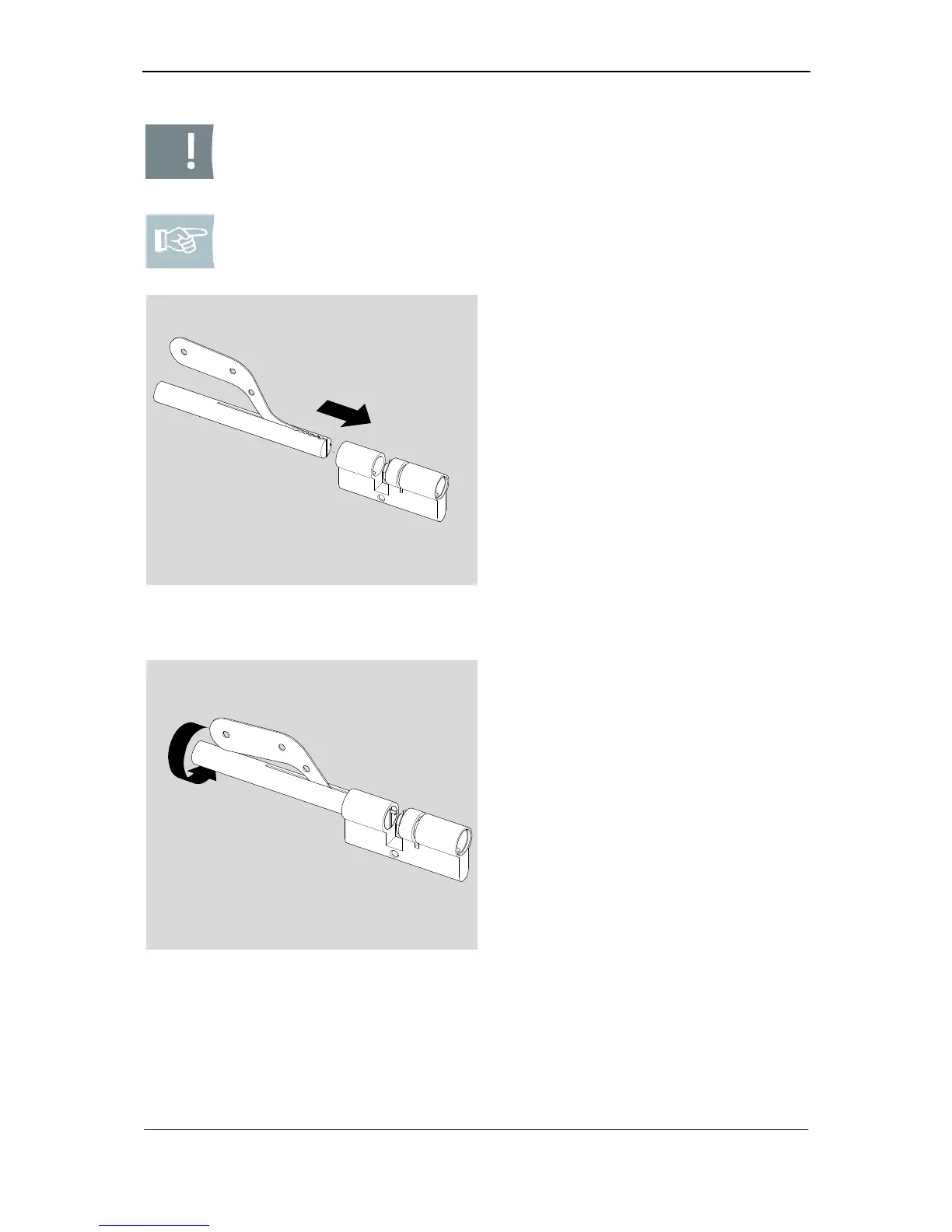

Fig. 5: Insert follower together with
loading knife into the cylinder body
6. Please insert the follower incl.
loading knife carefully into the cyl-
inder body to such an extent until
the front edge of the follower pro-
vides approx. flush fit with the in-
ternal body edge (base length 30
mm) or the retainer ring device (ex-
tended version).
Springs and pins overlap the boring in
the cylinder body a little.
180°
Fig. 6: Turning follower together with load-
ing knife
7. Please turn follower incl. knife to
such an extent until the mounting
is positioned over the borings in
the cylinder body.
