Assembly / Filling of cylinder core / Masterkey wafers
22
Masterkey wafers
MK wafers are used to permit locking variations in accordance with the specified
locking plan. A lock cylinder without MK wafers can only be locked by one key, while
a lock cylinder with MK wafers can be locked by different keys.
You can use the figures in the cylinder assembly fittings table to identify which and
how many MK wafers you must use. The figures that are listed vertically beneath a
core pin number (in grey) tell you which gradations are required for the relevant core
pin in the cylinder.
As can be seen from the table, a double gradation (MK gradation) is always allowed
for each pin position in locking systems. Once defined, the relevant even (0, 2, 4, 6)
or odd (1, 3, 5, 7) value for each pin position cannot be changed. The mounting di-
rection of the MK wafers is not important.

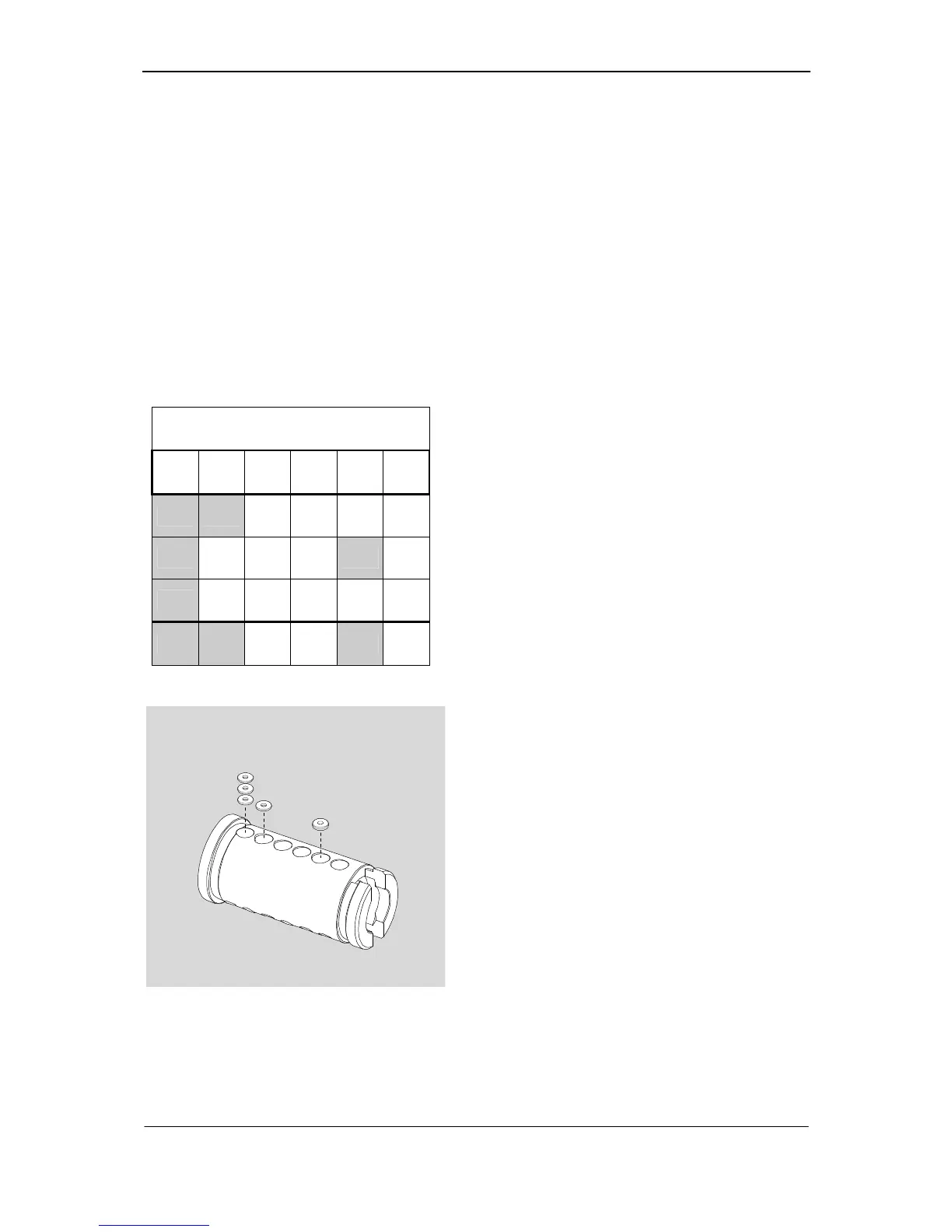

MK wafers
0 3 1 4 1 6
2 5
4 5
6
P1 P2 P3 P4 P5 P6
Fig. 14: Masterkey wafers
MK wafers are
0.8 mm, 1.6 or 2.4 mm long.
One MK gradation corresponds to 0.8 mm.
Here:
You must place 3 MK wafers
( 2,4,6 ) on the first core pin (0).
As there is one MK gradation between
each of the figures (
0-2; 2-4; 4-6 ), you
must insert
3 MK wafers with a length of
0.8 mm
here.
On the second
core pin (3) you must in-
sert
1 MK wafer with a length of 0.8 mm
(one MK gradation
3-5 ).
Do not place
any MK wafers on the third
(1) and fourth core pin (2)
in this case.
You must place
1 MK wafer 1.6 mm long
on the
fifth core pin (1), as there are two
MK gradations here (
1-5 ).
Please do not add any
HS discs to the
sixth core pin (6) in this case.
