2 5 089B
4
5
6
Type and number of the profile control
pins can be identified from the specifica-
tion of the profile in the assembly super-
structure.
1
2
3
4
5
A
6
7
8
9
0
B

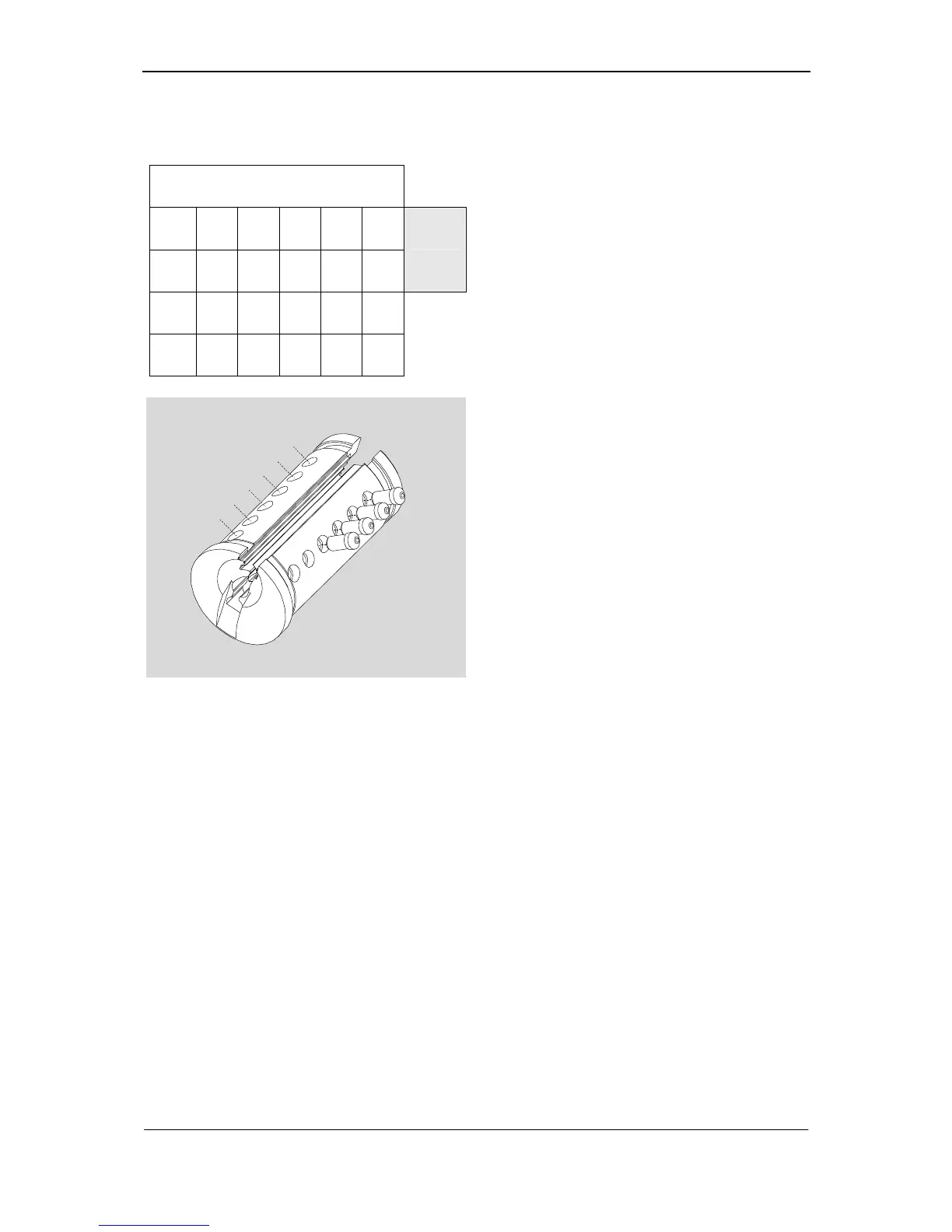

Fig. 15: Numbering of profile pins
Borings for profile control pins are num-
bered:
Left: 1, 2, 3, 4, 5, A
Right: 6, 7, 8, 9, 0, B
Sample: 0,8,9,B
1. Please insert the respective profile
control pins into the boring with tip
ahead and make sure they do not fall
out.
