Dometic8700 Installing the awning
9
6.2 Installing the awning

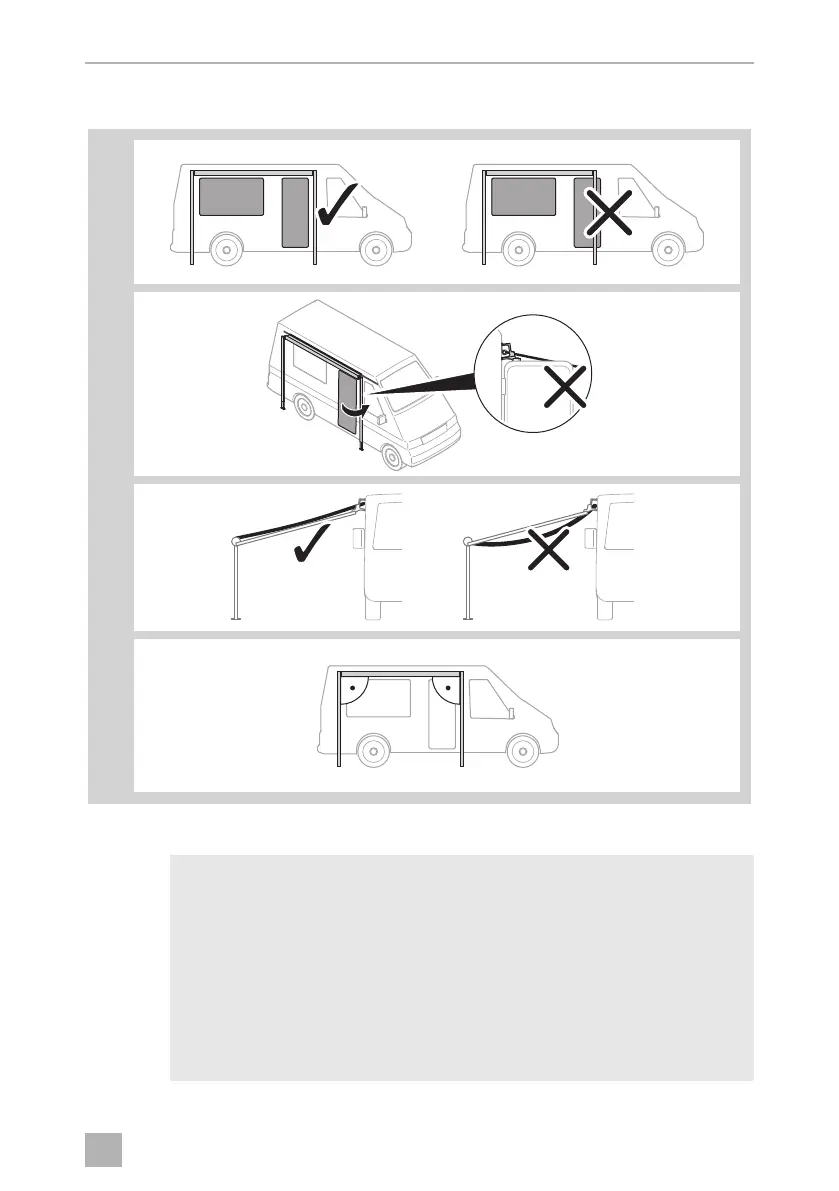

➤ Proceed as shown to install the awning (fig. 4, page 10 to fig. f, page 17).
I
NOTE
• The awning length is set to suit the Dometic 8300 awning length.
• Any adjustment to the Dometic 8500 awning length must be made
before installing the awning.
• Adjust the RH top casting to outer hole (fig. 4, page 10) to fit the
Dometic 8500 awning length.
• The LH top casting does not require adjustment.
•The pin (fig.4, page 10) has a special shape with steps on one end.
Ensure to insert this end into the shaft first.
