ADJUSTMENTS
B. Adjusting The Awning Open/Close Limits

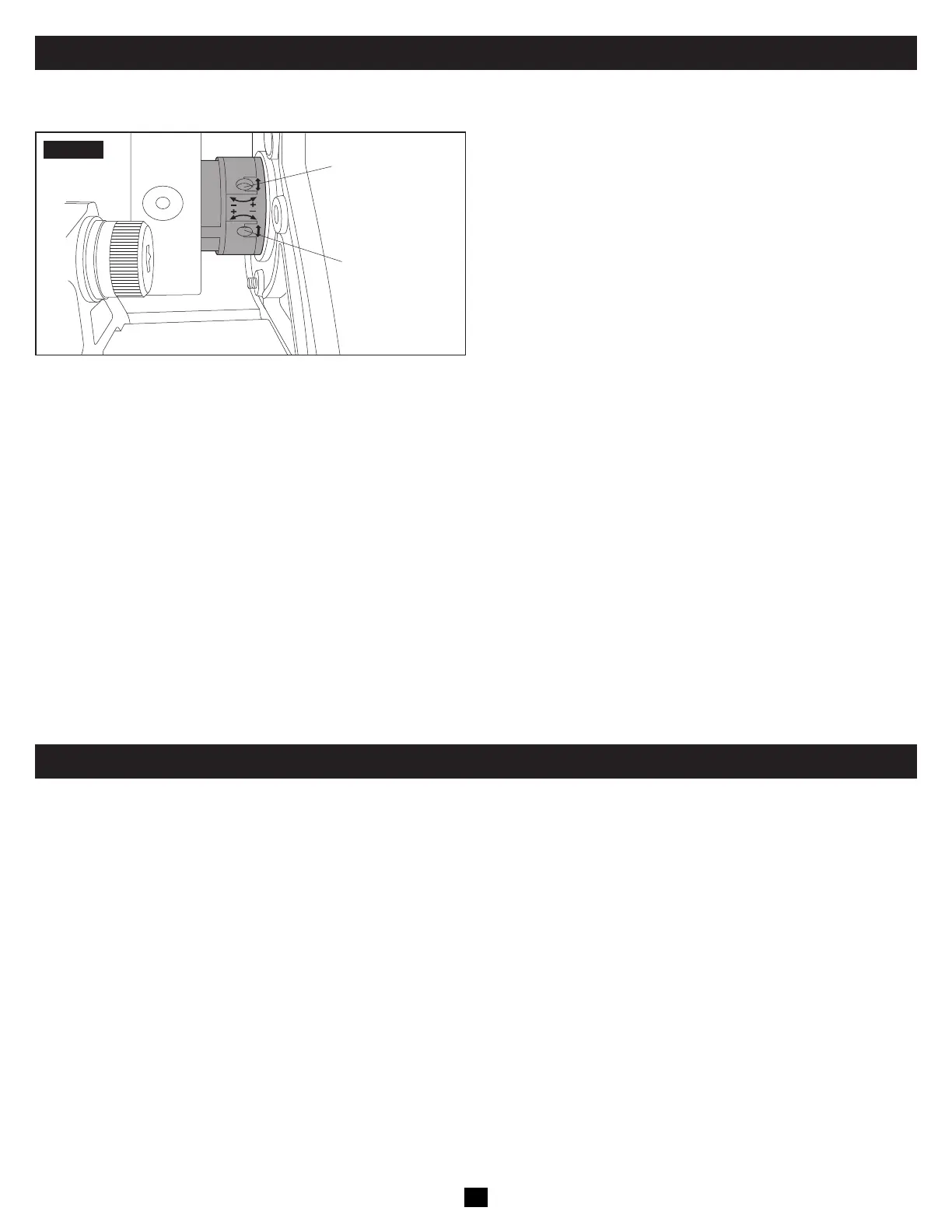

STEP1
Extension
Adjustment Screw
Retraction
Adjustment Screw
LH End (Bottom)
• To adjust the awning so the front rail fits tightly against the
case when the awning is fully closed:
• Turn the retraction adjustment screw clockwise for less
awning retraction.
• Turn the retraction adjustment screw counterclockwise for
more awning retraction.

The motor should turn off and stop turning when the awning
is fully closed. If the motor continues turning aer the awning
closes, damage to the motor or awning components may
occur.
• To adjust the awning so the fabric is not overly taut or sagging
when the awning is fully open:
• Turn the extension adjustment screw clockwise for less
awning extension.
• Turn the extension adjustment screw counterclockwise for
more awning extension.
MAINTENANCE
Failure to obey the following notices could damage product or property:
• Do NOT use insecticides or other sprays near the awning fabric. These could cause stains, and could adversely affect the fabric’s ability to
repel water.
• Do NOT expose the awning to adverse environmental conditions, corrosive agents, or other harmful conditions.
• Do NOT allow the corner of the entry door to contact the awning fabric. Otherwise, premature wear or tearing of awning fabric could
occur.
• NEVER close the awning (for storage) when wet. The combination of moisture and dirt could result in mildew, discoloration, and stains. If
it is necessary to roll up awning (temporarily) while wet, make sure you roll it out and let it dry (as soon as conditions allow) before rolling it
up again.
• Do NOT allow dirt, leaves, or other debris to accumulate on the awning, which could cause abrasion and stains. Mildew could grow on
dirt and organic debris, causing permanent discoloration, stains, and odors to the awning fabric.
• Do NOT use rechargeable batteries (NiMH, NiCD, etc.). Disposable Lithium or Alkaline batteries are recommended. Do not mix battery
types.
• Make sure battery polarity is matched correctly to battery compartment.
