The unit must not be installed more than 5 degrees out of level fore / aft.
The 240 V 50Hz power supply must be protected with a 15 Amp circuit breaker.
Installation:

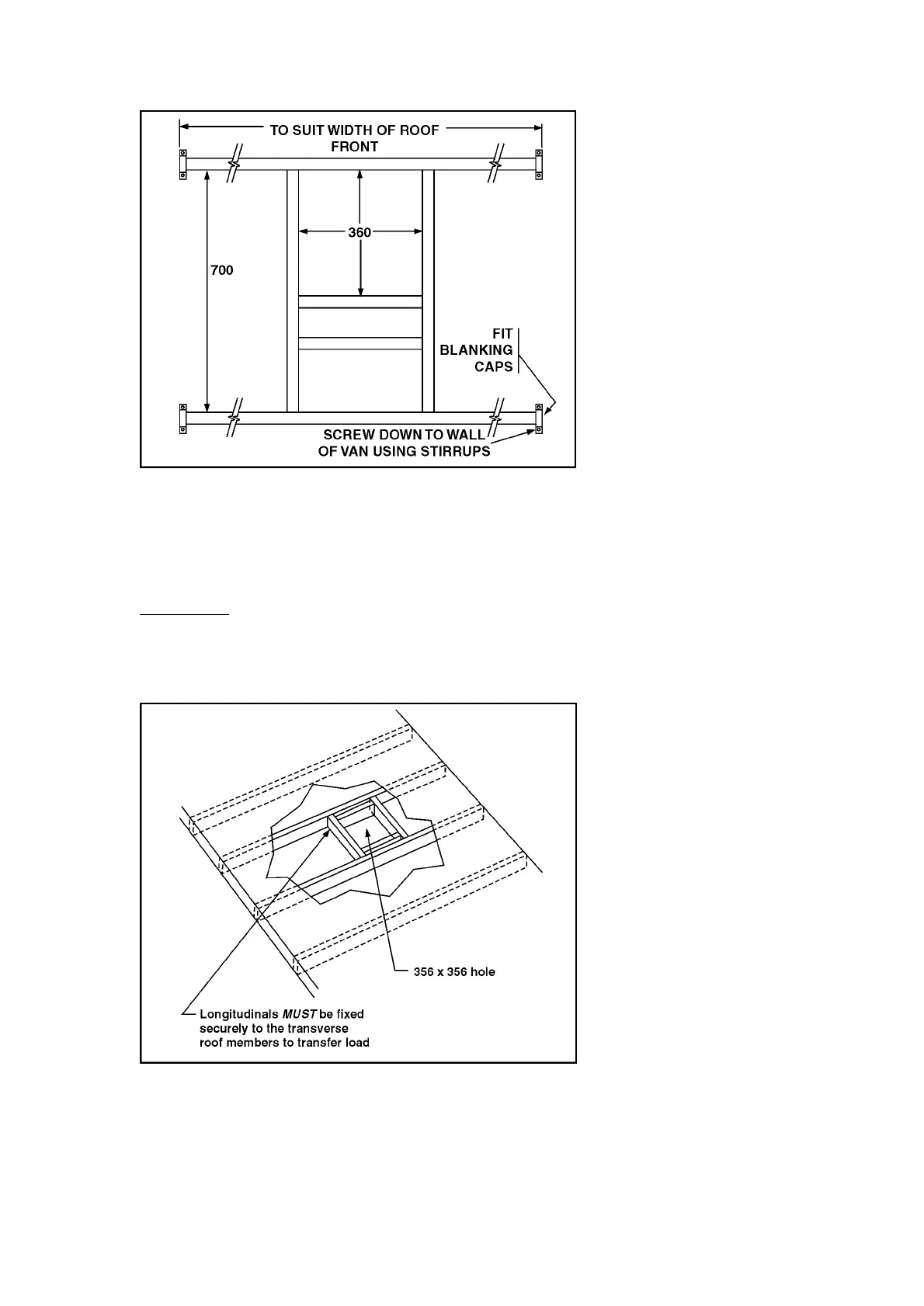

The unit requires a 356mm square hole (14” x 14” ). This hole must be boxed
up all around and be structurally integral with the transverse roof members. The
boxing up must isolate the airconditioner return air from the ceiling space. See Fig.3
Fig 3
The power cable ( 7/050 twin & E ) can be entered on any side of this square hole
for connection to the power inlet block.
